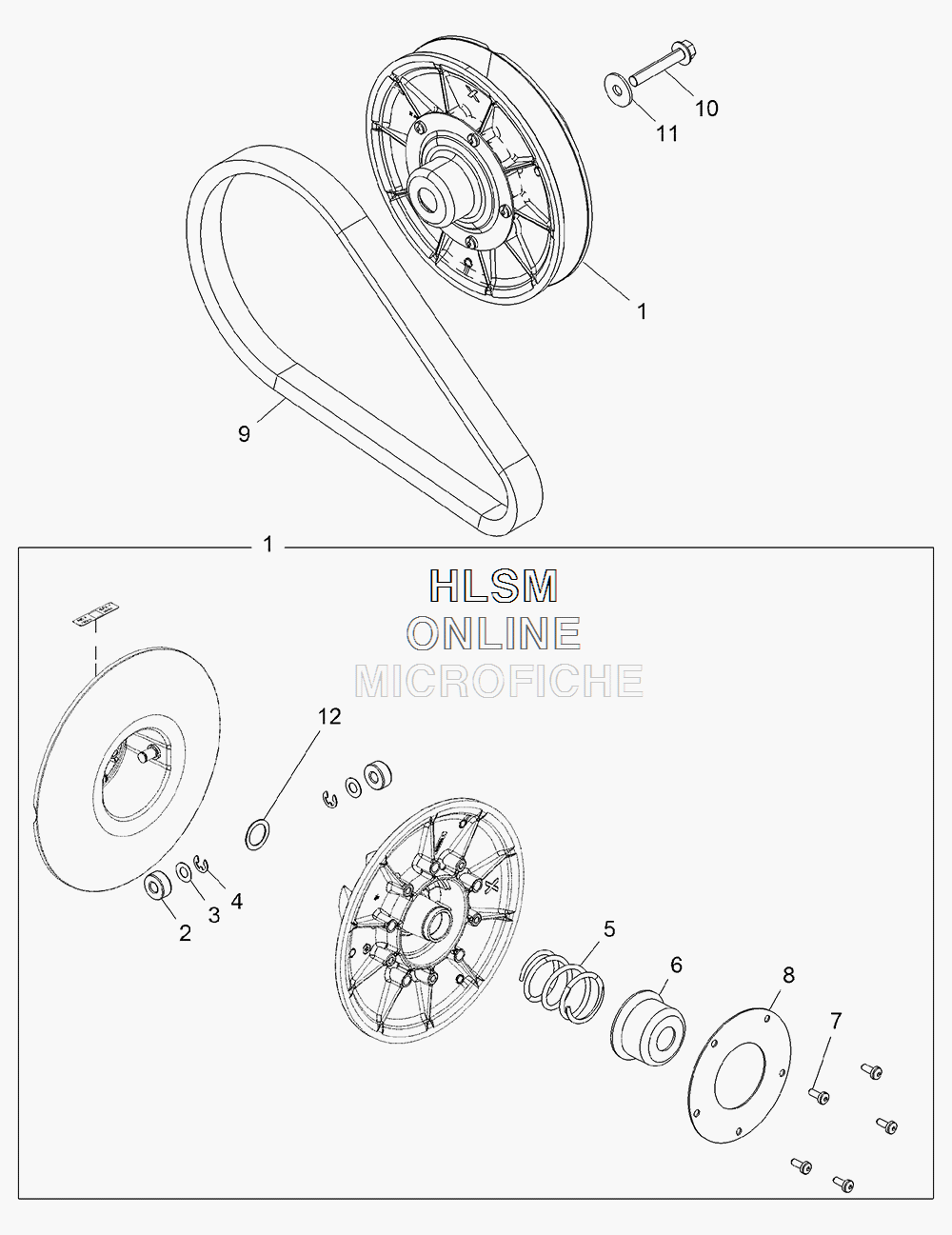

CLUTCH- SECONDARY для Polaris RANGER 570 (SAGE GREEN) [RMA57A1] - 2016 года выпуска
-
№АртикулНазвание
-
11323119 ASM.,CLUTCH, DRIVEN (INCL. 1-8)ASM.,CLUTCH, DRIVEN (INCL. 1-8)
-
25439831 ROLLER, CLUTCHROLLER, CLUTCH
-
37556226 WASHER, THRUSTWASHER, THRUST
-
47710523 RING, RETAININGRING, RETAINING
-
57044015 SPRING, COMPRESSIONSPRING, COMPRESSION
-
65256403 CUP, SPRING BOSSCUP, SPRING BOSS
-
77519735 SCREWSCREW
-
85258673 PLATE, RETAINERPLATE, RETAINER
-
93211169 BELT-DRIVEBELT-DRIVE
-
107519210 SCREWSCREW
-
117555846 WASHER, FLATWASHER, FLAT
-
127556745 WASHER, THRUSTWASHER, THRUST
-
127556483 WASHER, THRUST (OPT. FOR ALIGNMENT OF CLUTCH)WASHER, THRUST (OPT. FOR ALIGNMENT OF CLUTCH)
