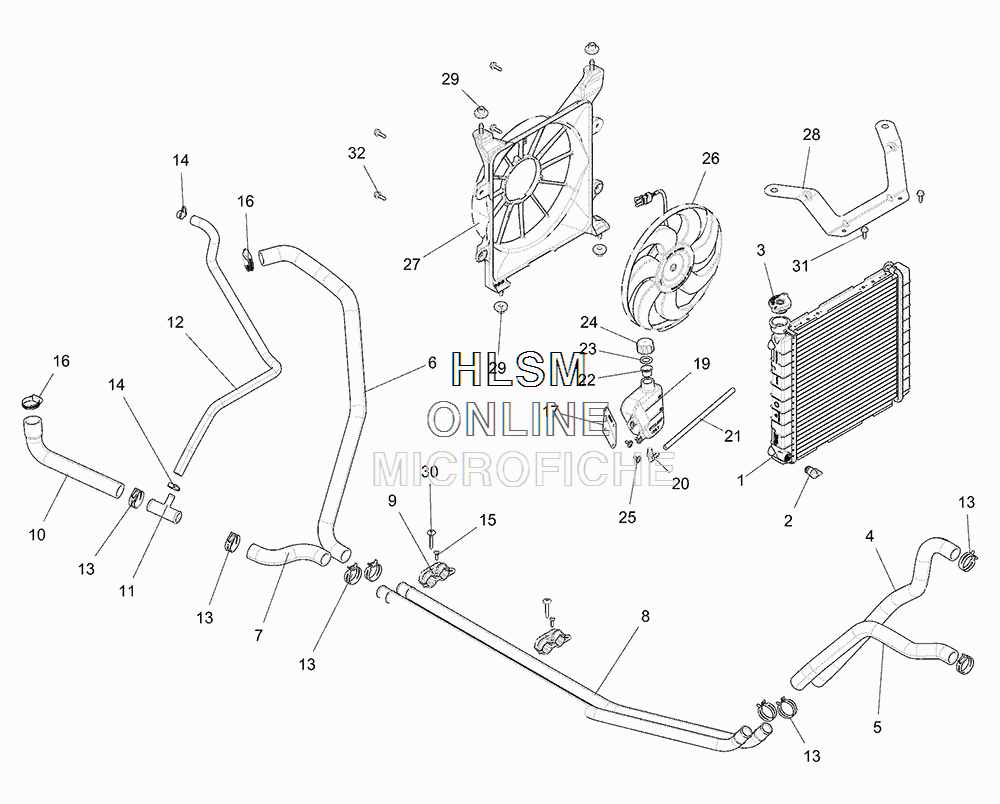

COOLING SYSTEM для Polaris RANGER 570 (SAGE GREEN) [RMA57A1] - 2016 года выпуска
-
№АртикулНазвание
-
15436936 TANK, SURGETANK, SURGE
-
27052065 FITTING, 90 DEGFITTING, 90 DEG
-
35433774 PLUG, CAPPLUG, CAP
-
45254763 BRACKET, SURGE TANKBRACKET, SURGE TANK
-
55430743 CAP, OVER FLOW BOTTLE, DRILLEDCAP, OVER FLOW BOTTLE, DRILLED
-
68450003-1525 LINE, FUELLINE, FUEL
-
75810279 GASKET, OVERFLOW CAPGASKET, OVERFLOW CAP
-
87512084 SCREWSCREW
-
95414162 HOSE, BYPASS, 1 INCH, FORMEDHOSE, BYPASS, 1 INCH, FORMED
-
105414590 HOSE, BYPASS, 1/2 INCH, FORMEDHOSE, BYPASS, 1/2 INCH, FORMED
-
117052530 CONNECTOR, TEECONNECTOR, TEE
-
127081026 CLAMP, HOSECLAMP, HOSE
-
137080843 CLAMP, SPRINGBAND, BROWNCLAMP, SPRINGBAND, BROWN
-
145415526 HOSE, LOWER, RADIATORHOSE, LOWER, RADIATOR
-
155415053 HOSE, ENGINE OUTLET, REARHOSE, ENGINE OUTLET, REAR
-
165415054 HOSE, LOWER, ENGINE, SHORTHOSE, LOWER, ENGINE, SHORT
-
177518529 SCREWSCREW
-
181240899 CAP, PRESSURECAP, PRESSURE
-
195415269 HOSE, UPPER, RADIATORHOSE, UPPER, RADIATOR
-
207052028 GROMMET-FLANGED,.36X.56X1.06GROMMET-FLANGED,.36X.56X1.06
-
217052617 VALVE, PLASTIC RADIATOR/COOLER DRAINVALVE, PLASTIC RADIATOR/COOLER DRAIN
-
222413196 ASM., FAN, SHROUDASM., FAN, SHROUD
-
235451221 BRACKET, COOLANT TUBEBRACKET, COOLANT TUBE
-
245452163 SHROUD, FANSHROUD, FAN
-
257081192 CLAMP, HOSECLAMP, HOSE
-
267516822 SCREWSCREW
-
277519001 SCREWSCREW
-
285139239 TUBE, COOLANTTUBE, COOLANT
-
291240955 ASM., RADIATOR, COREASM., RADIATOR, CORE
-
307080474 CLAMP, HOSECLAMP, HOSE
-
317512026 SCREWSCREW
-
325260846-458 BRKT-RAD MNT, BLACKBRKT-RAD MNT, BLACK
