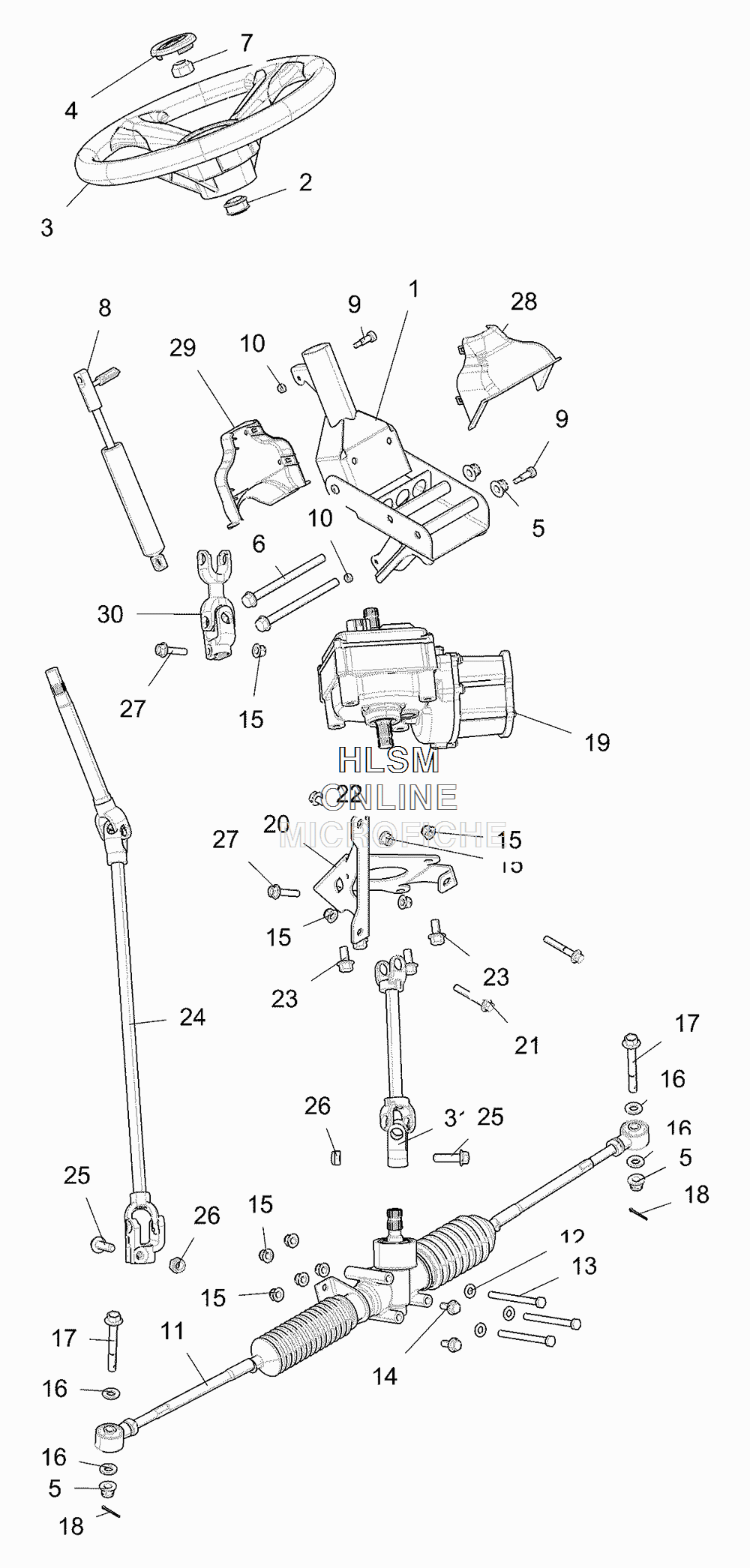

STEERING ASM. для Polaris RANGER 570 (SAGE GREEN) [RMA57A1] - 2016 года выпуска
-
№АртикулНазвание
-
11824420-458 ASM., TILT STEERING, RIVETED, MATTE BLACK (INCL. 30)ASM., TILT STEERING, RIVETED, MATTE BLACK (INCL. 30)
-
27556675 BUSHING, SHAFT, STEERINGBUSHING, SHAFT, STEERING
-
31823623 WHEEL, STEERINGWHEEL, STEERING
-
45436536 CAP, STEERING WHEELCAP, STEERING WHEEL
-
57547333 NUTNUT
-
67518665 BOLTBOLT
-
77547506 NUTNUT
-
87044098 ASM., SHOCK, OIL LOCKINGASM., SHOCK, OIL LOCKING
-
97518786 BOLT, SHOULDERBOLT, SHOULDER
-
107546703 NUTNUT
-
111824165 ASM., GEAR BOX, STEERINGASM., GEAR BOX, STEERING
-
127558402 WASHERWASHER
-
137518935 BOLTBOLT
-
147518702 BOLTBOLT
-
157547332 NUT, FLANGE, NYLOK (QTY. 10 FOR EPS)NUT, FLANGE, NYLOK (QTY. 10 FOR EPS)
-
167556099 WASHERWASHER
-
177519854 SCREWSCREW
-
187661203 PIN, COTTERPIN, COTTER
-
192413346 ASM., POWER STEERING (EPS)ASM., POWER STEERING (EPS)
-
205258708-329 BRACKET, POWER STEERING, BLACK (EPS)BRACKET, POWER STEERING, BLACK (EPS)
-
217517281 SCREW (EPS)SCREW (EPS)
-
227518514 BOLT, M8 (EPS)BOLT, M8 (EPS)
-
237518558 BOLT, M10 (EPS)BOLT, M10 (EPS)
-
241824162 SHAFT, STEERING, UPPER/LOWER (NON EPS)SHAFT, STEERING, UPPER/LOWER (NON EPS)
-
257518644 SCREWSCREW
-
267547385 NUTNUT
-
277519052 SCREW, HXFL (EPS)SCREW, HXFL (EPS)
-
285451478-070 COVER, STEERING COLUMN, UPPER, BLACKCOVER, STEERING COLUMN, UPPER, BLACK
-
295451479-070 COVER, STEERING COLUMN, LOWER, BLACKCOVER, STEERING COLUMN, LOWER, BLACK
-
301824164 SHAFT, STEERING, UPPER (EPS)SHAFT, STEERING, UPPER (EPS)
-
311824163 SHAFT, STEERING, LOWER, W/JOINT, EPAS (EPS)SHAFT, STEERING, LOWER, W/JOINT, EPAS (EPS)
