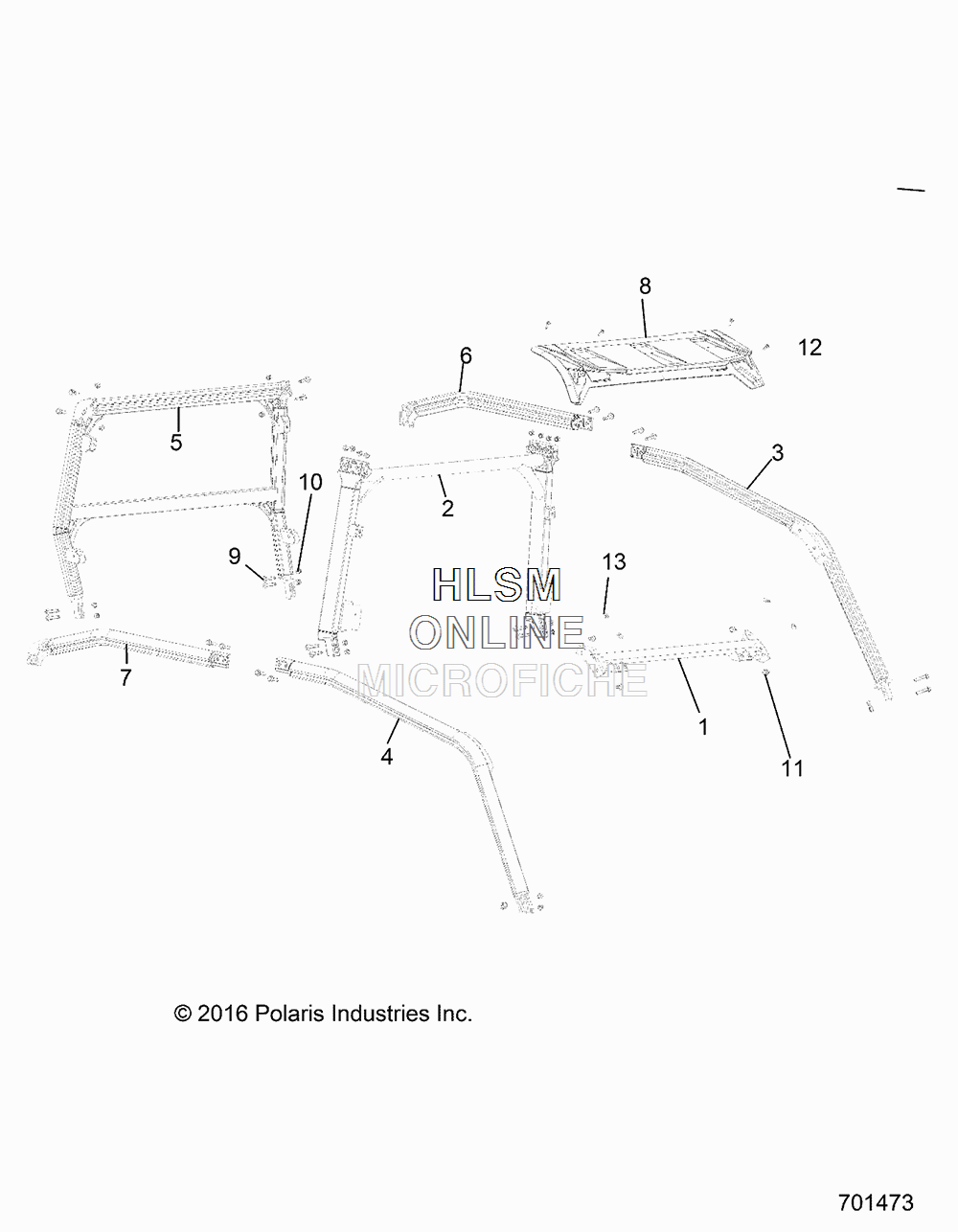

CAB FRAME для Polaris POLARIS GENERAL 1000 4P PS [R17RHE99AU] - 2017 года выпуска
-
№АртикулНазвание
-
11021280-458 WELD-ROPS, FRONT SUPPORT, (BLACK)WELD-ROPS, FRONT SUPPORT, (BLACK)
-
21022187-458 WELD-ROPS, MID, (M. (BLACK)WELD-ROPS, MID, (M. (BLACK)
-
31022183-458 WELD-ROPS, FRONT, LEFT HAND, (BLACK)WELD-ROPS, FRONT, LEFT HAND, (BLACK)
-
41022184-458 WELD-ROPS, FRONT, RIGHT HAND, (BLACK)WELD-ROPS, FRONT, RIGHT HAND, (BLACK)
-
51022293-458 WELD-ROPS, REAR, (BLACK)WELD-ROPS, REAR, (BLACK)
-
61022185-458 WELD-ROPS, REAR, LEFT HAND, (BLACK)WELD-ROPS, REAR, LEFT HAND, (BLACK)
-
71022186-458 WELD-ROPS, REAR, RIGHT HAND, (BLACK)WELD-ROPS, REAR, RIGHT HAND, (BLACK)
-
85453617-070 PANEL-VISOR, (BLACK)PANEL-VISOR, (BLACK)
-
97519906 SCR-HXFL-M10X1.5X45 10.9 RIESCR-HXFL-M10X1.5X45 10.9 RIE
-
107547746 NUT-HEX-M10X1.5 10 ZB3 NYLNUT-HEX-M10X1.5 10 ZB3 NYL
-
117519905 SCR-HXFL-M10X1.5X20 10.9 RIE PSCR-HXFL-M10X1.5X20 10.9 RIE P
-
127519650 SCR-TXTH-M6X1.0X25 RIESCR-TXTH-M6X1.0X25 RIE
-
137547674 NUT-M6-1.0, U-TYPE (2.5-3.8)NUT-M6-1.0, U-TYPE (2.5-3.8)
