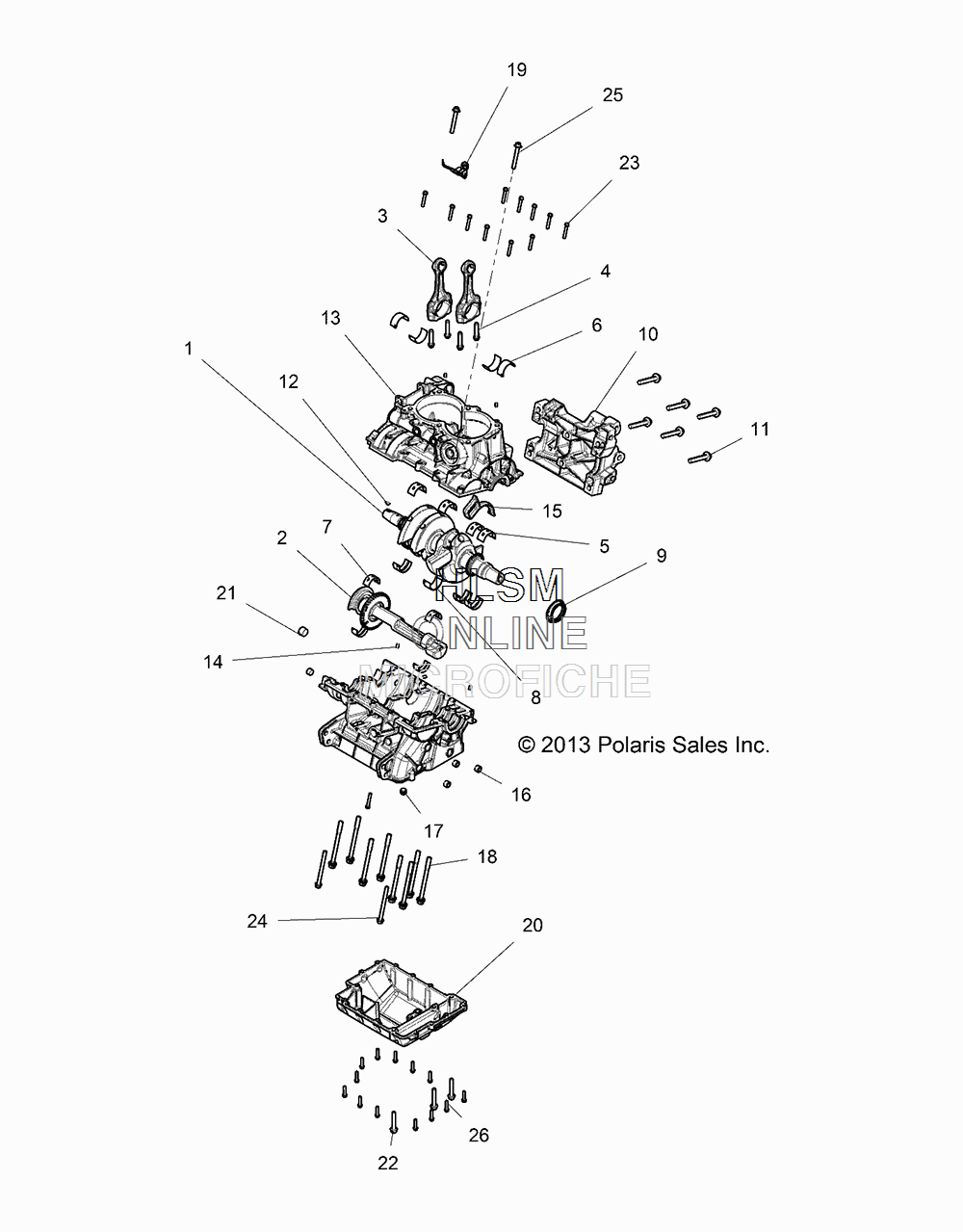

CRANKCASE AND CRANKSHAFT для Polaris POLARIS GENERAL 1000 4P PS [R17RHE99AU] - 2017 года выпуска
-
№АртикулНазвание
-
13023103 ASM., CRANKSHAFTASM., CRANKSHAFT
-
21204835 ASM., BALANCE SHAFTASM., BALANCE SHAFT
-
33023077 ASM., CONNECTING ROD [INCL. 4]ASM., CONNECTING ROD [INCL. 4]
-
47519310 SCREWSCREW
-
53514662-001 BEARING, MAIN, (WHITE)BEARING, MAIN, (WHITE)
-
53514662-002 BEARING, MAIN, (BLUE)BEARING, MAIN, (BLUE)
-
53514662-003 BEARING, MAIN, (GREEN)BEARING, MAIN, (GREEN)
-
53514662-004 BEARING, MAIN, (YELLOW)BEARING, MAIN, (YELLOW)
-
53514662-005 BEARING, MAIN, (RED)BEARING, MAIN, (RED)
-
63514663-001 BEARING, CONNECTING ROD, (WHITE)BEARING, CONNECTING ROD, (WHITE)
-
63514663-002 BEARING, CONNECTING ROD, (BLUE)BEARING, CONNECTING ROD, (BLUE)
-
63514663-003 BEARING, CONNECTING ROD, (GREEN)BEARING, CONNECTING ROD, (GREEN)
-
63514663-004 BEARING, CONNECTING ROD, (YELLOW)BEARING, CONNECTING ROD, (YELLOW)
-
73514756 BEARING, BALANCE SHAFTBEARING, BALANCE SHAFT
-
83514803-002 BEARING, MAIN, (BLUE)BEARING, MAIN, (BLUE)
-
83514803-003 BEARING, MAIN, (GREEN)BEARING, MAIN, (GREEN)
-
83514803-004 BEARING, MAIN, (YELLOW)BEARING, MAIN, (YELLOW)
-
93610176 SEAL, FLANGESEAL, FLANGE
-
105137795 BRACKETBRACKET
-
117520467 BOLTBOLT
-
127721122 KEY, WOODRUFFKEY, WOODRUFF
-
132206114 KIT, CRANKCASE [INCL. 14-19]KIT, CRANKCASE [INCL. 14-19]
-
145136879 PIN, DOWELPIN, DOWEL
-
155452616 DIVERTER, OIL DRAINDIVERTER, OIL DRAIN
-
167052413 PLUGPLUG
-
177518835 PLUGPLUG
-
187519141 SCREWSCREW
-
193022856 JET, PISTONJET, PISTON
-
205137873 COVER, SUMPCOVER, SUMP
-
217051520 PLUGPLUG
-
227517793 SCREWSCREW
-
237518578 SCREWSCREW
-
247519154 SCREWSCREW
-
257519186 SCREWSCREW
-
267519297 SCREWSCREW
