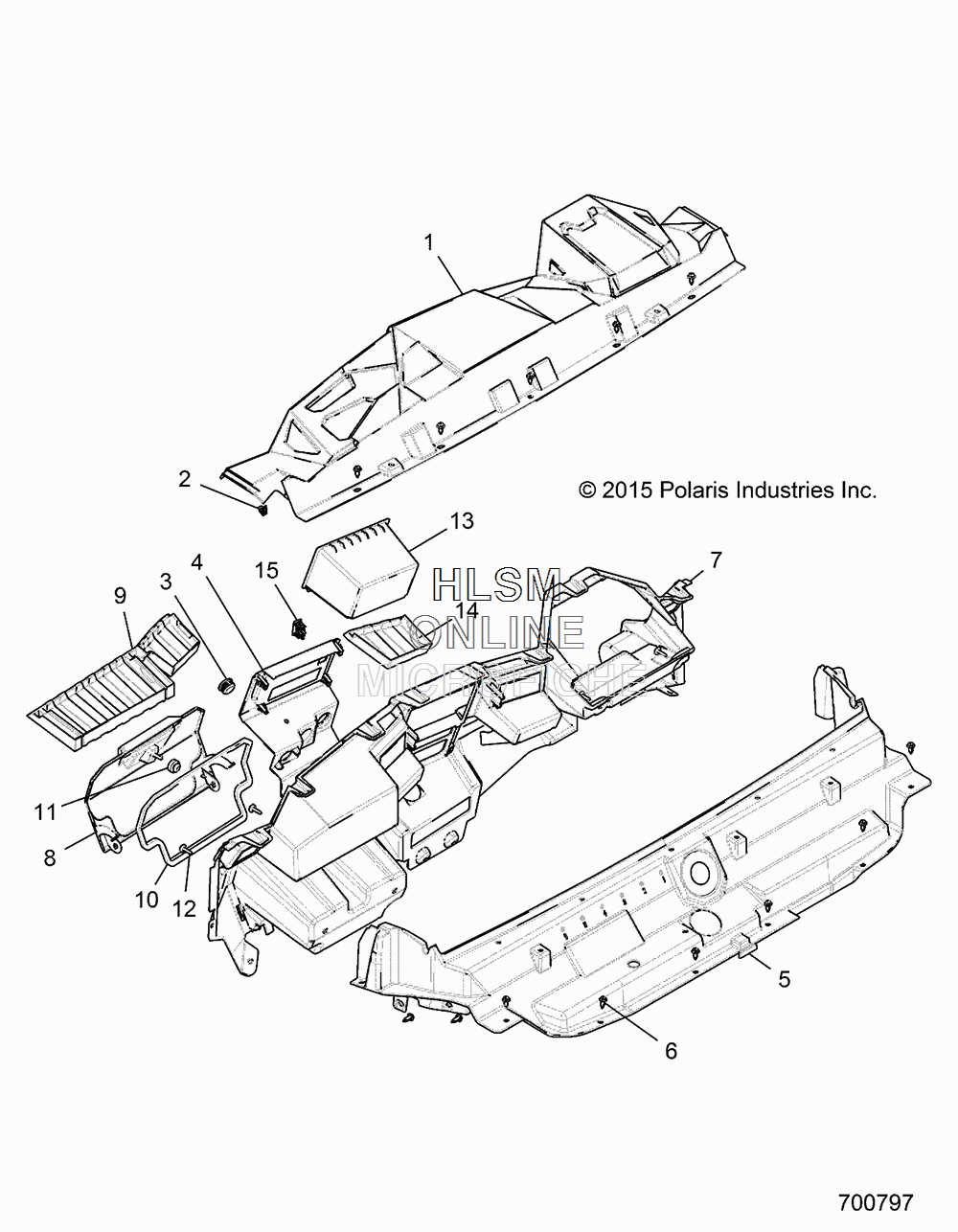

DASH AND GLOVEBOX для Polaris POLARIS GENERAL 1000 4P PS [R17RHE99AU] - 2017 года выпуска
-
№АртикулНазвание
-
12636179-070 ASM-DASH, UPPER, CLIP, (BLACK) [INCL. QTY 8 OF 2]ASM-DASH, UPPER, CLIP, (BLACK) [INCL. QTY 8 OF 2]
-
27670136 CLIP-TINNERMAN, D98640-051MCLIP-TINNERMAN, D98640-051M
-
35452552 PLUG-TUBE, 25.4MMPLUG-TUBE, 25.4MM
-
42636379-070 ASM-PNL, CONSOLE, CNTRLS, (BLACK) [INCL. QTY 4 OF 2]ASM-PNL, CONSOLE, CNTRLS, (BLACK) [INCL. QTY 4 OF 2]
-
55453313-070 PANEL-FLOOR, UPPER, FRONT, (BLACK)PANEL-FLOOR, UPPER, FRONT, (BLACK)
-
67661855 RIVET TUFLOKRIVET TUFLOK
-
75453348-070 DASH-CARRIER, MAIN, (BLACK)DASH-CARRIER, MAIN, (BLACK)
-
85452198-070 DOOR-GLOVEBOX, (BLACK)DOOR-GLOVEBOX, (BLACK)
-
95416077 TRAY-DASH, RIGHT HANDTRAY-DASH, RIGHT HAND
-
105522124 SEAL-GLOVEBOXSEAL-GLOVEBOX
-
115412504 GROMMET-RUBBER, MOUNT, .25"GROMMET-RUBBER, MOUNT, .25"
-
127519650 SCREWSCREW
-
135452197-070 DASH-STORAGE, CENTER, (BLACK)DASH-STORAGE, CENTER, (BLACK)
-
145416076 TRAY-DASH, LEFT HANDTRAY-DASH, LEFT HAND
