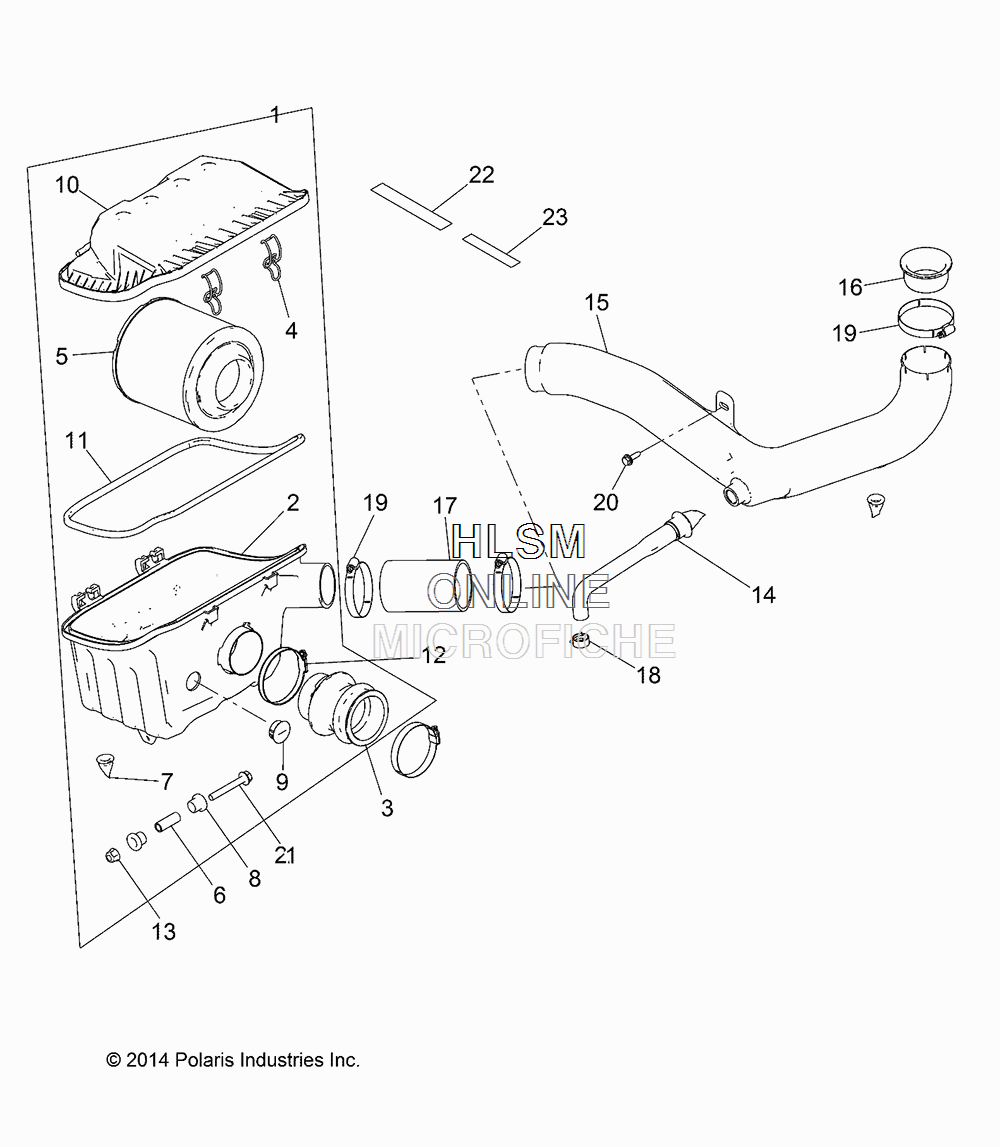

AIR INTAKE SYSTEM для Polaris RANGER 570 TR EPS MID SIZE BLUE (R18RMS57CV) - 2018 года выпуска
-
№АртикулНазвание
-
11204923 ASM., AIRBOX (INCL. 2-13, 21)ASM., AIRBOX (INCL. 2-13, 21)
-
25450174 BOX, AIR INTAKEBOX, AIR INTAKE
-
35414973 BOOT, ENGINE, INTAKEBOOT, ENGINE, INTAKE
-
47081707 CLIP, AIRBOXCLIP, AIRBOX
-
57082037 FILTER, AIRFILTER, AIR
-
65138987 SHAFT, COMPRESSION, 34.4MMSHAFT, COMPRESSION, 34.4MM
-
75414472 PLUG, DRAINPLUG, DRAIN
-
85414719 BUSHING, MOUNTBUSHING, MOUNT
-
95414780 PLUG, 1 INCHPLUG, 1 INCH
-
105450175 COVER, AIRBOXCOVER, AIRBOX
-
115814106 SEAL, AIR BOX COVERSEAL, AIR BOX COVER
-
127080707 CLAMP, BAND, NARROWCLAMP, BAND, NARROW
-
137547332 NUT, FLANGE, NYLOCNUT, FLANGE, NYLOC
-
142521911 ASM-HOSE, BREATHERASM-HOSE, BREATHER
-
155414503 DUCT, INTAKE, AIRBOXDUCT, INTAKE, AIRBOX
-
165415033 SEAL, ENGINE, INLETSEAL, ENGINE, INLET
-
175414748 HOSE, ENGINE, INLETHOSE, ENGINE, INLET
-
187081026 CLAMP, HOSE, SPRINGCLAMP, HOSE, SPRING
-
197081623 CLAMP, HOSECLAMP, HOSE
-
207518529 SCREWSCREW
-
217519298 SCREWSCREW
-
227180122 DECAL, CAUTION INFO, AIRBOXDECAL, CAUTION INFO, AIRBOX
-
237181728 DECAL, CAUTION INFODECAL, CAUTION INFO
