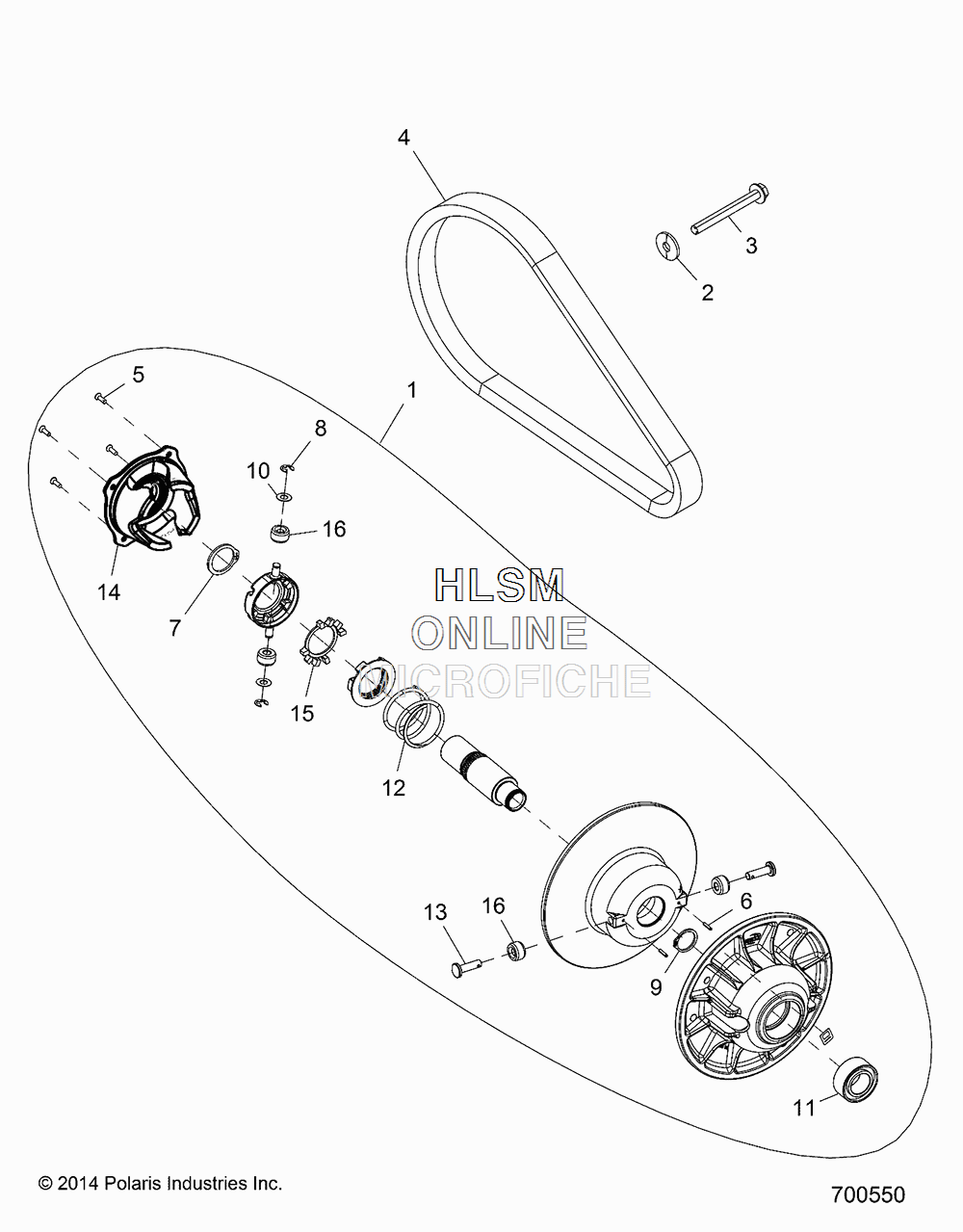

CLUTCH- SECONDARY для Polaris RANGER 570 TR EPS MID SIZE BLUE (R18RMS57CV) - 2018 года выпуска
-
№АртикулНазвание
-
11323286 ASM-DRIVEN CLUTCH, EBS (INCL. 5-16)ASM-DRIVEN CLUTCH, EBS (INCL. 5-16)
-
27555846 WASHER, FLATWASHER, FLAT
-
37519210 SCREWSCREW
-
43211149 BELT-DRIVEBELT-DRIVE
-
53234754 SCREWSCREW
-
63234202 PIN, SPRING, SLOTTEDPIN, SPRING, SLOTTED
-
77710522 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
87710523 RING, RETAINING, EXTERNALRING, RETAINING, EXTERNAL
-
93234205 RING, RETAININGRING, RETAINING
-
107556226 WASHER, THRUSTWASHER, THRUST
-
113234203 BEARING, BALLBEARING, BALL
-
123234452 SPRING, COMPRESSIONSPRING, COMPRESSION
-
133234201 PIN, ROLLERPIN, ROLLER
-
143235640 ASM., CAMASM., CAM
-
157710564 RETAINER, SPRING, INNERRETAINER, SPRING, INNER
-
165434534 ROLLER CLUTCHROLLER CLUTCH
