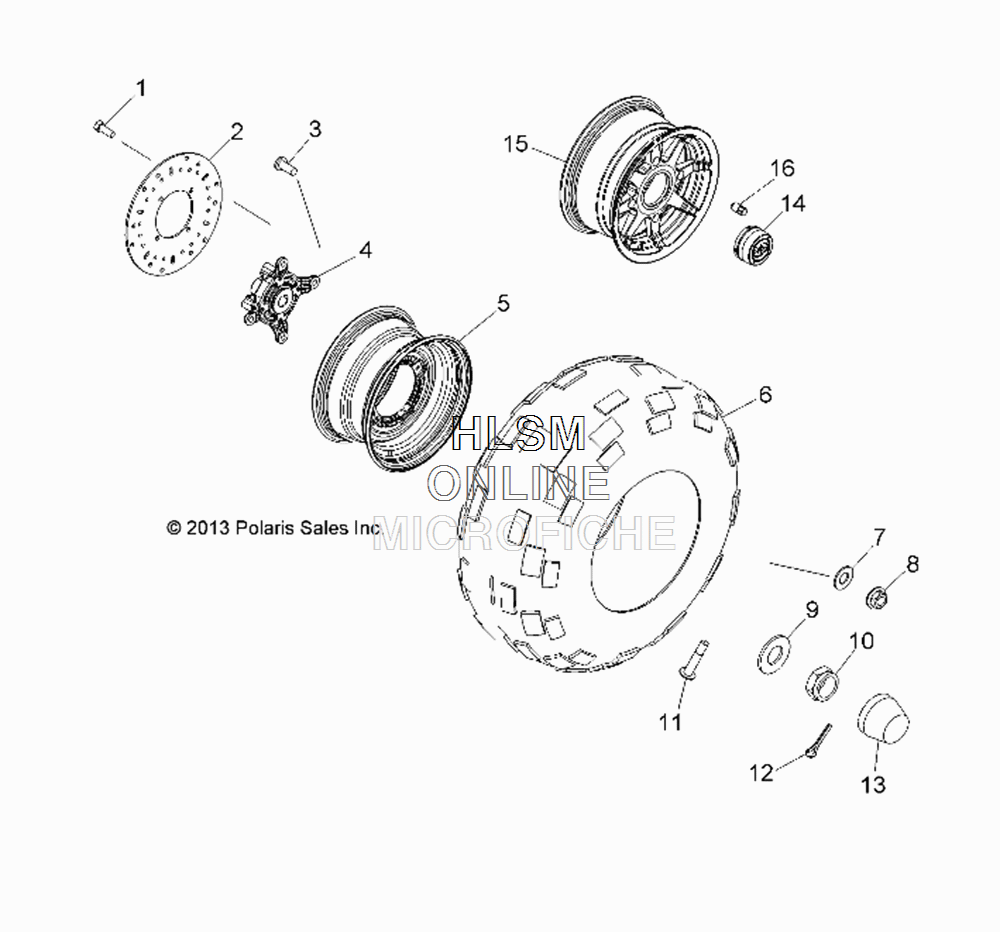

WHEELS - FRONT для Polaris RANGER 570 TR EPS MID SIZE BLUE (R18RMS57CV) - 2018 года выпуска
-
№АртикулНазвание
-
17512325 BOLTBOLT
-
25244314 DISC, BRAKE, FRONTDISC, BRAKE, FRONT
-
37518378 STUDSTUD
-
45140380 HUB-WHEEL, AWD, MACHHUB-WHEEL, AWD, MACH
-
65415733 TIRE, 25X8-12TIRE, 25X8-12
-
77556242 WASHER, FLATWASHER, FLAT
-
87542459 NUT, FLANGEDNUT, FLANGED
-
97555796 WASHER, CONEWASHER, CONE
-
107547406 NUT, CASTLENUT, CASTLE
-
111525017 VALVE, RIMVALVE, RIM
-
127661404 PIN, COTTERPIN, COTTER
-
141521128 CAP, RIMCAP, RIM
-
151521252-067 RIM, FRONT, CAST, BLACKRIM, FRONT, CAST, BLACK
-
167547309 NUT, WHEELNUT, WHEEL
