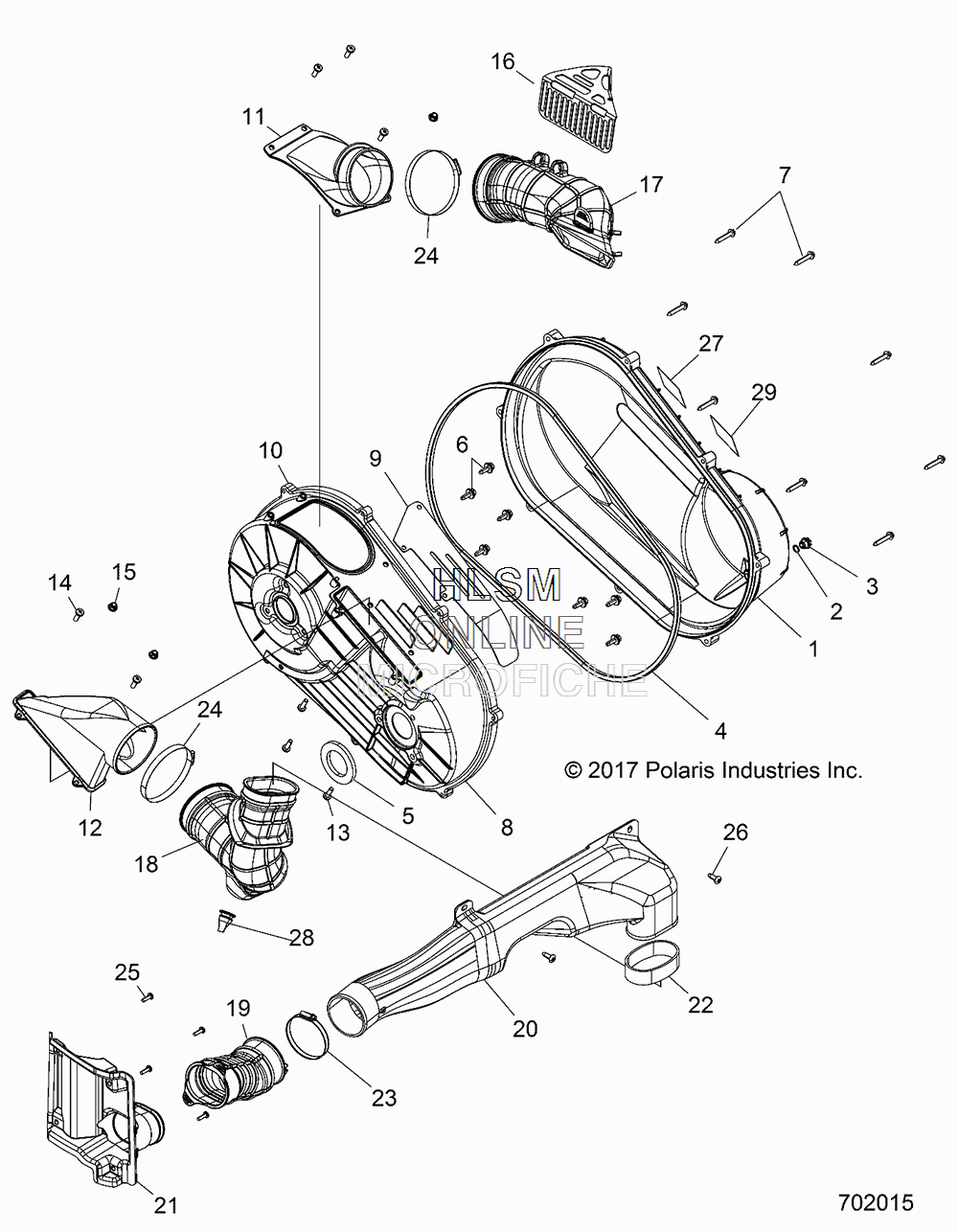

CLUTCH COVER для Polaris RANGER CREW 1000 XP PS MD (R18RVE99NX) - 2018 года выпуска
-
№АртикулНазвание
-
12207605 K-CVR, CLUTCH, OTR, RGR XP, INTL (INCL. 2, 3)K-CVR, CLUTCH, OTR, RGR XP, INTL (INCL. 2, 3)
-
25410542 O-RINGO-RING
-
35434264 PLUG, DRAIN, CLUTCH COVERPLUG, DRAIN, CLUTCH COVER
-
45521831 SEAL, OUTER CLUTCH COVERSEAL, OUTER CLUTCH COVER
-
55813708 SEAL, COVER, PTOSEAL, COVER, PTO
-
67519278 ASM., BOLT/WASHERASM., BOLT/WASHER
-
77519330 SCREWSCREW
-
82635158 ASM., COVER, CLUTCH, INNER (INCL. 9-15)ASM., COVER, CLUTCH, INNER (INCL. 9-15)
-
95256223 BRACKET, GUARD, CLUTCH COVERBRACKET, GUARD, CLUTCH COVER
-
115450846 DUCT, CLUTCH, AIR OUTLETDUCT, CLUTCH, AIR OUTLET
-
125439086 DUCT, CLUTCH, AIR INLETDUCT, CLUTCH, AIR INLET
-
137518546 SCREWSCREW
-
147519205 SCREWSCREW
-
157547453 NUTNUT
-
165256957 BRACKET, SCREEN, BELTBRACKET, SCREEN, BELT
-
175414537 HOSE, CLUTCH, AIR OUTLETHOSE, CLUTCH, AIR OUTLET
-
185416021 HOSE-CLUTCH, AIR IN, TRAP, 900/1KHOSE-CLUTCH, AIR IN, TRAP, 900/1K
-
195414854 HOSE, INTAKE, CLUTCHHOSE, INTAKE, CLUTCH
-
205451066 DUCT, INTAKE, CLUTCHDUCT, INTAKE, CLUTCH
-
215450695 INTAKE, FENDER, REARINTAKE, FENDER, REAR
-
227081279 CLAMP, BAND, NARROW, 70-90MMCLAMP, BAND, NARROW, 70-90MM
-
237080707 CLAMP, BAND, NARROW, 60-80MMCLAMP, BAND, NARROW, 60-80MM
-
247081626 CLAMP, WORM DRIVECLAMP, WORM DRIVE
-
257518238 SCREWSCREW
-
267519045 SCREWSCREW
-
277177469 DECAL, BELT, CAUTION/CHECKDECAL, BELT, CAUTION/CHECK
-
285414472 PLUG-DRAINPLUG-DRAIN
-
287181427 DECAL-WARN, CLUTCH COVER, EUDECAL-WARN, CLUTCH COVER, EU
