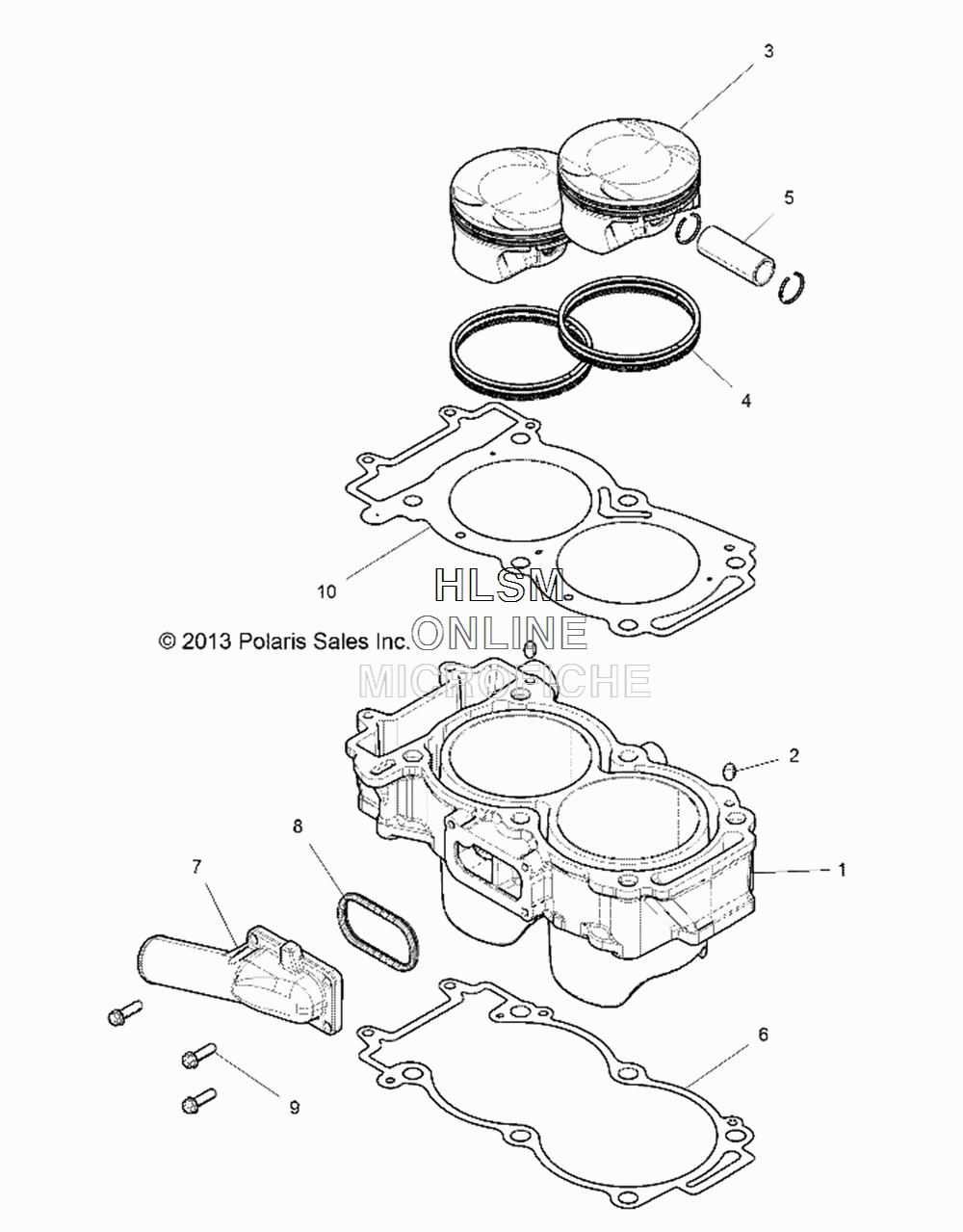

PISTON AND CYLINDER для Polaris RANGER CREW 1000 XP PS MD (R18RVE99NX) - 2018 года выпуска
-
№АртикулНазвание
-
13023156 ASM., CYLINDER (INCL. 2)ASM., CYLINDER (INCL. 2)
-
25132835 PIN, DOWELPIN, DOWEL
-
32205244 ASM., PISTON (INCL. 4, 5)ASM., PISTON (INCL. 4, 5)
-
42205245 KIT, PISTON RINGSKIT, PISTON RINGS
-
53022358 PIN, PISTONPIN, PISTON
-
65253037 GASKET, BASE, 2 CYLGASKET, BASE, 2 CYL
-
75632557 COVER, WATER INLET, CASTCOVER, WATER INLET, CAST
-
85813736 GASKET, WATER, INLETGASKET, WATER, INLET
-
97518576 SCREWSCREW
-
105813737 GASKET, CYLINDER, HEADGASKET, CYLINDER, HEAD
