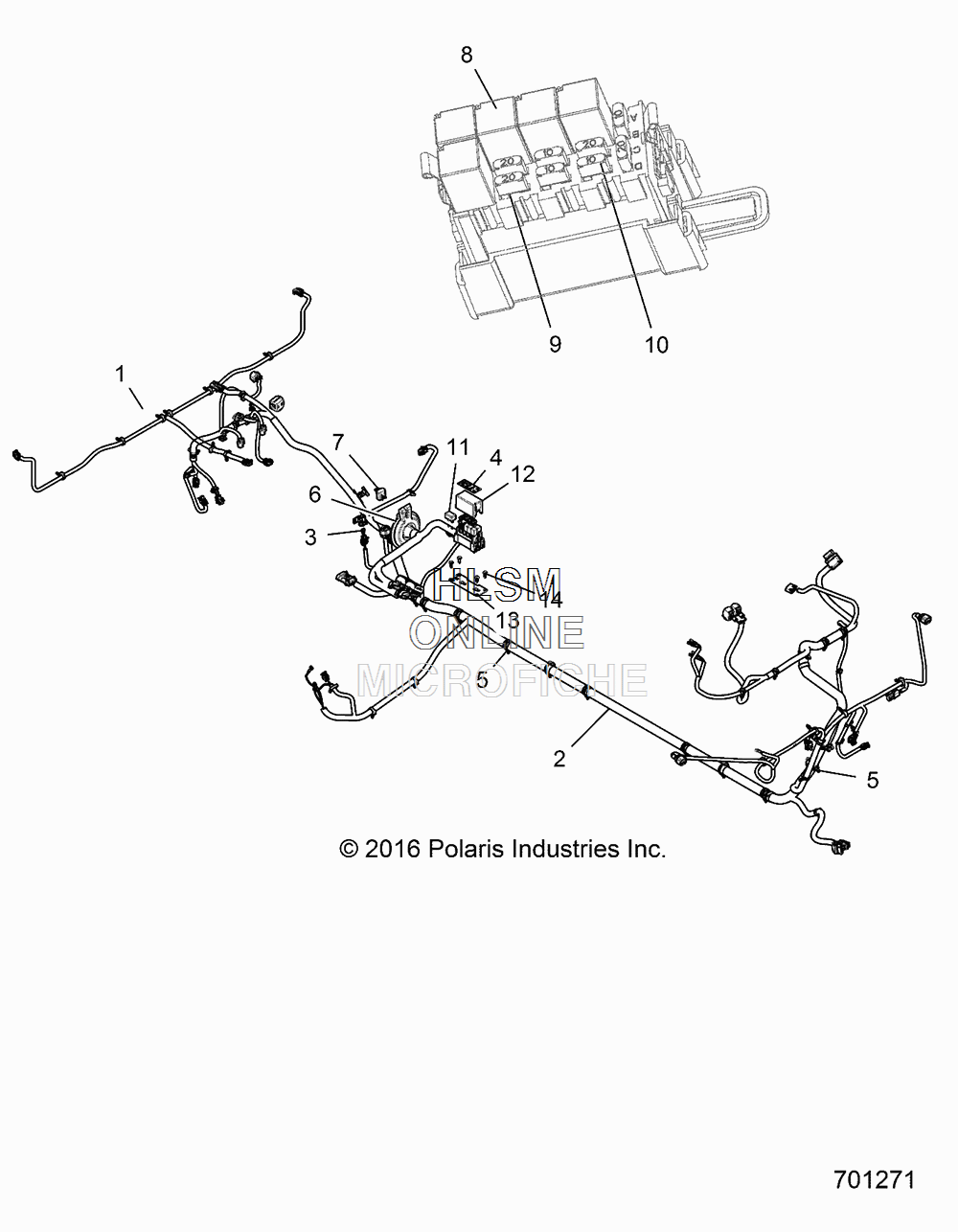

WIRE HARNESSES для Polaris RANGER CREW 1000 XP PS MD (R18RVE99NX) - 2018 года выпуска
-
№АртикулНазвание
-
12411801 HARNESS, BOXHARNESS, BOX
-
22413733 HARN-CHASSIS, 1000, CRW, EPS, RGR (INCL. 2-12)HARN-CHASSIS, 1000, CRW, EPS, RGR (INCL. 2-12)
-
32434015 FUSE-MAIN, 30 AMPFUSE-MAIN, 30 AMP
-
47177866 DECAL-RELAY/FUSE BLOCKDECAL-RELAY/FUSE BLOCK
-
57081496 CLIP-ROUTINGCLIP-ROUTING
-
65414435 GROMMET-CHASSIS HARNESSGROMMET-CHASSIS HARNESS
-
74012170 COVER-DIAGNOSTIC, W/CLIPCOVER-DIAGNOSTIC, W/CLIP
-
84011283 RELAY-SPST, SERIES 303, SEALEDRELAY-SPST, SERIES 303, SEALED
-
92434017 FUSE-PARK, 20 AMPFUSE-PARK, 20 AMP
-
102434016 FUSE-IGNITION, 10 AMPFUSE-IGNITION, 10 AMP
-
112410881 BREAKER-CIRCUIT, 20 AMP, SEALEDBREAKER-CIRCUIT, 20 AMP, SEALED
-
124012260 COVER-FUSEHOLDERCOVER-FUSEHOLDER
-
135258150 PLATE, FUSE, MOUNTPLATE, FUSE, MOUNT
-
147519045 SCREWSCREW
