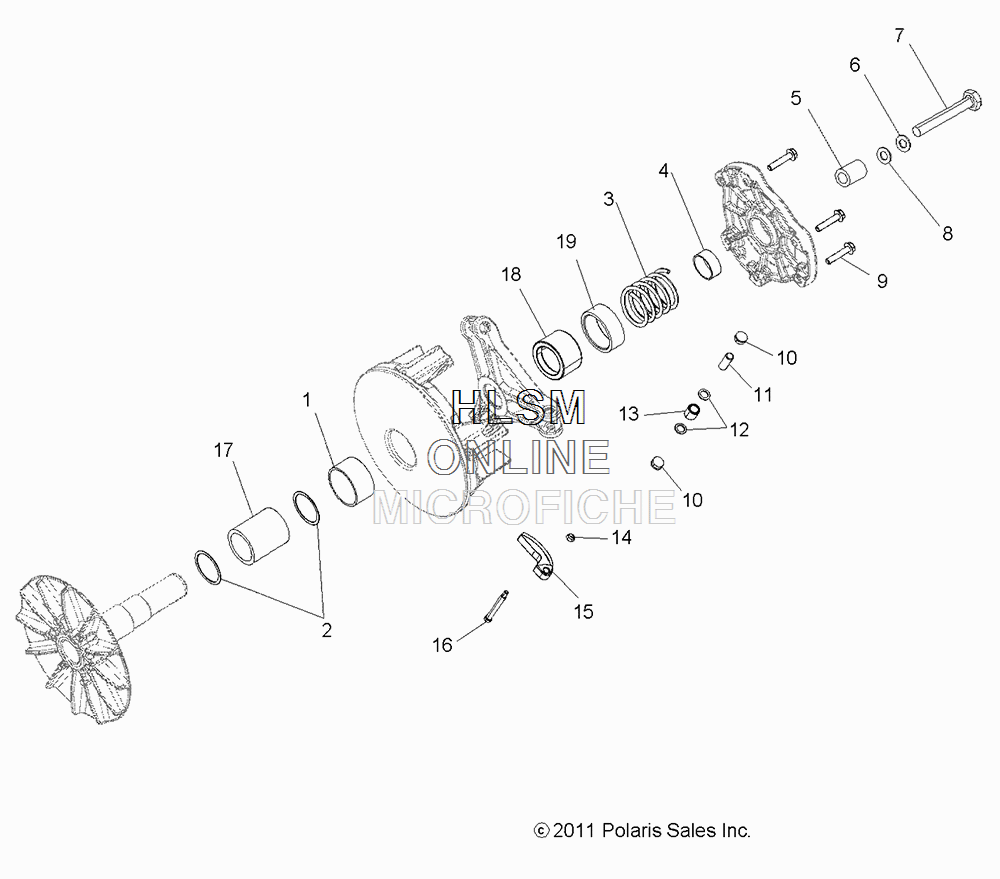

CLUTCH - PRIMARY для Polaris RANGER CREW 570-6 SAGE GREEN (CALIF ONLY) (R18RDA57B1) - 2018 года выпуска
-
№АртикулНазвание
-
-1323255 ASM., CLUTCH, DRIVE, BASIC, BEARING (INCL. ALL LESS 3, 5-8, 15, 19)ASM., CLUTCH, DRIVE, BASIC, BEARING (INCL. ALL LESS 3, 5-8, 15, 19)
-
13514492 BEARING, 1.75IDBEARING, 1.75ID
-
27556335 WASHER, CLUTCHWASHER, CLUTCH
-
37043594 SPRING, CLUTCH, 35-240SPRING, CLUTCH, 35-240
-
43514684 COVER, BEARING, .75INCOVER, BEARING, .75IN
-
55430261 BUSHINGBUSHING
-
67575202 WASHER, INTERLOCKWASHER, INTERLOCK
-
77519287 BOLT, CLUTCHBOLT, CLUTCH
-
85210748 WASHER, FLATWASHER, FLAT
-
97518062 SCR-1/4-20X1.25 HX/FL GR5SCR-1/4-20X1.25 HX/FL GR5
-
105439254 BUTTON, CLUTCHBUTTON, CLUTCH
-
115020422 PIN, ROLLERPIN, ROLLER
-
125438247 WASHER, CLUTCH, SPIDER ROLLERWASHER, CLUTCH, SPIDER ROLLER
-
131321457 ASM., ROLLER AND BUSHINGASM., ROLLER AND BUSHING
-
147541906 NUT-10-24-FLEX LOC-ZNUT-10-24-FLEX LOC-Z
-
155632409 WEIGHT, SHIFT, 25-52G, PMWEIGHT, SHIFT, 25-52G, PM
-
167512266 SCR-SH-1/4X2 SAE4037 BLACKOX & OILSCR-SH-1/4X2 SAE4037 BLACKOX & OIL
-
173514609 BEARING, NEEDLEBEARING, NEEDLE
-
185633000 SPACER, CLUTCH, PMSPACER, CLUTCH, PM
-
195438823 SPACER, CLUTCH, LIMITERSPACER, CLUTCH, LIMITER
