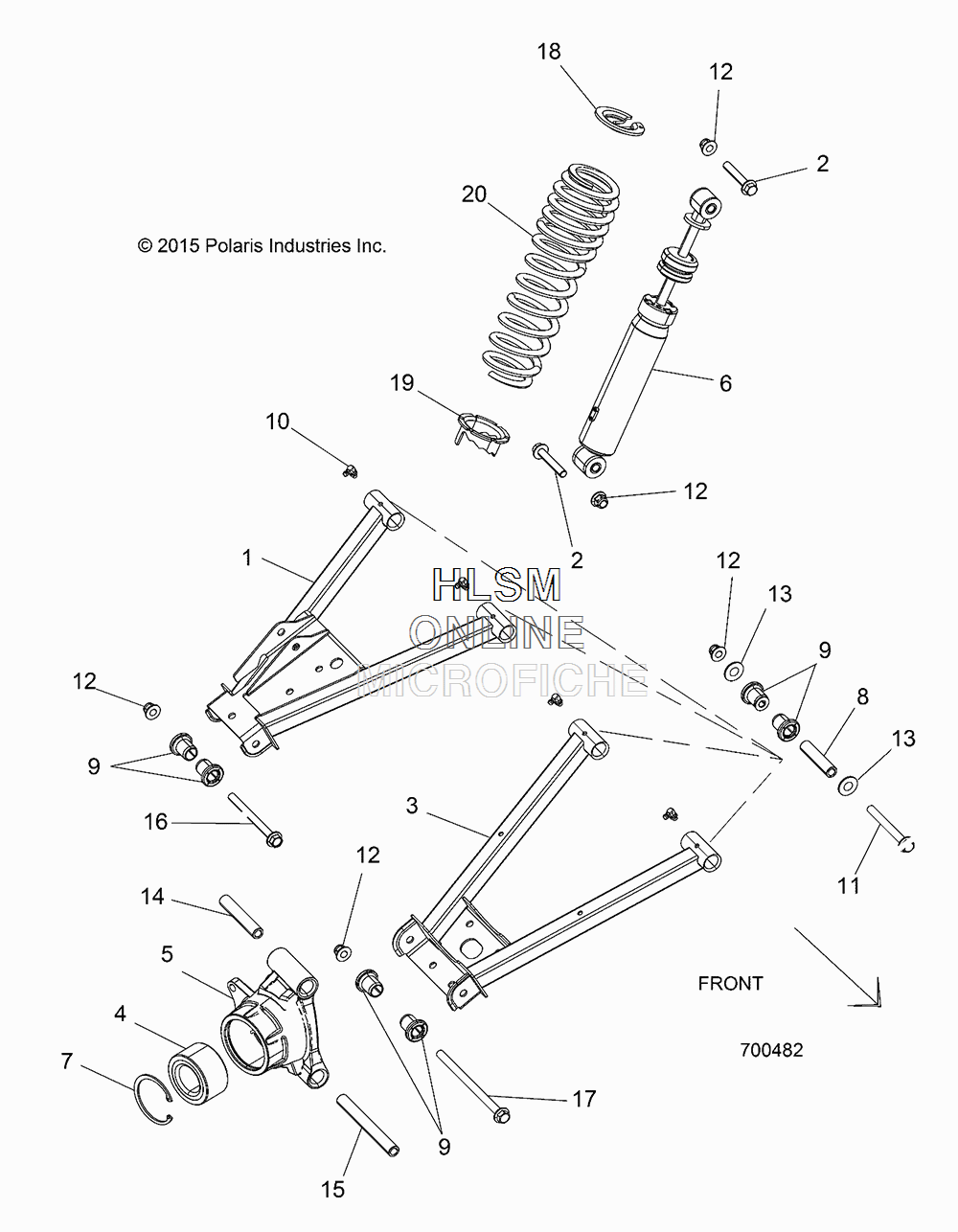

SUSPENSION - REAR для Polaris RANGER CREW 570-6 SAGE GREEN (CALIF ONLY) (R18RDA57B1) - 2018 года выпуска
-
№АртикулНазвание
-
11018992-458 ARM, CONTROL, UPPER, RIGHT HAND, MATTE BLACKARM, CONTROL, UPPER, RIGHT HAND, MATTE BLACK
-
11020797-458 ARM, CONTROL, UPPER, LEFT HAND, MATTE BLACKARM, CONTROL, UPPER, LEFT HAND, MATTE BLACK
-
27518563 BOLTBOLT
-
31018995-458 ARM, CONTROL, LOWER, MATTE BLACKARM, CONTROL, LOWER, MATTE BLACK
-
43514635 BEARING, WHEEL, 40X74X40MMBEARING, WHEEL, 40X74X40MM
-
55138052 CARRIER-BEARING, WHEEL, LEFT HANDCARRIER-BEARING, WHEEL, LEFT HAND
-
55138053 CARRIER-BEARING, WHEEL, RIGHT HANDCARRIER-BEARING, WHEEL, RIGHT HAND
-
67044139 SHOCK, REARSHOCK, REAR
-
77710440 RING, RETAININGRING, RETAINING
-
85138797 SHAFT, PIVOT, 70.99MM, 15.88ODSHAFT, PIVOT, 70.99MM, 15.88OD
-
95439874 BUSHINGBUSHING
-
107080510 FITTING, ZERK, 90 DEGFITTING, ZERK, 90 DEG
-
117519043 SCREWSCREW
-
127547333 NUT, FLANGE, NYLOKNUT, FLANGE, NYLOK
-
137556153 WASHERWASHER
-
145138794 SHAFT, PIVOT, 89.71MM, 15.88ODSHAFT, PIVOT, 89.71MM, 15.88OD
-
155138796 SHAFT, PIVOT, 139.1MM, 15.88ODSHAFT, PIVOT, 139.1MM, 15.88OD
-
167518566 BOLTBOLT
-
177519042 SCREWSCREW
-
185251753 RETAINER, SPRING, STEELRETAINER, SPRING, STEEL
-
195253768 CAM, ADJUSTING, SPRING, STEELCAM, ADJUSTING, SPRING, STEEL
-
207044680-458 SPRING-REAR, MATTE BLACKSPRING-REAR, MATTE BLACK
