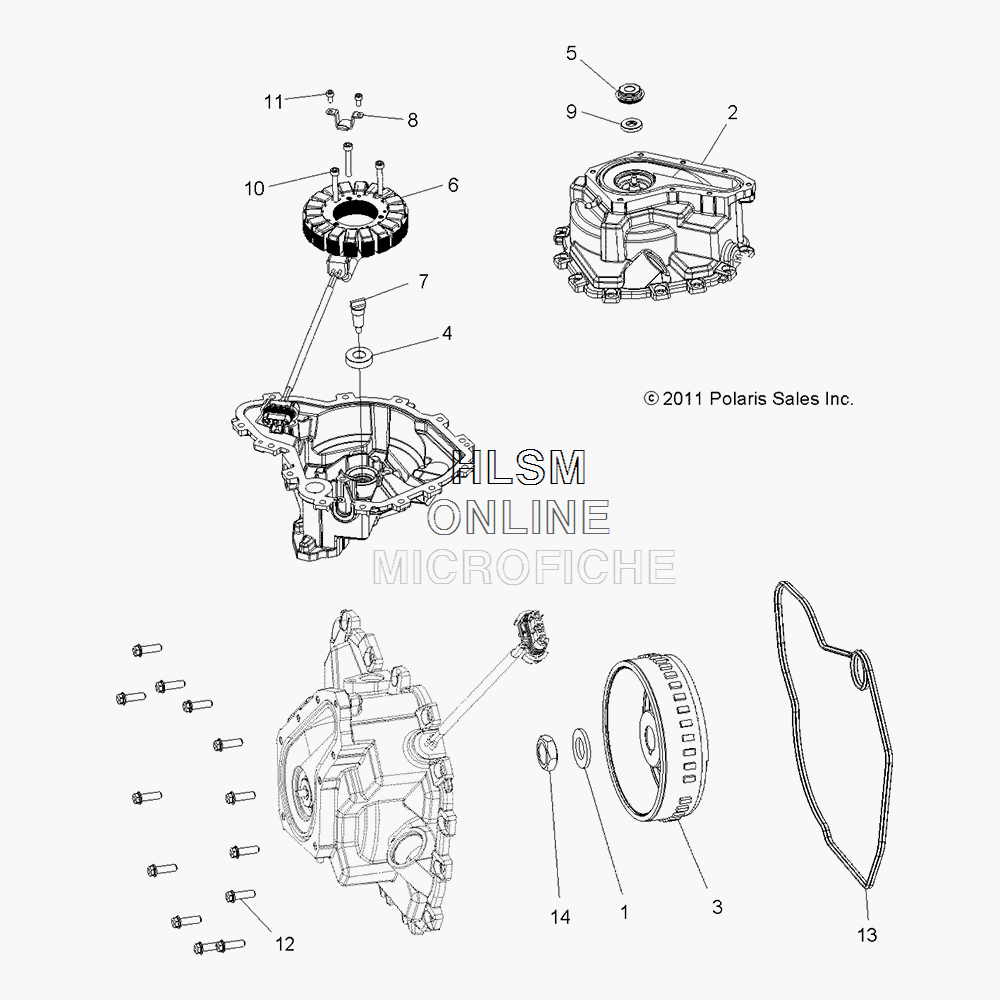

STATOR COVER W/ FLYWHEEL для Polaris RANGER CREW 570-6 SAGE GREEN (CALIF ONLY) (R18RDA57B1) - 2018 года выпуска
-
№АртикулНазвание
-
17556878 WASHERWASHER
-
22204736 KIT, IGNITION COVER (INCL. COVER, FITTING, IMPELLER, 4, 5, 7, 9)KIT, IGNITION COVER (INCL. COVER, FITTING, IMPELLER, 4, 5, 7, 9)
-
34016073 FLYWHEELFLYWHEEL
-
43514696 BEARING, SHAFT, WATERPUMPBEARING, SHAFT, WATERPUMP
-
53610173 SEAL, WATERPUMP SHAFT, WATERSEAL, WATERPUMP SHAFT, WATER
-
64014406 STATOR, 560WSTATOR, 560W
-
75138035 SHAFT, PUMP DRIVESHAFT, PUMP DRIVE
-
85254832 GUIDE, STATOR LEADGUIDE, STATOR LEAD
-
95411197 SEAL, TYPE SSEAL, TYPE S
-
107510005 SCREWSCREW
-
117517847 SCREWSCREW
-
127518576 SCREWSCREW
-
135414329 GASKET, STATOR COVERGASKET, STATOR COVER
-
147547488 NUT, JAM, RIGHT HANDNUT, JAM, RIGHT HAND
