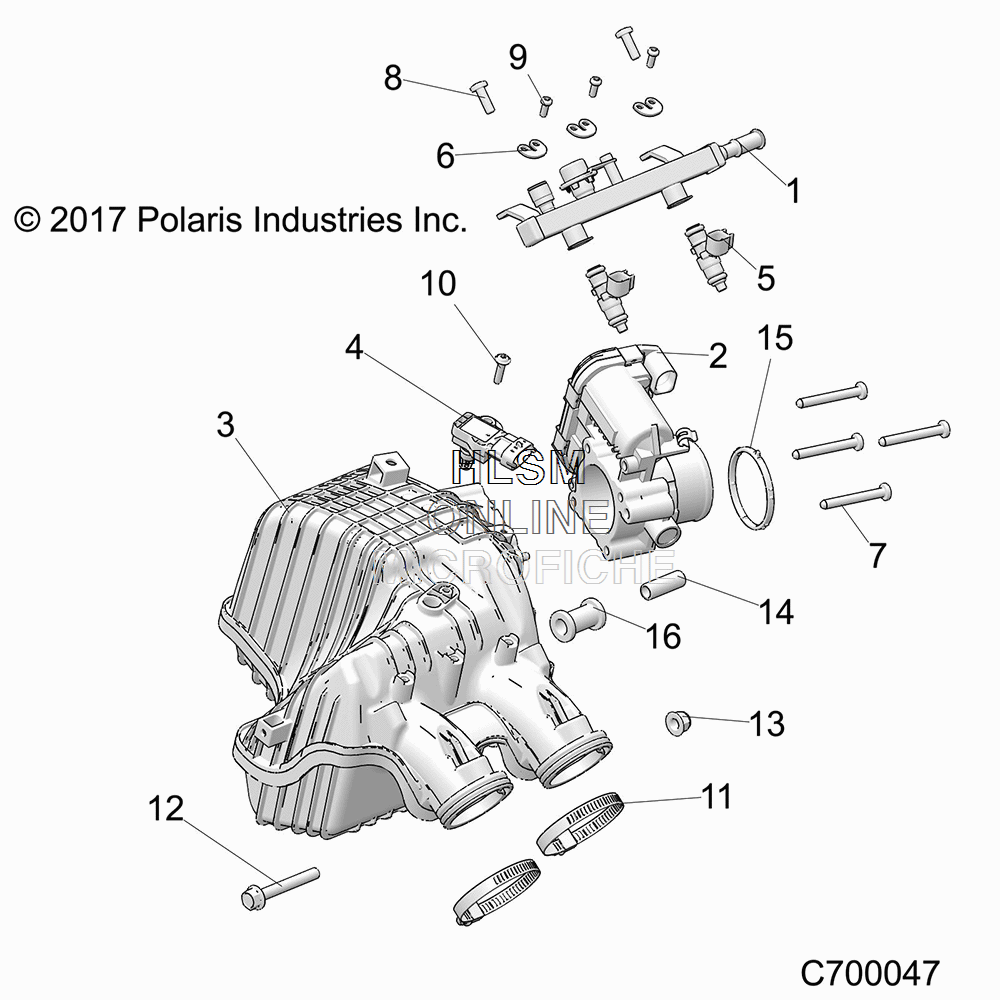

AIR INTAKE MANIFOLD для Polaris RANGER XP 1000 HVAC EDITION EPS SUNSET RED (R18RRU99AS) - 2018 года выпуска
-
№АртикулНазвание
-
12521886 RAIL-FUELRAIL-FUEL
-
21204455 THROTTLE-ETC, 46MMTHROTTLE-ETC, 46MM
-
31205773 MANIFOLD-INTAKE, COMPOSITEMANIFOLD-INTAKE, COMPOSITE
-
42411528 SENSOR-TMAP DSS3-TFSENSOR-TMAP DSS3-TF
-
52521068 INJ-FUEL, EV14COMPACT, 200GINJ-FUEL, EV14COMPACT, 200G
-
65258229 CLIP-INTAKE ROUTING (INCL. O-RING)CLIP-INTAKE ROUTING (INCL. O-RING)
-
77518377 SCR-1/4X2 HI/LO-PH-PN TRX-MSCR-1/4X2 HI/LO-PH-PN TRX-M
-
87519290 SCR-TXPH-#14X3/4 HI/LO CLRSCR-TXPH-#14X3/4 HI/LO CLR
-
97519933 SCREW-PLASTITE, 4.5MMSCREW-PLASTITE, 4.5MM
-
107519952 SCR-PLASTITE, 5.0MMX20-PN-T25SCR-PLASTITE, 5.0MMX20-PN-T25
-
117080413 CLAMP-BAND, NARROWCLAMP-BAND, NARROW
-
127519298 SCR-HXFL-M8X1.25X60 8.8 ZODSCR-HXFL-M8X1.25X60 8.8 ZOD
-
137547332 NUT-M8X1.25, FLG, NYLOC-OLIVE DNUT-M8X1.25, FLG, NYLOC-OLIVE D
-
145138678 LIMITER-COMPRESSION, AF.0113666LIMITER-COMPRESSION, AF.0113666
-
155813964 GASKET-ETC, EN.0113664GASKET-ETC, EN.0113664
-
165813965 GROMMET-LX.0113665GROMMET-LX.0113665
