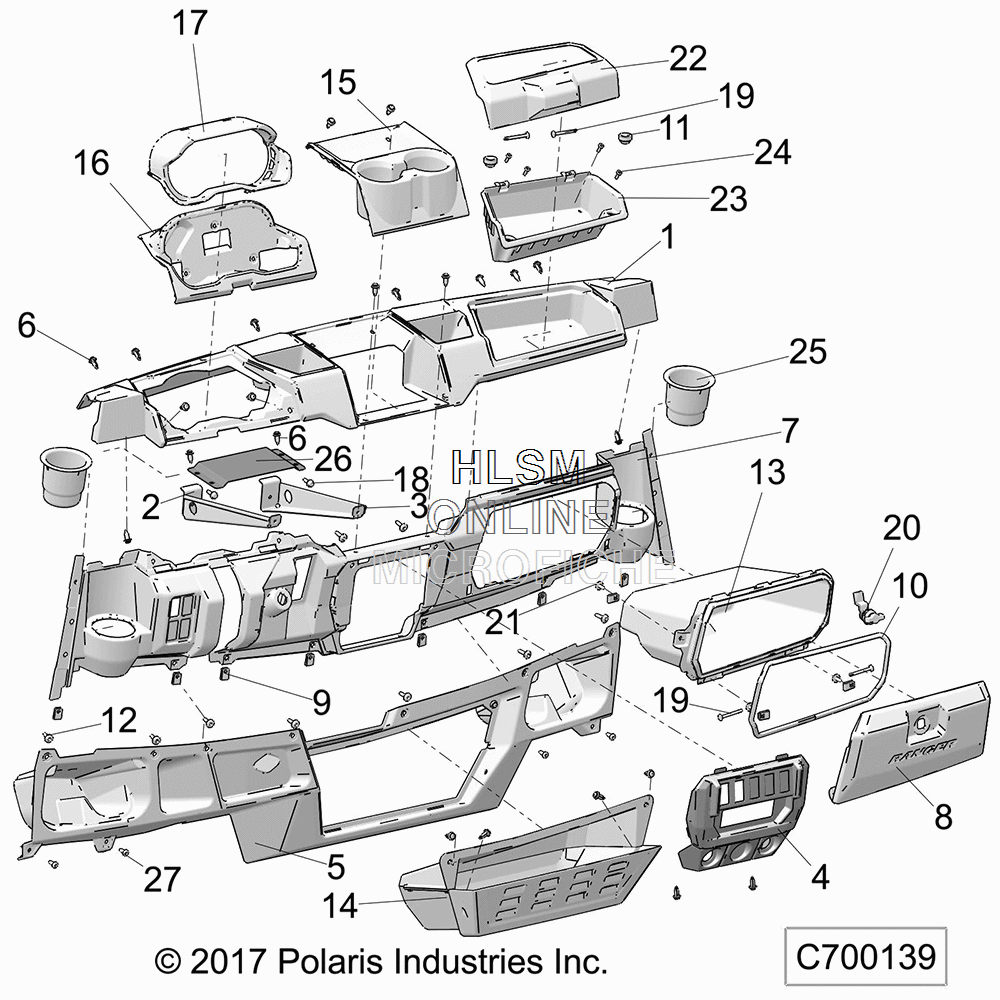

DASH AND GLOVEBOX для Polaris RANGER XP 1000 HVAC EDITION EPS SUNSET RED (R18RRU99AS) - 2018 года выпуска
-
№АртикулНазвание
-
15454263-070 DASH-UPPER, ROUTER, BLACK (INCL. QTY 8 OF 2)DASH-UPPER, ROUTER, BLACK (INCL. QTY 8 OF 2)
-
25264390 BRKT-DASH, LEFT HANDBRKT-DASH, LEFT HAND
-
35265726 BRKT-DASH, RIGHT HANDBRKT-DASH, RIGHT HAND
-
45454259-070 DASH-CONTROL, ROUTER, BLACK (INCL. QTY 4 OF 2)DASH-CONTROL, ROUTER, BLACK (INCL. QTY 4 OF 2)
-
55454262-070 DASH-STORAGE, ROUTER, BLACKDASH-STORAGE, ROUTER, BLACK
-
67661855 RIVET TUFLOKRIVET TUFLOK
-
75453743-070 DASH-MAIN, BLACKDASH-MAIN, BLACK
-
85453744-070 COVER-GLOVEBOX, BLACKCOVER-GLOVEBOX, BLACK
-
97547674 NUT-M6-1.0, U-TYPE (2.5-3.8)NUT-M6-1.0, U-TYPE (2.5-3.8)
-
105522237 SEAL-GLOVEBOXSEAL-GLOVEBOX
-
115412504 GROMMET-RUBBER, MOUNT, .25 INGROMMET-RUBBER, MOUNT, .25 IN
-
127519650 SCREWSCREW
-
135453745-070 BIN-GLOVEBOX, BLACKBIN-GLOVEBOX, BLACK
-
145454155-070 COVER-BIN, HVAC, BLACKCOVER-BIN, HVAC, BLACK
-
155453749-070 DASH-CENTER TRAY, BLACKDASH-CENTER TRAY, BLACK
-
165454158-070 DASH-GAUGE, HOOD, C4, BLACKDASH-GAUGE, HOOD, C4, BLACK
-
175454159-070 DASH-GAUGE, BEZEL, C4, BLACKDASH-GAUGE, BEZEL, C4, BLACK
-
187518529 SCR-M6X1.0X20, HXHD, FLG, TDFM, BKSCR-M6X1.0X20, HXHD, FLG, TDFM, BK
-
195439091 PIN-HINGE, GLOVEBOXPIN-HINGE, GLOVEBOX
-
207081425 LATCH-1/4 TURN, CAMLATCH-1/4 TURN, CAM
-
217518936 SCR-M6X1X16 TR/TX-MSCR-M6X1X16 TR/TX-M
-
225453789-070 COVER-UPPER GLOVEBOX, BLACKCOVER-UPPER GLOVEBOX, BLACK
-
235453790-070 BIN-UPPER GLOVEBOX, BLACKBIN-UPPER GLOVEBOX, BLACK
-
247518238 SCR-10X5/8-HI/LO, PN-T25, TRX-MSCR-10X5/8-HI/LO, PN-T25, TRX-M
-
255436836 HOLDER-CUPHOLDER-CUP
-
265265727 BRKT-DRIP PLATEBRKT-DRIP PLATE
-
277519045 SCR-TX TRUSS-#14X3/4, HI/LO ZBKSCR-TX TRUSS-#14X3/4, HI/LO ZBK
