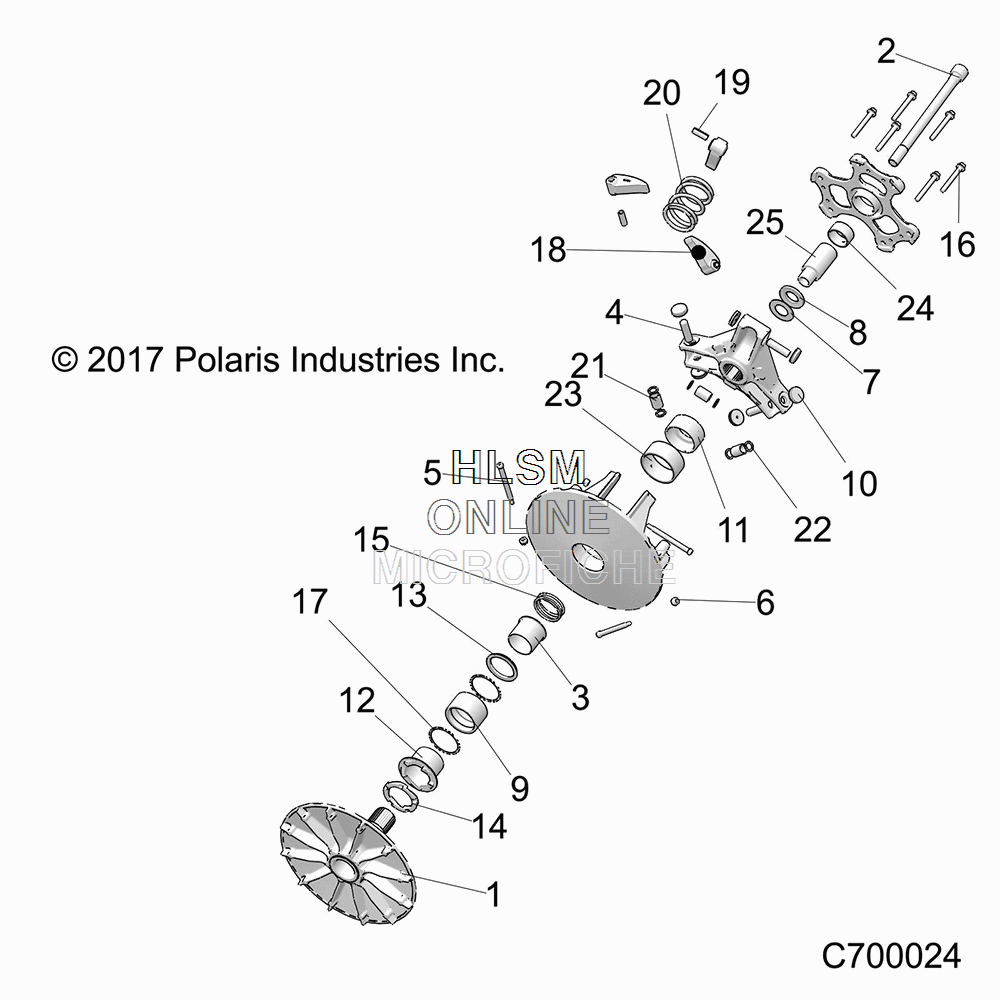

CLUTCH- PRIMARY для Polaris RANGER XP 1000 HVAC EDITION EPS SUNSET RED (R18RRU99AS) - 2018 года выпуска
-
№АртикулНазвание
-
-1323397 ASM-DRIVE CLUTCH, BASIC, P90X (INCL. ALL)ASM-DRIVE CLUTCH, BASIC, P90X (INCL. ALL)
-
11323531 ASM-SLEEVE, EBS, 15DEGASM-SLEEVE, EBS, 15DEG
-
27520526 SCR-SH-M14X1.5X180 10.9 SPCSCR-SH-M14X1.5X180 10.9 SPC
-
33515009 BUSHING-SLEEVE, 36MMBUSHING-SLEEVE, 36MM
-
45140976 POST-CLUTCH, OUTERPOST-CLUTCH, OUTER
-
57520585 BOLT-SHIFT WEIGHT, BUSHEDBOLT-SHIFT WEIGHT, BUSHED
-
67541906 NUT-10-24-FLEX LOC-ZNUT-10-24-FLEX LOC-Z
-
77557017 WSHR-20.5X38.0X0.75 ZY3WSHR-20.5X38.0X0.75 ZY3
-
87557018 WSHR-BELLE, 21X37.5X3.8, SPCWSHR-BELLE, 21X37.5X3.8, SPC
-
91523288 ASM-CLUTCH, ONEWAY, 50MM, 30RLRVASM-CLUTCH, ONEWAY, 50MM, 30RLRV
-
105453433 BUTTON-CLUTCH, 22MMBUTTON-CLUTCH, 22MM
-
115140729 SPACER-CLUTCH, P90XSPACER-CLUTCH, P90X
-
125141802 SLEEVE-FLANGE, EBS, 15DEGSLEEVE-FLANGE, EBS, 15DEG
-
135141803 SPACER-FLANGESPACER-FLANGE
-
145454048 HELIX, DRIVE, P90X, 15DEGHELIX, DRIVE, P90X, 15DEG
-
157044697 SPRING-ONEWAY, EBSSPRING-ONEWAY, EBS
-
167517932 SCR-M6X1.0X50.0 HX/FL-Y/DSCR-M6X1.0X50.0 HX/FL-Y/D
-
177556984 WASHER-CLUTCH, P90XWASHER-CLUTCH, P90X
-
181323458 ASM-WEIGHT, SHIFT, 32-106 {INCL 19}ASM-WEIGHT, SHIFT, 32-106 {INCL 19}
-
195453843 BUSHING-WEIGHT, 1/4X7/8, DUBUSHING-WEIGHT, 1/4X7/8, DU
-
207044938 SPRING-CLUTCH, 90-180, HTSPRING-CLUTCH, 90-180, HT
-
211323457 ASM-SPIDER ROLLER, P90XASM-SPIDER ROLLER, P90X
-
225453844 WASHER-CLUTCH, SPIDER ROLLERWASHER-CLUTCH, SPIDER ROLLER
-
233514984 BUSHING-MOVABLE, 50MMBUSHING-MOVABLE, 50MM
-
243514983 BUSHING-COVER, 38.1MMBUSHING-COVER, 38.1MM
-
255140976 POST-CLUTCH, OUTERPOST-CLUTCH, OUTER
