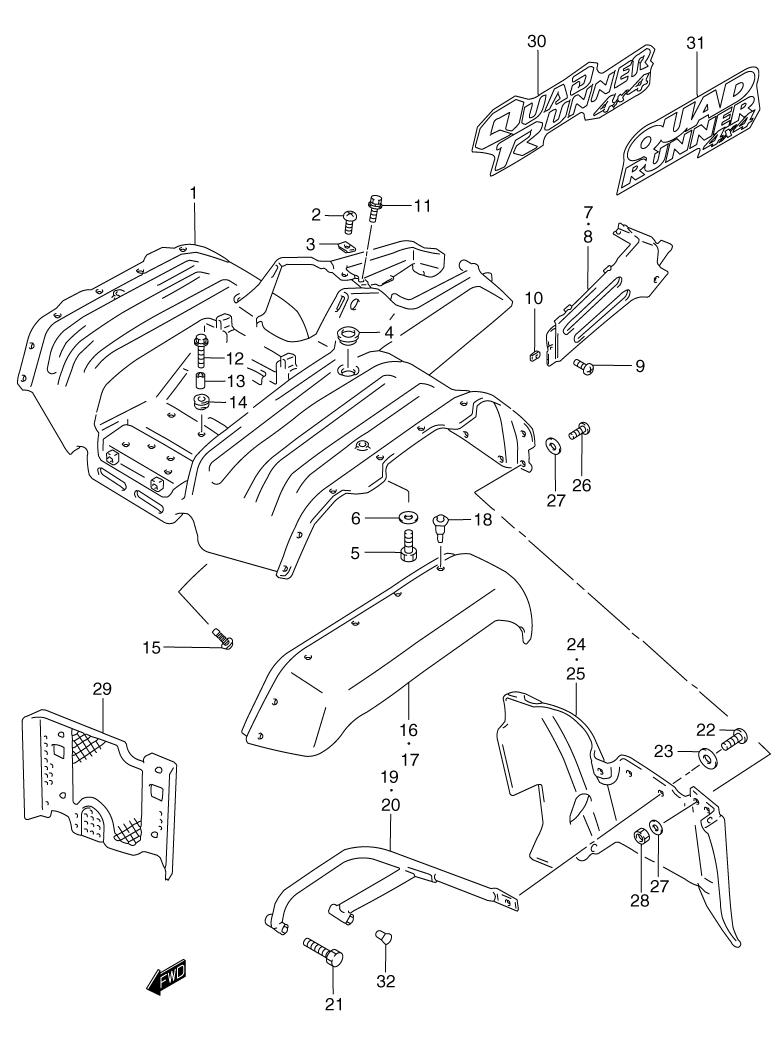

FENDER - FRONT для Suzuki LT-F250FY 4X4 - 2000 года выпуска
-
№АртикулНазвание
-
153111-39DA0-Z34 FENDER, FRONT (BROWN)FENDER, FRONT (BROWN)
-
203241-15163 SCREWSCREW
-
309148-05038 NUTNUT
-
409308-25003 GROMMETGROMMET
-
501570-06163 BOLT, OUTERBOLT, OUTER
-
609169-06041 WASHERWASHER
-
753112-39DA0-291 COVER, FENDER SIDE RH (BLACK)COVER, FENDER SIDE RH (BLACK)
-
853122-39DA0-291 COVER, FENDER SIDE LH (BLACK)COVER, FENDER SIDE LH (BLACK)
-
903241-15163 SCREWSCREW
-
1009148-05038 NUTNUT
-
1109118-06019 BOLT, UPPERBOLT, UPPER
-
1209116-06025 BOLT, FRONTBOLT, FRONT
-
1309180-06120 SPACERSPACER
-
1409320-11008 CUSHIONCUSHION
-
1503241-15203 SCREW, INNERSCREW, INNER
-
1653331-39DA0-291 MUDGUARD (RIGHT) (BLACK)MUDGUARD (RIGHT) (BLACK)
-
1753332-39DA0-291 MUDGUARD (LEFT) (BLACK)MUDGUARD (LEFT) (BLACK)
-
1809409-07333 CLIPCLIP
-
1953210-39DA0 BRACE (RIGHT)BRACE (RIGHT)
-
2053240-39DA0 BRACE (LEFT)BRACE (LEFT)
-
2101560-06403 BOLT, BRACEBOLT, BRACE
-
2209139-05037 SCREW, MUD FLAPSCREW, MUD FLAP
-
2309160-08123 WASHERWASHER
-
2453311-39DA0-291 MUD FLAP (RIGHT) (BLACK)MUD FLAP (RIGHT) (BLACK)
-
2553312-39DA0-291 MUD FLAP (LEFT) (BLACK)MUD FLAP (LEFT) (BLACK)
-
2609136-05038 SCREWSCREW
-
2709160-05046 WASHERWASHER
-
2809159-05026 NUTNUT
-
29-253310-20B12 GUARD, MUFFLER FRONTGUARD, MUFFLER FRONT
-
3168151-39DF0-AZ6 EMBLEMEMBLEM
-
3209250-10006 PLUG, BRACE (OPT)PLUG, BRACE (OPT)
