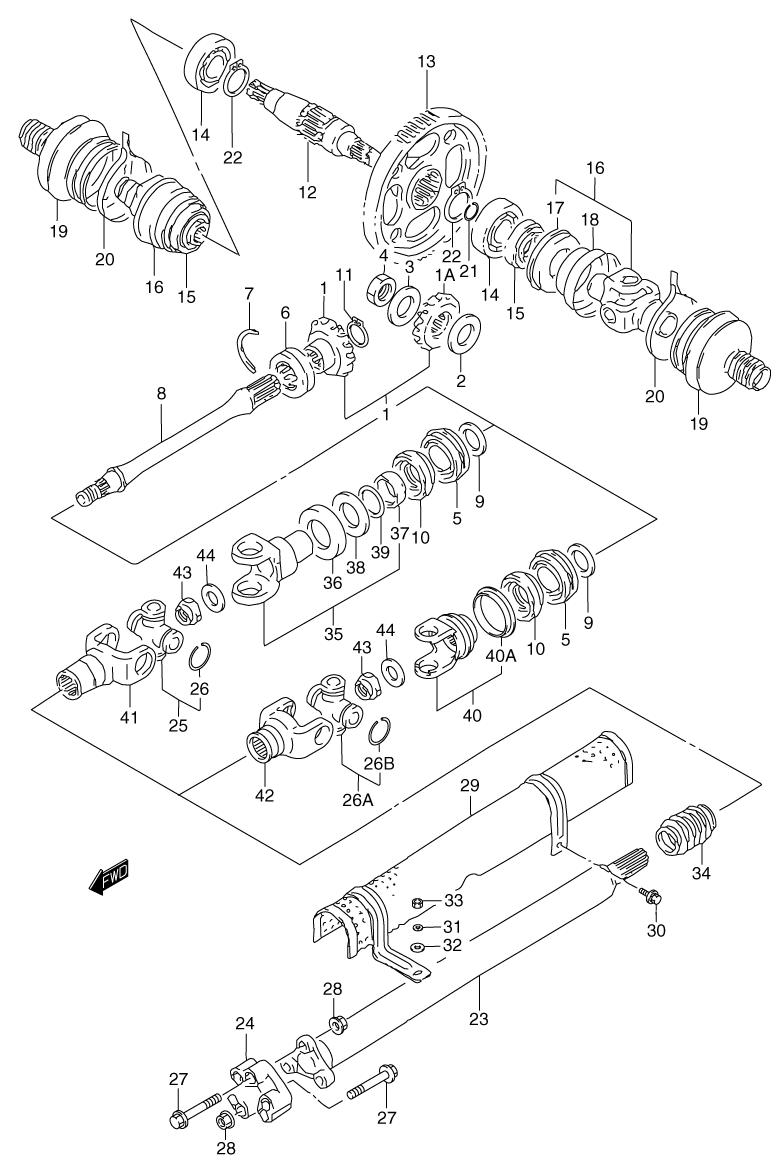

SECONDARY GEAR - PROPELLER SHAFT для Suzuki LT-F250FY 4X4 - 2000 года выпуска
-
№АртикулНазвание
-
124911-19B00 GEAR, DRIVE BEVEL (NT:16)GEAR, DRIVE BEVEL (NT:16)
-
1A24921-19B00 GEAR, DRIVEN BEVEL (NT:17)GEAR, DRIVEN BEVEL (NT:17)
-
224935-19810 SHIM SET, SEC DRIVE BEVEL (T:0.30/0.35/0.90/0.95/1.00/1.05/1.10/1.15)SHIM SET, SEC DRIVE BEVEL (T:0.30/0.35/0.90/0.95/1.00/1.05/1.10/1.15)
-
309164-20007 WASHERWASHER
-
4-109140-20001 NUTNUT
-
509267-25006 BEARING, FRONTBEARING, FRONT
-
609263-30050 BEARING, REARBEARING, REAR
-
709390-50002 RINGRING
-
824961-19B01 SHAFT, SECONDARY OUTPUTSHAFT, SECONDARY OUTPUT
-
9-109181-25186 SHIM (T:0.50)SHIM (T:0.50)
-
9-209181-25051 SHIM (T:0.60)SHIM (T:0.60)
-
9-309181-25052 SHIM (T:0.65)SHIM (T:0.65)
-
9-409181-25053 SHIM (T:0.70)SHIM (T:0.70)
-
9-509181-25054 SHIM (T:0.75)SHIM (T:0.75)
-
9-609181-25055 SHIM (T:0.80)SHIM (T:0.80)
-
9-709181-25056 SHIM (T:0.85)SHIM (T:0.85)
-
9-809181-25057 SHIM (T:0.90)SHIM (T:0.90)
-
9-909181-25058 SHIM (T:0.95)SHIM (T:0.95)
-
9-1009181-25059 SHIM (T:1.00)SHIM (T:1.00)
-
9-1109181-25060 SHIM (T:1.05)SHIM (T:1.05)
-
9-1209181-25061 SHIM (T:1.10)SHIM (T:1.10)
-
9-1309181-25062 SHIM (T:1.15)SHIM (T:1.15)
-
9-1409181-25063 SHIM (T:1.20)SHIM (T:1.20)
-
1009283-34008 OIL SEALOIL SEAL
-
1108331-31246 CIRCLIPCIRCLIP
-
1227551-19B10 SHAFT, REAR FINAL DRIVENSHAFT, REAR FINAL DRIVEN
-
1327541-19B10 GEAR, DRIVEN (NT:62)GEAR, DRIVEN (NT:62)
-
1409262-25073 BEARING (25X62X17)BEARING (25X62X17)
-
1509283-34008 OIL SEAL (34X52X9)OIL SEAL (34X52X9)
-
16-127501-19B70 JOINT, REAR FINAL OUTPUTJOINT, REAR FINAL OUTPUT
-
17-127592-19B70 ...COVER, OUT PUT OIL SEAL...COVER, OUT PUT OIL SEAL
-
1827593-19B70 ...COVER, UNIVERSAL JOINT...COVER, UNIVERSAL JOINT
-
1927153-19B70 BOOTBOOT
-
2044123-60A00 CLAMP, UNIVERSAL JOINTCLAMP, UNIVERSAL JOINT
-
2109381-24001 RING (OD:24,D:1.6)RING (OD:24,D:1.6)
-
2208331-31406 CIRCLIPCIRCLIP
-
2327150-19B00 PROPELLER SHAFTPROPELLER SHAFT
-
2427170-19B00 COUPLINGCOUPLING
-
2527200-73813 JOINT, UNIVERSALJOINT, UNIVERSAL
-
2609380-25005 ...CIRCLIP...CIRCLIP
-
2701500-10453 BOLTBOLT
-
2808316-10103 NUTNUT
-
29-127190-19B70 PROTECTORPROTECTOR
-
3001550-06123 BOLTBOLT
-
3108321-01063 LOCK WASHERLOCK WASHER
-
3209160-06128 WASHER (6.5X15X1.60)WASHER (6.5X15X1.60)
-
3308310-00063 NUTNUT
-
3427153-62021 BOOTBOOT
-
3527130-19B00 YOKE, FRONT DRIVE OUTPUTYOKE, FRONT DRIVE OUTPUT
-
3609165-30003 ...PLATE...PLATE
-
3727591-19B01 ...COLLAR...COLLAR
-
3827592-19B00 ...PLATE, OIL SEAL...PLATE, OIL SEAL
-
3909280-28007 ...O-RING...O-RING
-
4127140-19B00 YOKE, PROPELLER SHAFT JOINTYOKE, PROPELLER SHAFT JOINT
-
4309159-16003 NUTNUT
-
4409160-16026 WASHER (16X30X3)WASHER (16X30X3)
