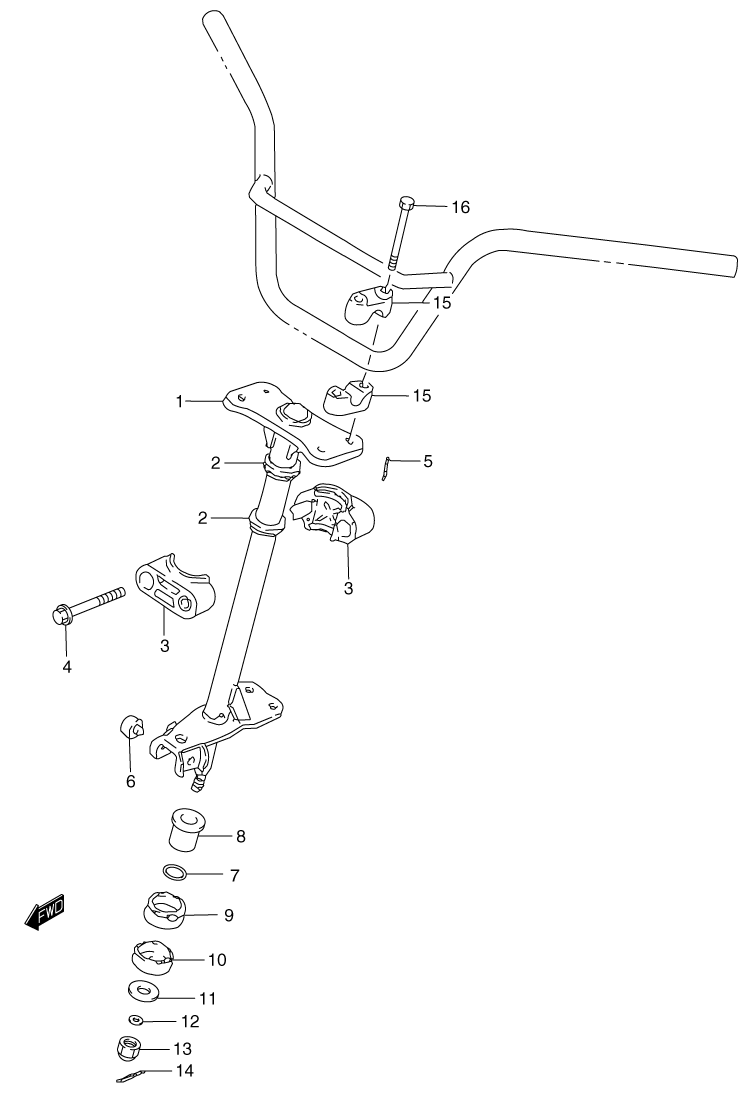

STEERING SHAFT для Suzuki LT-F250FY 4X4 - 2000 года выпуска

№

Артикул

Название
1

51650-19B01 SHAFT, STEERING

SHAFT, STEERING

0 ₽
2

51678-24500 DUST SEAL, STEERING (26X38X8.5)

DUST SEAL, STEERING (26X38X8.5)

1 200 ₽
3

51670-24500 HOLDER, STEERING SHAFT

HOLDER, STEERING SHAFT

4 190 ₽
4

09103-08116 BOLT (8X80)

BOLT (8X80)

0 ₽
5

04111-20208 COTTER PIN

COTTER PIN

220 ₽
6

09321-08020 CUSHION, STEERING SHAFT

CUSHION, STEERING SHAFT

480 ₽
7

09280-17003 O-RING (ID:16.8,D:3.10)

O-RING (ID:16.8,D:3.10)

290 ₽
8

51661-19B10 BUSH, STEERING SHAFT LOWER (17X26X36.9)

BUSH, STEERING SHAFT LOWER (17X26X36.9)

5 450 ₽
9

51662-19A01 DUST SEAL, STEERING SHAFT (30X40X14.4)

DUST SEAL, STEERING SHAFT (30X40X14.4)

1 560 ₽
10

51663-24500 DUST SEAL, STEERING LOWER (12.2X38X12)

DUST SEAL, STEERING LOWER (12.2X38X12)

1 680 ₽
11-2

09160-12073 WASHER (12.5X32X2.3)

WASHER (12.5X32X2.3)

340 ₽
12

09162-12006 LOCK WASHER

LOCK WASHER

530 ₽
13

08319-21123 NUT

NUT

740 ₽
14

04111-20208 COTTER PIN

COTTER PIN

220 ₽
15

56211-27200-291 CLAMP, HANDLEBAR (BLACK)

CLAMP, HANDLEBAR (BLACK)

71 500 ₽
16

01570-08553 BOLT

BOLT

600 ₽
