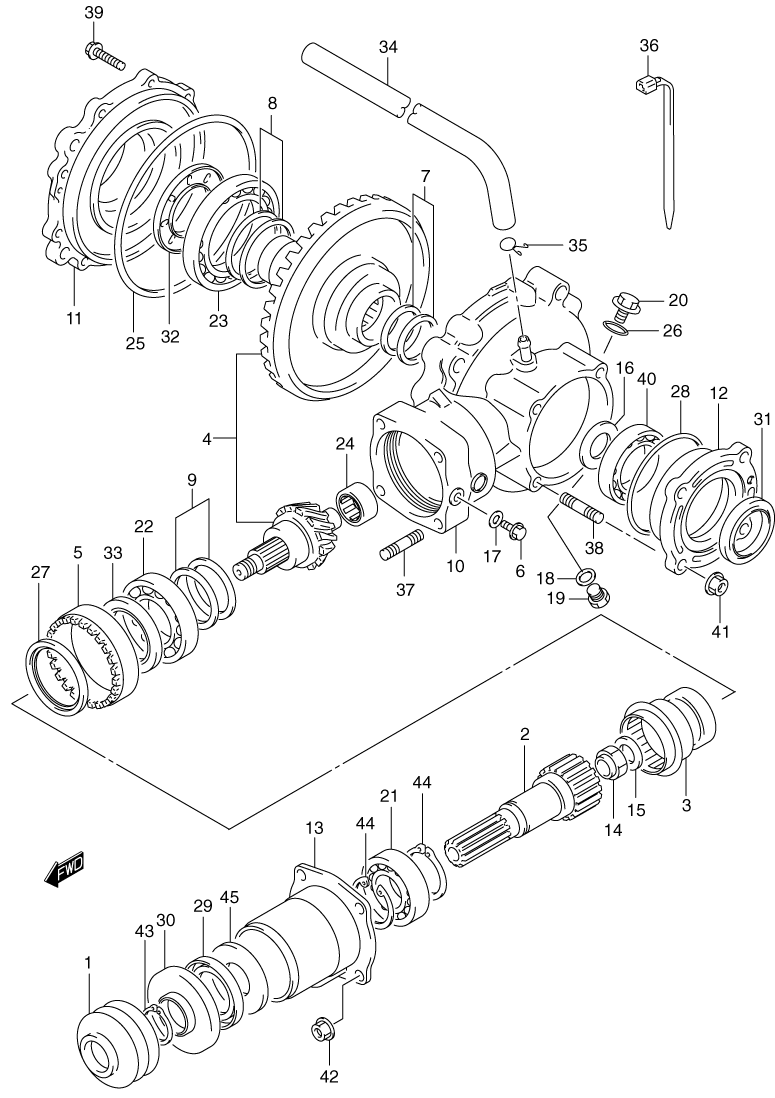

DIFFERENTIAL - REAR для Suzuki LT-F500FY QUADRUNNER - 2000 года выпуска

№

Артикул

Название
1

27153-44D62 BOOT, RR FINAL DRIVE

BOOT, RR FINAL DRIVE

2 670 ₽
2

27155-44D62 SHAFT, REAR FINAL

SHAFT, REAR FINAL

31 460 ₽
3

27172-18B61 COUPLING, REAR

COUPLING, REAR

23 740 ₽
4

27300-18860 GEAR SET, FINAL BEVEL (NT:10/36)

GEAR SET, FINAL BEVEL (NT:10/36)

0 ₽
5

27312-09F50 STOPPER, REAR FINAL

STOPPER, REAR FINAL

0 ₽
6

27313-18A00 PIN, BEARING STOPPER

PIN, BEARING STOPPER

580 ₽
7

27326-18810 SHIM SET, FINAL DRIVE GR (T:0.30/0.35/0.40/0.50/0.60)

SHIM SET, FINAL DRIVE GR (T:0.30/0.35/0.40/0.50/0.60)

2 230 ₽
8

27327-34810 SHIM SET, DRIVEN GEAR BRG (T:0.35/0.40/0.50/0.60)

SHIM SET, DRIVEN GEAR BRG (T:0.35/0.40/0.50/0.60)

5 500 ₽
9

27445-18820 SHIM SET, FINAL DRIVE GR (T:0.30/0.35/0.40/0.50/0.60)

SHIM SET, FINAL DRIVE GR (T:0.30/0.35/0.40/0.50/0.60)

5 260 ₽
10

27450-18B30 CASE, REAR FINAL GR

CASE, REAR FINAL GR

0 ₽
11

27461-44D30 CASE, REAR FINAL DRIVEN,RH

CASE, REAR FINAL DRIVEN,RH

0 ₽
12

27462-44D10 CASE, REAR FINAL DRIVEN,LH

CASE, REAR FINAL DRIVEN,LH

0 ₽
13

27470-44D61 HOUSING, RR FINAL DRIVE

HOUSING, RR FINAL DRIVE

84 490 ₽
14

09159-16003 NUT, REAR DRIVE PINION

NUT, REAR DRIVE PINION

600 ₽
15

09160-16029 WASHER, SEC DRIVE NUT (16X29X4)

WASHER, SEC DRIVE NUT (16X29X4)

910 ₽
16

09160-45004 WASHER, FINAL DRIVEN,LH (45X54X3)

WASHER, FINAL DRIVEN,LH (45X54X3)

0 ₽
17

09168-06023 GASKET, BRG STOPPER PIN (5.8X13X12)

GASKET, BRG STOPPER PIN (5.8X13X12)

350 ₽
18

09168-14002 GASKET, OIL DRAIN PLUG (13.8X18.8X0.4)

GASKET, OIL DRAIN PLUG (13.8X18.8X0.4)

290 ₽
19

09247-14001 PLUG, OIL DRAIN

PLUG, OIL DRAIN

910 ₽
20

09247-18001 PLUG, GEAR OIL FILLER

PLUG, GEAR OIL FILLER

1 220 ₽
21

09262-30101 BEARING, REAR SFT

BEARING, REAR SFT

9 880 ₽
22

27446-44D00 BEARING, FINAL DRIVE GR (40X80X18)

BEARING, FINAL DRIVE GR (40X80X18)

42 960 ₽
23

09262-70001 BEARING, FINAL DRIVEN,RH (70X110X13)

BEARING, FINAL DRIVEN,RH (70X110X13)

20 160 ₽
24

09263-20062 BEARING, FINAL DRIVE PILOT (20X34X18)

BEARING, FINAL DRIVE PILOT (20X34X18)

6 720 ₽
25

09280-00020 O RING, BEARING CASE,RH (ID:176.8,DD:3.6)

O RING, BEARING CASE,RH (ID:176.8,DD:3.6)

3 450 ₽
26

09280-18004 O RING, GEAR OIL FILLER (ID:17.8,DD:2.4)

O RING, GEAR OIL FILLER (ID:17.8,DD:2.4)

900 ₽
27

09280-80001 O RING, FINAL BRG STOPPER (ID:79.8,DD:2.4)

O RING, FINAL BRG STOPPER (ID:79.8,DD:2.4)

680 ₽
28

09280-90001 O RING, BEARING CASE,LH (ID:90.8,DD:2.4)

O RING, BEARING CASE,LH (ID:90.8,DD:2.4)

4 540 ₽
29

27156-09F50 SEAL, FINAL DRIVEN

SEAL, FINAL DRIVEN

2 600 ₽
30

27590-09F50 COLLAR, OUTPUT OIL SEAL

COLLAR, OUTPUT OIL SEAL

21 730 ₽
31

09283-42011 OIL SEAL, FINAL DRIVEN,LH (42X62X7.0)

OIL SEAL, FINAL DRIVEN,LH (42X62X7.0)

2 210 ₽
32

09283-48011 OIL SEAL, FINAL DRIVEN,RH (48X88X7.0)

OIL SEAL, FINAL DRIVEN,RH (48X88X7.0)

3 160 ₽
33

09283-49001 OIL SEAL, FINAL DRIVE (49X68X7.0)

OIL SEAL, FINAL DRIVE (49X68X7.0)

2 480 ₽
34

09352-70103-00B HOSE, BREATHER (7X10.2X2000) (L:2000->1140)

HOSE, BREATHER (7X10.2X2000) (L:2000->1140)

105 300 ₽
35

09401-10403 CLIP

CLIP

290 ₽
36

09407-18402 CLAMP (L:165)

CLAMP (L:165)

380 ₽
37

01421-08203 STUD BOLT, RR HOUSING

STUD BOLT, RR HOUSING

330 ₽
38

01421-10303 STUD BOLT, BRG CASE,LH

STUD BOLT, BRG CASE,LH

440 ₽
39

01550-08253 BOLT, BRG CASE,RH

BOLT, BRG CASE,RH

400 ₽
40

08113-60097 BEARING, DRIVEN GR,LH

BEARING, DRIVEN GR,LH

9 350 ₽
41

08316-10103 NUT, RR LH CASE

NUT, RR LH CASE

460 ₽
42

08319-31087 NUT, RR FINAL HOUSING

NUT, RR FINAL HOUSING

400 ₽
43

08331-31306 CIRCLIP, RR FINAL DRIVE

CIRCLIP, RR FINAL DRIVE

450 ₽
44

08331-41626 CIRCLIP, FINAL DR BRG

CIRCLIP, FINAL DR BRG

680 ₽
45

09181-30139 WASHER, REAR FINAL DRIVE (30X38X1.0)

WASHER, REAR FINAL DRIVE (30X38X1.0)

590 ₽
