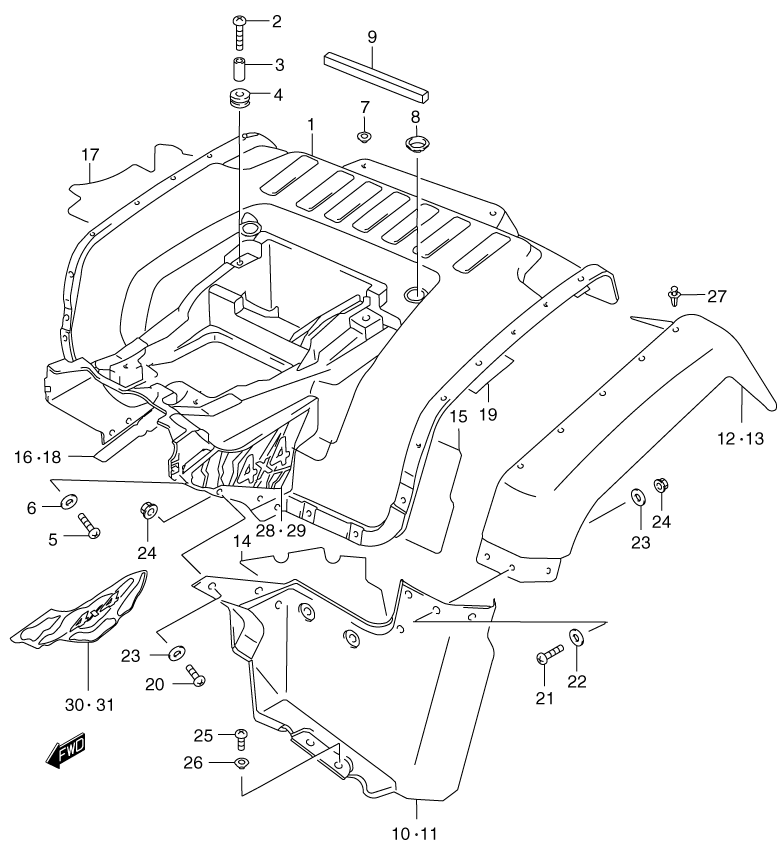

FENDER - REAR для Suzuki LT-F500FY QUADRUNNER - 2000 года выпуска
-
№АртикулНазвание
-
1-263111-09F02-Y9N FENDER, REAR (GREEN) (Y9N)FENDER, REAR (GREEN) (Y9N)
-
1-463111-09F02-Y9P FENDER, REAR (RED) (Y9P)FENDER, REAR (RED) (Y9P)
-
209118-06109 BOLT, CENTERBOLT, CENTER
-
309180-06120 SPACERSPACER
-
409320-11008 CUSHIONCUSHION
-
501570-06203 BOLT, SIDEBOLT, SIDE
-
609169-06021 WASHERWASHER
-
7-209169-08045 WASHER, REARWASHER, REAR
-
809308-25003 GROMMETGROMMET
-
947161-29B00 CUSHIONCUSHION
-
1063331-09F00-Y0J MUDGUARD, FRONT RH (GRAY)MUDGUARD, FRONT RH (GRAY)
-
1163341-09F00-Y0J MUDGUARD, FRONT LH (GRAY)MUDGUARD, FRONT LH (GRAY)
-
1263351-09F00-Y0J MUDGUARD, REAR RH (GRAY)MUDGUARD, REAR RH (GRAY)
-
1363361-09F00-Y0J MUDGUARD, REAR LH (GRAY)MUDGUARD, REAR LH (GRAY)
-
1463362-09F00 SHIELD, MUDGUARD FRONT LHSHIELD, MUDGUARD FRONT LH
-
1563263-09F00 SHIELD, REAR FENDERSHIELD, REAR FENDER
-
1663264-09F00 SHIELD, REAR FENDER NO.2SHIELD, REAR FENDER NO.2
-
1763265-09F00 SHIELD, REAR FENDER NO.3SHIELD, REAR FENDER NO.3
-
1863266-09F00 SHIELD, REAR FENDER NO.4SHIELD, REAR FENDER NO.4
-
1963267-09F00 SHIELD, REAR FENDER NO.5SHIELD, REAR FENDER NO.5
-
2009136-05038 SCREWSCREW
-
2109139-05037 SCREW, FRONT AND REARSCREW, FRONT AND REAR
-
2209160-08123 WASHER, FRONT AND REARWASHER, FRONT AND REAR
-
2309160-05046 WASHERWASHER
-
2409159-05026 NUTNUT
-
2509125-06092 SCREW, FRONT AND LOWERSCREW, FRONT AND LOWER
-
2609169-06057 WASHER, FRONT AND LOWERWASHER, FRONT AND LOWER
-
2709409-07333 CLIPCLIP
-
30-168171-09F20-BJ6 EMBLEM, REAR FENDER RH (FOR Y9N) (FOR GREEN)EMBLEM, REAR FENDER RH (FOR Y9N) (FOR GREEN)
-
30-268171-09F20-BJ7 EMBLEM, REAR FENDER RH (FOR Y9P) (FOR RED)EMBLEM, REAR FENDER RH (FOR Y9P) (FOR RED)
-
31-168181-09F20-BJ6 EMBLEM, REAR FENDER LH (FOR Y9N) (FOR GREEN)EMBLEM, REAR FENDER LH (FOR Y9N) (FOR GREEN)
-
31-268181-09F20-BJ7 EMBLEM, REAR FENDER LH (FOR Y9P) (FOR RED)EMBLEM, REAR FENDER LH (FOR Y9P) (FOR RED)
