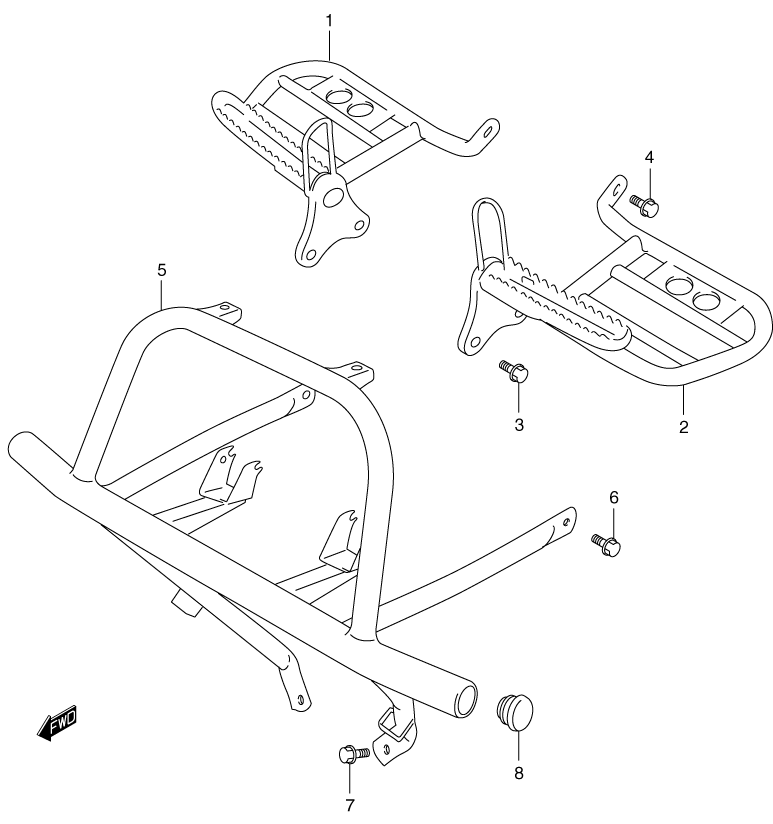

FOOTREST W/ BUMBER для Suzuki LT-F500FY QUADRUNNER - 2000 года выпуска
-
№АртикулНазвание
-
1-243510-09F10 FOOTREST, FRONT RHFOOTREST, FRONT RH
-
2-243520-09F10 FOOTREST, FRONT LHFOOTREST, FRONT LH
-
309103-10293 BOLT, FRONTBOLT, FRONT
-
401550-08163 BOLT, REARBOLT, REAR
-
5-143990-09F00-019 GRIP, FRONT (BLACK)GRIP, FRONT (BLACK)
-
6-201550-08203 BOLT, UPPERBOLT, UPPER
-
709103-08266 BOLT, LOWERBOLT, LOWER
-
843978-09F00 CAPCAP
