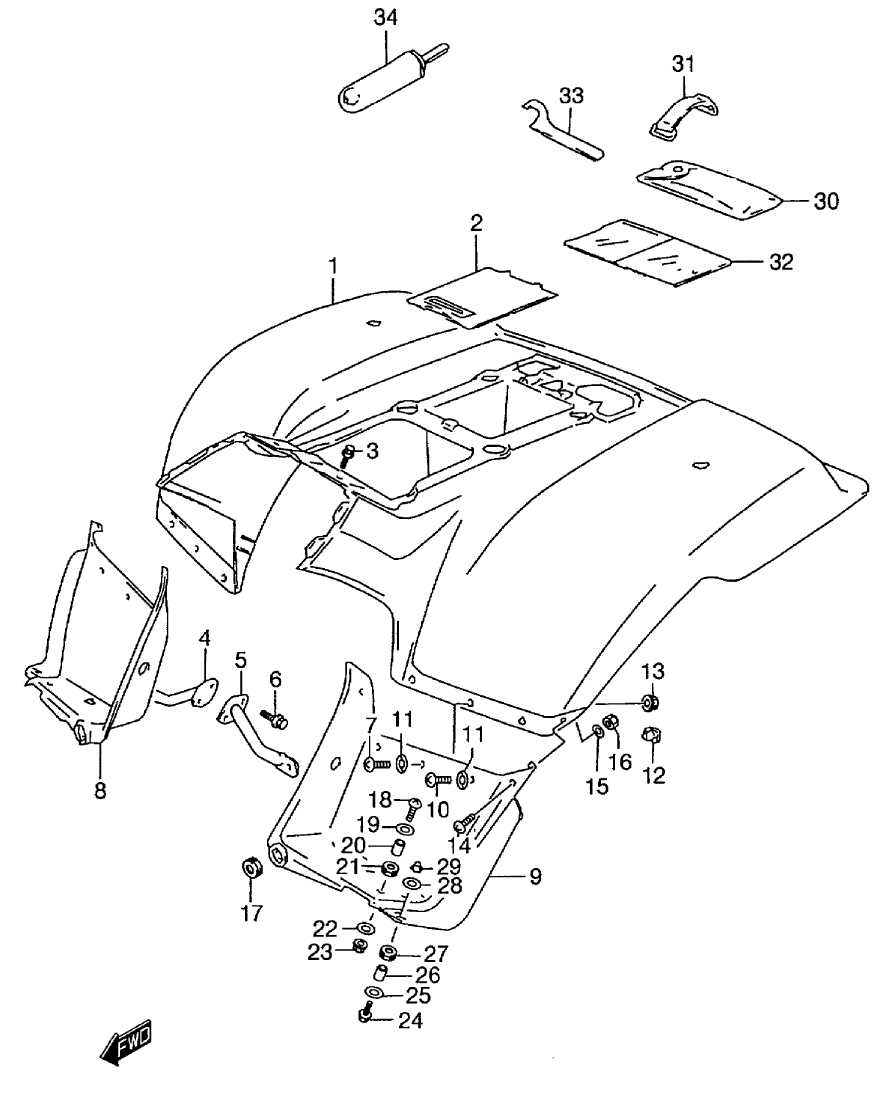

FENDER - REAR для Suzuki LT-F160K1 QUADRUNNER - 2001 года выпуска
-
№АртикулНазвание
-
163111-02C21-1LH FENDER, REAR (BLUE)FENDER, REAR (BLUE)
-
163111-02C21-25Y FENDER, REAR (YELLOW)FENDER, REAR (YELLOW)
-
163111-02C31-25Y FENDER, REAR (BLUE) (CANADA ONLY)FENDER, REAR (BLUE) (CANADA ONLY)
-
163111-02C31-291 FENDER, REAR (YELLOW) (CANADA ONLY)FENDER, REAR (YELLOW) (CANADA ONLY)
-
263171-02C00-291 COVER, FENDER (BLACK)COVER, FENDER (BLACK)
-
309118-06017 BOLTBOLT
-
463140-02C00 REINFORCEMENT, RHREINFORCEMENT, RH
-
563150-02C00 REINFORCEMENT, LHREINFORCEMENT, LH
-
601550-06123 BOLTBOLT
-
702142-06203 SCREWSCREW
-
863330-02C10-291 BODY, MUD GUARD RH (BLACK)BODY, MUD GUARD RH (BLACK)
-
963340-02C10-291 BODY, MUD GUARD LH (BLACK)BODY, MUD GUARD LH (BLACK)
-
1009136-06004 SCREWSCREW
-
1109160-06109 WASHER, MUD GUARDWASHER, MUD GUARD
-
1209146-06003 NUTNUT
-
1309319-31067 NUT, CENTERNUT, CENTER
-
1402142-05123 SCREWSCREW
-
1508322-01053 WASHERWASHER
-
1608319-31053 NUTNUT
-
1709320-08021 CUSHIONCUSHION
-
1802142-05203 SCREWSCREW
-
1909160-05037 WASHERWASHER
-
2009180-06248 SPACERSPACER
-
2109320-08013 CUSHIONCUSHION
-
2209160-05501 WASHERWASHER
-
2308319-31053 NUTNUT
-
2401550-05163 BOLTBOLT
-
2509160-05501 WASHERWASHER
-
2609180-06248 SPACERSPACER
-
2709320-08013 CUSHIONCUSHION
-
2809160-05037 WASHERWASHER
-
2908313-10053 NUTNUT
-
3009800-21019 TOOL ASSY.TOOL ASSY.
-
3109462-000E6 BANDBAND
-
3294980-01C01 BAG, MANUAL (150X296)BAG, MANUAL (150X296)
-
3309822-00004 CLAMP, WRENCHCLAMP, WRENCH
-
3496200-18A02 GAUAGE, AIRGAUAGE, AIR
