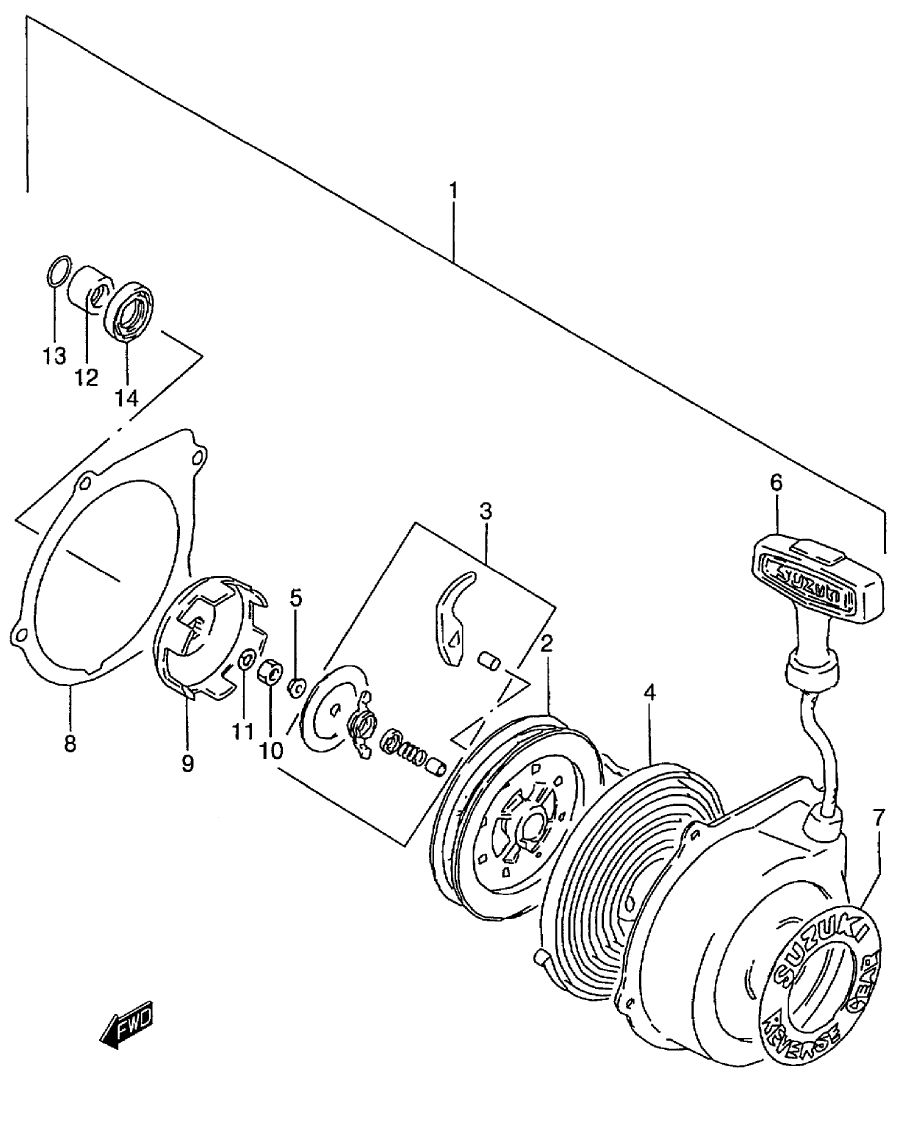

STARTER - RECOIL (OPT) для Suzuki LT-F160K1 QUADRUNNER - 2001 года выпуска
-
№АртикулНазвание
-
118000-02820 STARTER SET, RECOILSTARTER SET, RECOIL
-
218120-24400 ...REEL...REEL
-
318130-24400 ...RATCHET SET...RATCHET SET
-
418142-24400 ...SPRING, SPIRAL...SPRING, SPIRAL
-
508316-10063 ...NUT...NUT
-
618200-24400 ...ROPE ASSY...ROPE ASSY
-
768398-24410 ...EMBLEM...EMBLEM
-
818299-18A00 ...GASKET, RECOIL STARTER...GASKET, RECOIL STARTER
-
918411-18A03 ...CUP, STARTER...CUP, STARTER
-
1008310-00103 ...NUT...NUT
-
1108321-01103 ...LOCK WASHER...LOCK WASHER
-
1212359-18A02 ...SPACER...SPACER
-
1309280-12009 ...O RING (DIAMETER:1.9, INTER DIAMETER:12.6)...O RING (DIAMETER:1.9, INTER DIAMETER:12.6)
-
1409289-22008 ...OIL SEAL (22X35X7)...OIL SEAL (22X35X7)
