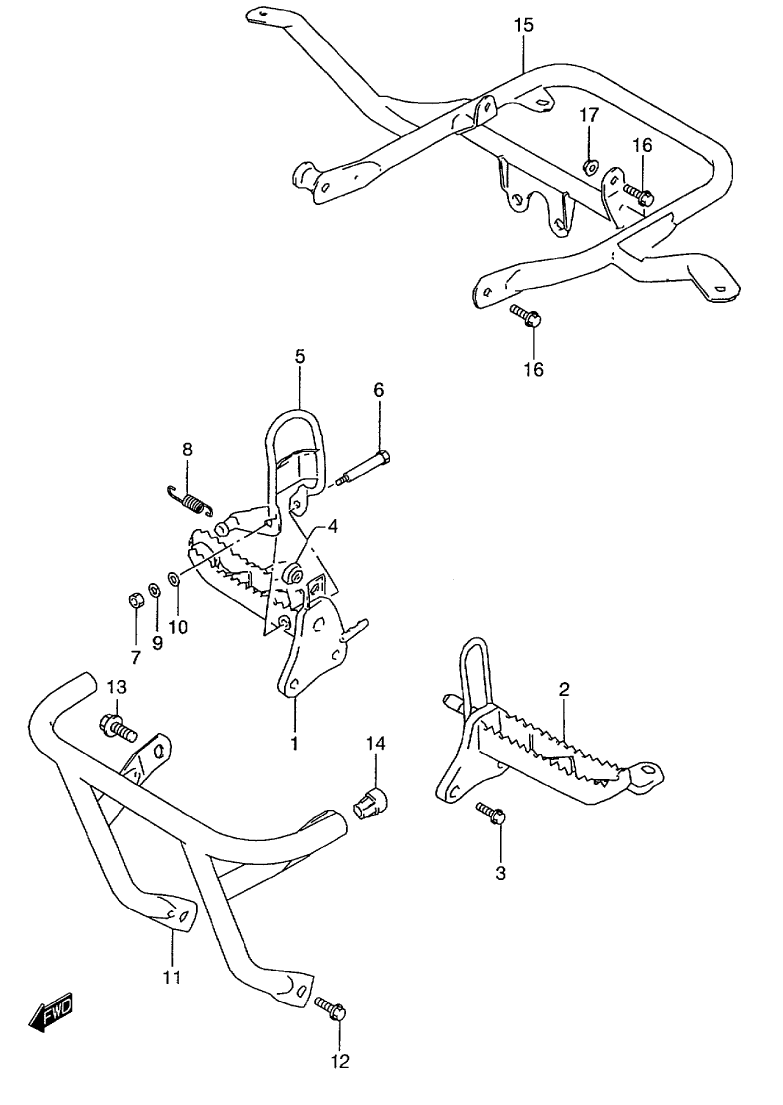

FOOTREST W/ BUMBER для Suzuki LT-F160K1 QUADRUNNER - 2001 года выпуска
-
№АртикулНазвание
-
143510-02C10-019 FOOTREST, FRONT RH (BLACK)FOOTREST, FRONT RH (BLACK)
-
243520-02C10-019 FOOTREST, FRONT LH (BLACK)FOOTREST, FRONT LH (BLACK)
-
309103-10201 BOLTBOLT
-
409321-100A7 CUSHION, STOPPERCUSHION, STOPPER
-
543590-02C00-019 GUARD, FOOTREST RH (BLACK)GUARD, FOOTREST RH (BLACK)
-
609111-06060 BOLT, GUARDBOLT, GUARD
-
708319-21065 NUTNUT
-
809443-13017 SPRINGSPRING
-
908322-01083 WASHER, FRONTWASHER, FRONT
-
1009160-06502 WASHER, REARWASHER, REAR
-
1143990-02C00-019 GRIP, FRONT (BLACK)GRIP, FRONT (BLACK)
-
1201550-08123 BOLT, FRONT LOWERBOLT, FRONT LOWER
-
1301550-08163 BOLT, FRONT UPPERBOLT, FRONT UPPER
-
1443978-02C00 CAPCAP
-
1543980-02C00-019 GRIP, REAR (BLACK)GRIP, REAR (BLACK)
-
1601550-08163 BOLT, REARBOLT, REAR
-
1708316-10083 NUT, REAR GRIP REARNUT, REAR GRIP REAR
