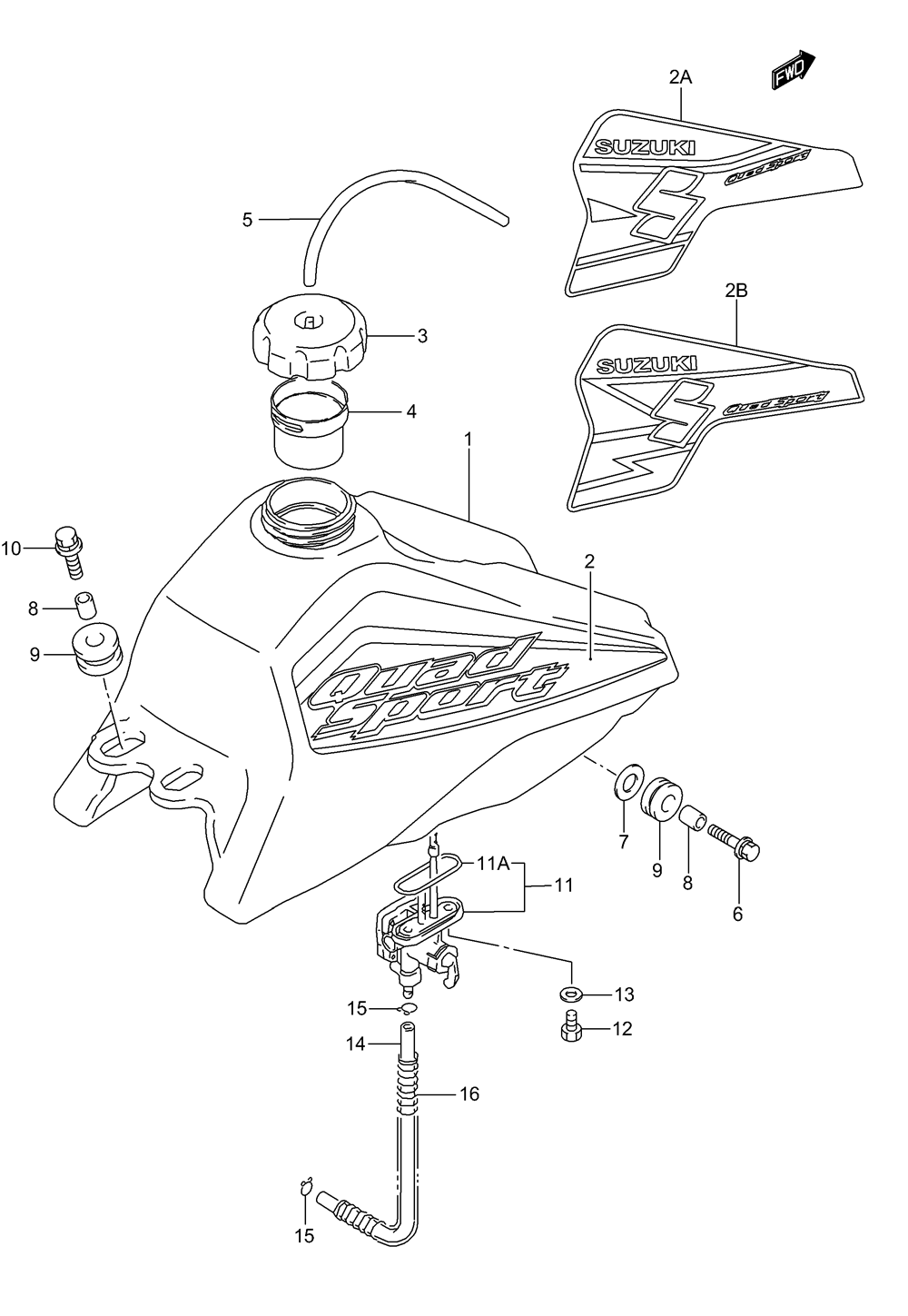

FUEL TANK для Suzuki LT80K QUADSPORT - 2002 года выпуска
-
№АртикулНазвание
-
144110-40B00-291 TANK, FUEL (BLACK)TANK, FUEL (BLACK)
-
268110-40B40-YU5 TAPE SET, FUEL TANK (FOR YU5)TAPE SET, FUEL TANK (FOR YU5)
-
344200-19A01 CAP ASSY, FUEL TANKCAP ASSY, FUEL TANK
-
444199-19A00 TUBE, INLETTUBE, INLET
-
509352-50823-600 HOSE, BREATHER (L:600!260)HOSE, BREATHER (L:600!260)
-
609118-08130 BOLT, FRONTBOLT, FRONT
-
709160-08136 WASHERWASHER
-
809180-08191 SPACERSPACER
-
909320-12016 CUSHIONCUSHION
-
1009116-06050 BOLT, REARBOLT, REAR
-
1144300-40B00 COCK ASSY, FUELCOCK ASSY, FUEL
-
11A44348-28070 O RINGO RING
-
1209128-06065 SCREW, FUEL COCKSCREW, FUEL COCK
-
1309168-06026 GASKETGASKET
-
1409352-50823-600 HOSE (L:600!220)HOSE (L:600!220)
-
1509401-08401 CLIPCLIP
-
1609440-10009 SPRINGSPRING
