SEAT для Suzuki LT80K QUADSPORT - 2002 года выпуска
-

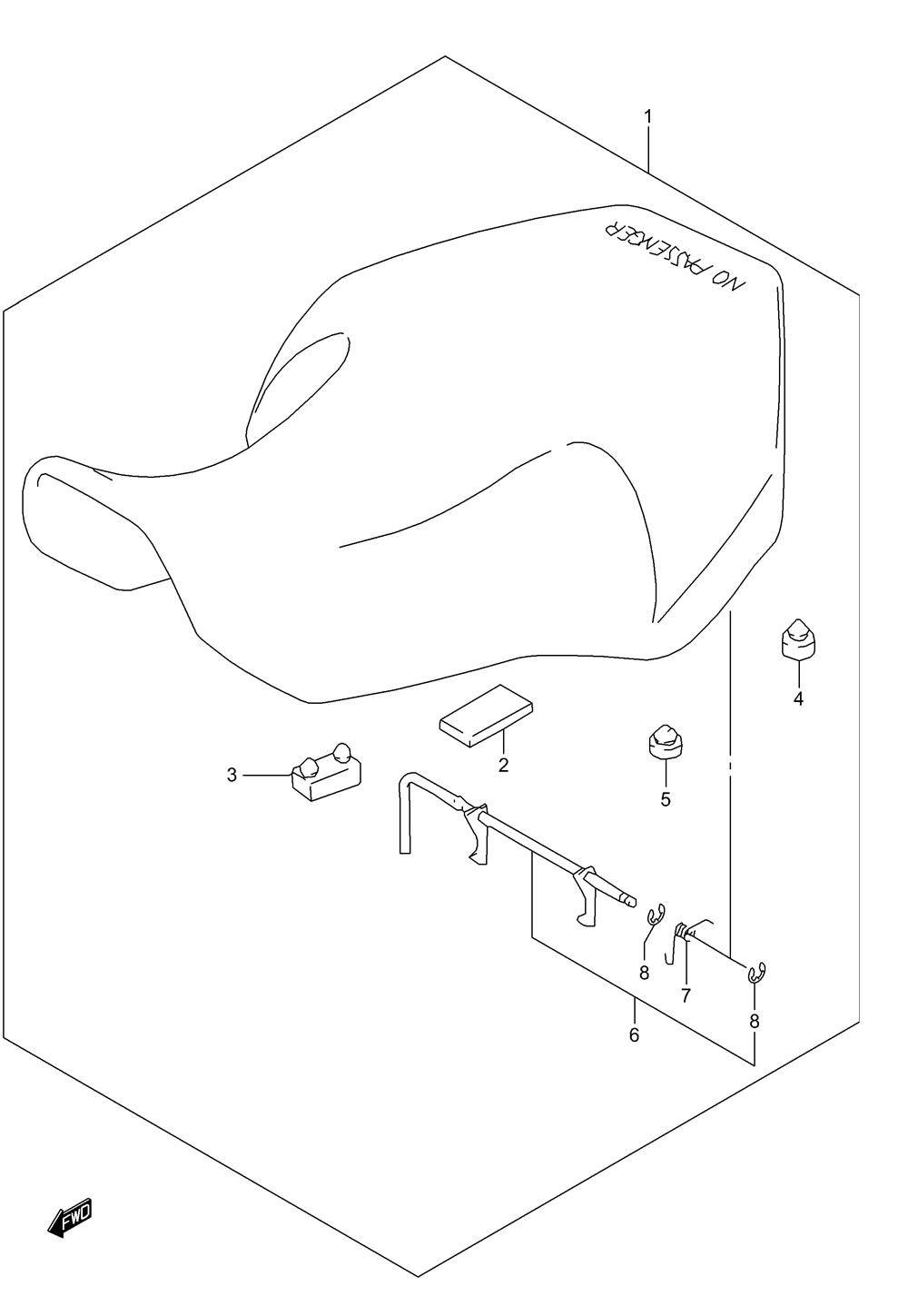

№АртикулНазвание
-
145100-40B10-W56 SEAT SET (BLACK) (US ONLY)SEAT SET (BLACK) (US ONLY)
-
145100-40B20-W56 SEAT SET (BLACK) (CANADA)SEAT SET (BLACK) (CANADA)
-
294982-29400 CUSHION, BATTERYCUSHION, BATTERY
-
309321-08006 CUSHIONCUSHION
-
409321-10011 CUSHIONCUSHION
-
509321-10012 CUSHIONCUSHION
-
645210-40B00 CLAMP, SEATCLAMP, SEAT
-
745135-24500 SPRINGSPRING
-
808332-11063 E RINGE RING
