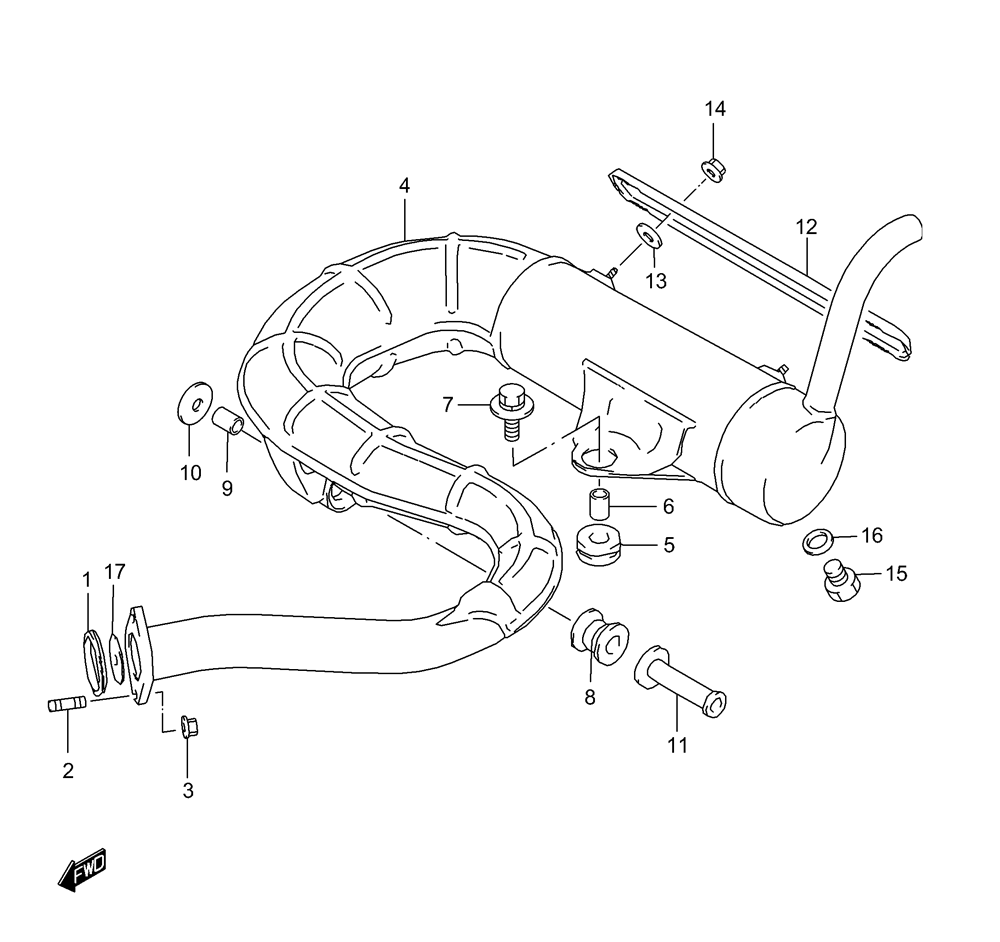

MUFFLER для Suzuki LT80K QUADSPORT - 2002 года выпуска
-
№АртикулНазвание
-
114181-23E00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
201421-06163 STUD BOLT (GREEN)STUD BOLT (GREEN)
-
308361-15063 NUTNUT
-
414310-40B20 BODY, MUFFLERBODY, MUFFLER
-
509320-13007 CUSHIONCUSHION
-
609180-08202 SPACER (8.5X14X14)SPACER (8.5X14X14)
-
709118-08080 BOLT (8X35)BOLT (8X35)
-
809320-12043 CUSHIONCUSHION
-
909180-08194 SPACER (8.5X12X17.5)SPACER (8.5X12X17.5)
-
1009160-08137 WASHER (8.5X28X3.2)WASHER (8.5X28X3.2)
-
1114770-40B00 SPACER, MUFFLER SUPPORTSPACER, MUFFLER SUPPORT
-
1214780-40B01 COVER, MUFFLERCOVER, MUFFLER
-
1309168-06122 GASKETGASKET
-
1408319-31063 NUTNUT
-
1509247-12104 PLUG, MUFFLER DRAINPLUG, MUFFLER DRAIN
-
1609168-12002 GASKETGASKET
-
1714159-40B00 PLATE, EXHAUST PIPEPLATE, EXHAUST PIPE
Все узлы модели:
- AIR CLEANER
- BRAKE - FRONT
- BRAKE - REAR PEDAL
- CARBURETOR
- COOLING FAN
- CRANKCASE
- CRANKCASE LEFT COVER
- CRANKSHAFT W/ PISTON
- CYLINDER
- ELECTRICAL
- ELECTRICAL - WIRING HARNESS
- FENDER - FRONT
- FENDER - REAR
- FOOTREST W/ BUMBER (CANADA ONLY)
- FOOTREST W/ BUMBER (US ONLY)
- FRAME
- FUEL TANK
- GASKET SET
- HANDLEBAR - LEVERS / SWITCHES
- HANDLEBAR W/ CABLES
- KNUCKLE W/ TIE RODS
- LABELS
- MAGNETO
- • MUFFLER
- OIL PUMP
- OIL TANK
- OPTIONAL
- SEAT
- SHOCK ABSORBER - REAR
- STARTER - RECOIL (OPT)
- STARTING MOTOR
- STEERING SHAFT
- SUSPENSION - FRONT ARM W/ SHOCK
- TRANSMISSION (1)
- TRANSMISSION (2)
- WHEEL - FRONT
- WHEEL - REAR
