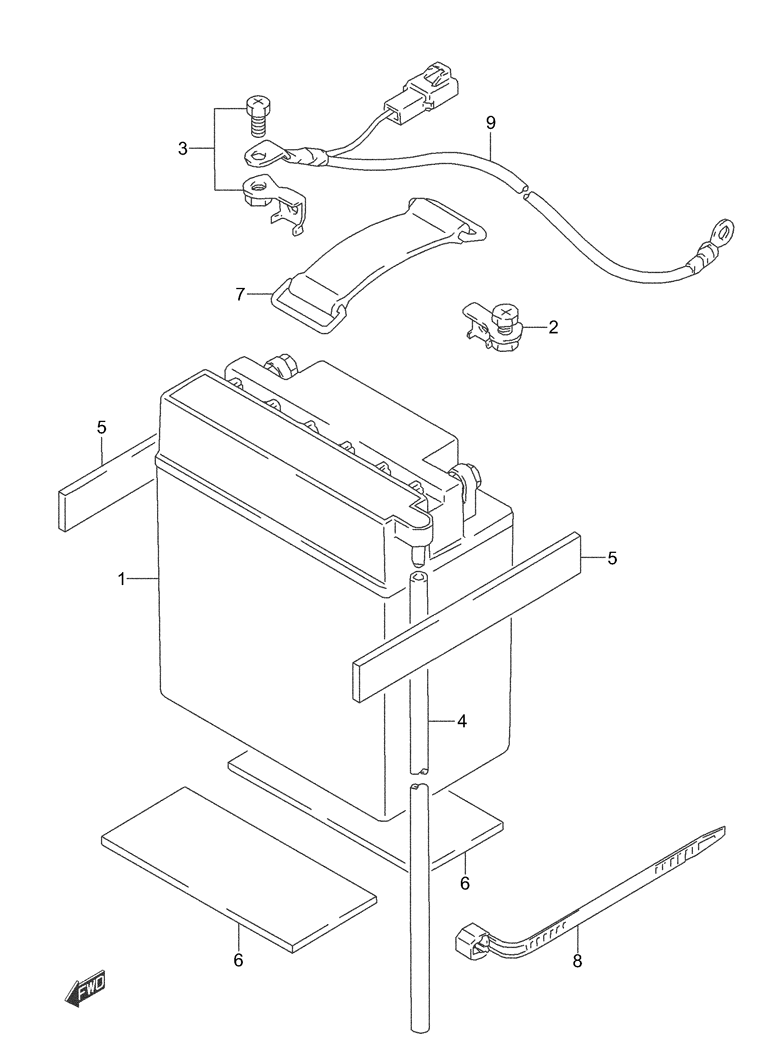

BATTERY для Suzuki LT160 QUADRUNNER - 2003 года выпуска
-
№АртикулНазвание
-
133610-02C10 BATTERY ASSY (12V,9AH)BATTERY ASSY (12V,9AH)
-
233621-02C00 TERMINAL, BATTERYTERMINAL, BATTERY
-
333622-02C00 TERMINAL, BATTERYTERMINAL, BATTERY
-
433680-16A10 HOSE, BATTERY EXHAUSTHOSE, BATTERY EXHAUST
-
533651-37000 PROTECTOR (170X95X3)PROTECTOR (170X95X3)
-
633651-37000 PROTECTOR (170X95X3)PROTECTOR (170X95X3)
-
709462-000E6 BAND, BATTERYBAND, BATTERY
-
809407-14403 CLAMPCLAMP
-
933860-02C00 LEAD WIRE, BATTERY MINUSLEAD WIRE, BATTERY MINUS
