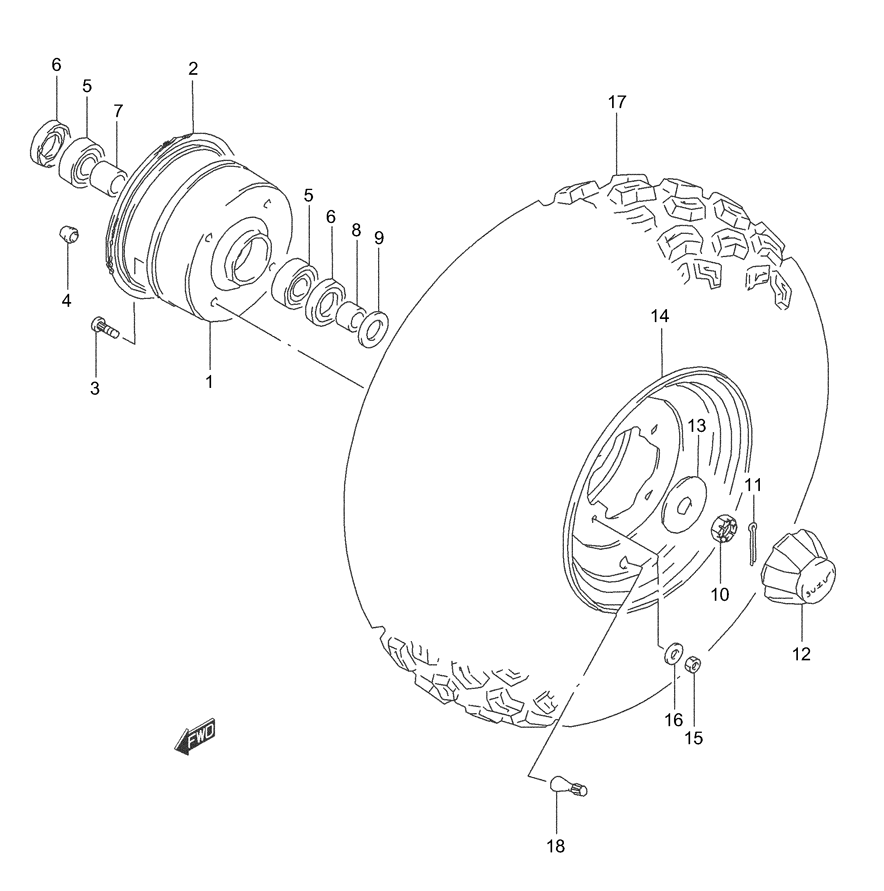

WHEEL - FRONT для Suzuki LT160 QUADRUNNER - 2003 года выпуска
-
№АртикулНазвание
-
154111-02C10-13L HUB, FRONT (SILVER)HUB, FRONT (SILVER)
-
254124-02C00 DUST SEAL, DRUM BRAKE (133X158X15.8)DUST SEAL, DRUM BRAKE (133X158X15.8)
-
309119-08073 BOLT, FRONT HUB (8X22)BOLT, FRONT HUB (8X22)
-
454265-02C00 PLUG, BRAKE HOLEPLUG, BRAKE HOLE
-
508120-62037 BEARINGBEARING
-
609284-22002 DUST SEAL (22.2X40X8)DUST SEAL (22.2X40X8)
-
754731-02C00 SPACER, FRONT HUB (17.6X22.2X16)SPACER, FRONT HUB (17.6X22.2X16)
-
854741-189A0 SPACER, FRONT AXLESPACER, FRONT AXLE
-
908322-01163 WASHERWASHER
-
1008314-40163 NUTNUT
-
1104111-40308 COTTER PINCOTTER PIN
-
1254725-39D00 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
1364726-40B00 HOLDER, CENTER CAPHOLDER, CENTER CAP
-
1455310-02C00-13L RIM, FRONT WHEEL (8X5.5AT) (SILVER)RIM, FRONT WHEEL (8X5.5AT) (SILVER)
-
1508316-10083 NUT, WHEEL SETNUT, WHEEL SET
-
1608322-01083 WASHERWASHER
-
1755100-02C30 TIRE, FRONT (AT20X7-8) (GOLDEN BOY)TIRE, FRONT (AT20X7-8) (GOLDEN BOY)
-
1843130-78030 VALVE ASSY, WHEEL RIM (TR413)VALVE ASSY, WHEEL RIM (TR413)
