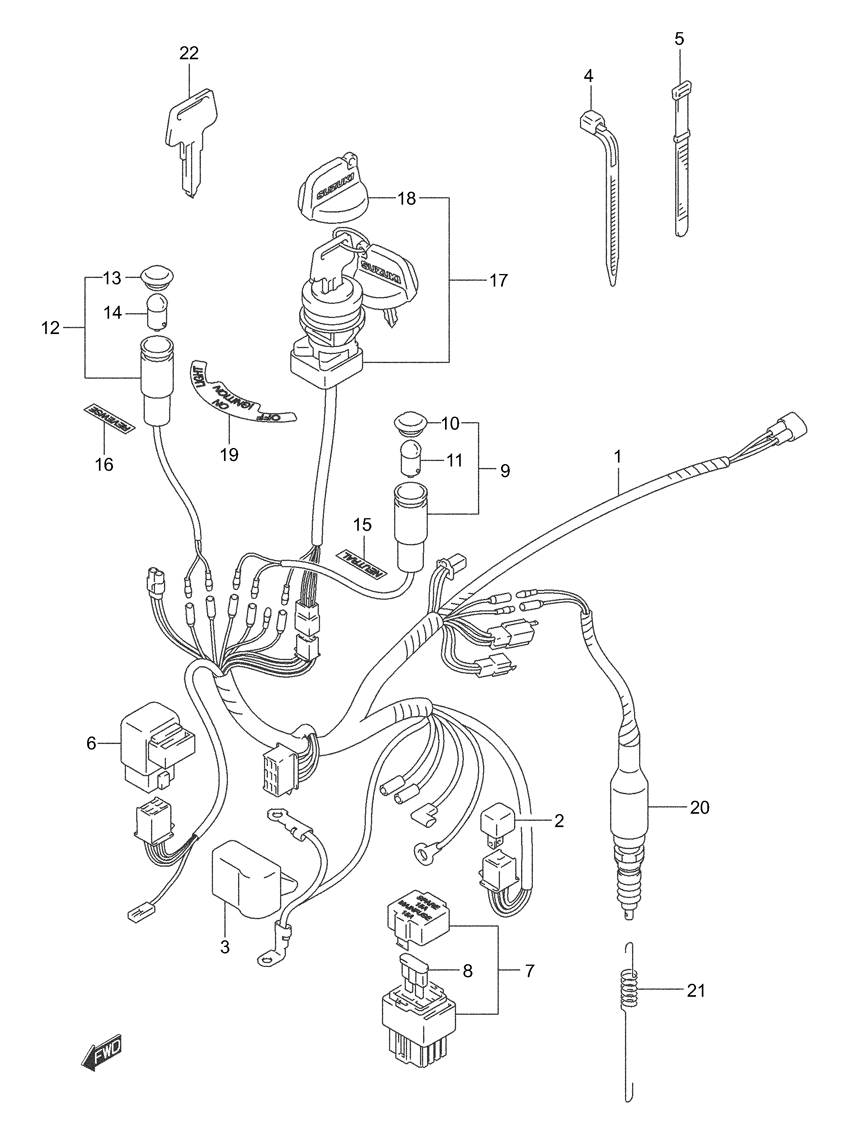

ELECTRICAL - WIRING HARNESS для Suzuki LT160 QUADRUNNER - 2003 года выпуска
-
№АртикулНазвание
-
136610-02C60 WIRING HARNESSWIRING HARNESS
-
232800-16A00 RECTIFIER ASSYRECTIFIER ASSY
-
333624-02C00 CAP, BATTERY (+)CAP, BATTERY (+)
-
409407-14403 CLAMP (L:125)CLAMP (L:125)
-
409407-18402 CLAMP (L:165)CLAMP (L:165)
-
409407-25401 CLAMP (L:235)CLAMP (L:235)
-
509407-12402 CLAMPCLAMP
-
638740-24X50 RELAY, NEUTRAL STARTRELAY, NEUTRAL START
-
736740-04701 BOX ASSY, FUSEBOX ASSY, FUSE
-
809481-15101 FUSE (15A)FUSE (15A)
-
936320-02C00 LAMP ASSY, NEUTRALLAMP ASSY, NEUTRAL
-
1036321-43000 LENSLENS
-
1109471-12001 BULB (12V,3.4W)BULB (12V,3.4W)
-
1236360-02C00 LAMP ASSY, REVERSELAMP ASSY, REVERSE
-
1336361-43200 LENSLENS
-
1409471-12001 BULB (12V,3.4W)BULB (12V,3.4W)
-
1536367-02C00 LABEL, NEUTRALLABEL, NEUTRAL
-
1636367-02C10 LABEL, REVERSELABEL, REVERSE
-
1737110-02C00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1837142-19B00 MASCOT, KEYMASCOT, KEY
-
1937139-02C01 LABEL, CONTRAL INDENTIFICATIONLABEL, CONTRAL INDENTIFICATION
-
2037740-25C00 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
2109443-06058 SPRING, STOP LAMPSPRING, STOP LAMP
-
2237146-19B00 KEY, BLANK (TYPEC,A-68)KEY, BLANK (TYPEC,A-68)
-
2237146-19B10 KEY, BLANK (TYPED,A-69)KEY, BLANK (TYPED,A-69)
