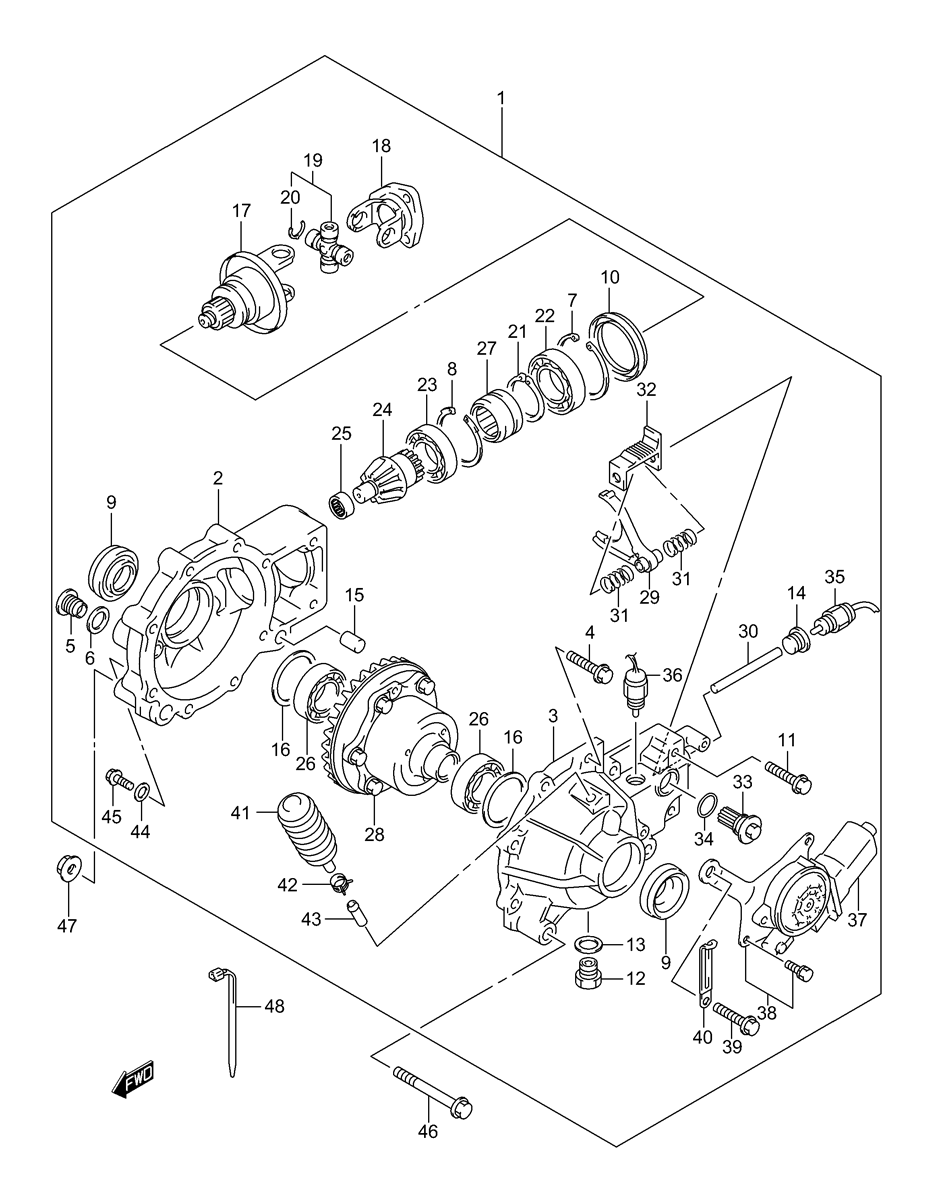

DIFFERENTIAL - FRONT (BUILT AFTER 11/2005) для Suzuki LT-F500F VISION 4X4 MANUAL - 2004 года выпуска
-
№АртикулНазвание
-
127400-03G13 CASE ASSY, FRONT DIFFERENTIALCASE ASSY, FRONT DIFFERENTIAL
-
227451-38FB1 HOUSING FINAL DRIVE, FRONTHOUSING FINAL DRIVE, FRONT
-
327461-03GA1 COVER FINAL DRIVE, FRONTCOVER FINAL DRIVE, FRONT
-
427401-38FA1 BOLT (8X25)BOLT (8X25)
-
527409-38FA0 PLUGPLUG
-
627407-38FA0 WASHERWASHER
-
727403-38FA0 RING SNAPRING SNAP
-
827403-38FB0 RING SNAPRING SNAP
-
927406-38FD0 OIL SEALOIL SEAL
-
1027406-38FB0 OIL SEALOIL SEAL
-
1127401-03GC0 BOLT (6X12)BOLT (6X12)
-
1227409-38FB0 PLUGPLUG
-
1327407-38FB0 WASHERWASHER
-
1427409-03GA1 PLUGPLUG
-
1527404-31GA0 COLLARCOLLAR
-
1627445-38FA0 SHIM SETSHIM SET
-
1727130-03GA0 YOKE ASSYYOKE ASSY
-
1827161-03GA1 YOKE, PROP SHAFT JOINTYOKE, PROP SHAFT JOINT
-
1927200-19810 JOINT SET, UNIVERSALJOINT SET, UNIVERSAL
-
2009380-20016 CIRCLIPCIRCLIP
-
2127403-38FC0 SNAP RINGSNAP RING
-
2227405-38FA0 BEARINGBEARING
-
2327405-38FB0 BEARINGBEARING
-
2427311-03GA0 PINION, DRIVEPINION, DRIVE
-
2527405-38FC0 BEARINGBEARING
-
2627405-38FD0 BEARINGBEARING
-
2727371-38FA0 SLEEVESLEEVE
-
2827320-03GA0 GEAR ASSYGEAR ASSY
-
2927941-03GA0 FORK, SHIFTFORK, SHIFT
-
3027921-03GA0 ROD, SHIFTROD, SHIFT
-
3127402-03GA0 SPRING, SHIFTSPRING, SHIFT
-
3227911-03GA0 BRACKET, RODBRACKET, ROD
-
3327931-03GA0 GEAR, SHIFTGEAR, SHIFT
-
3427406-03GA0 SEALSEAL
-
3527425-03GA0 SWITCH ASSY, 2WDSWITCH ASSY, 2WD
-
3627425-03GB0 SWITCH ASSY, 4WDSWITCH ASSY, 4WD
-
3727421-03GA0 DVC ASSYDVC ASSY
-
3827420-03GA0 BRACKET SET, ACTUATORBRACKET SET, ACTUATOR
-
3927401-03GA0 BOLT (8X45)BOLT (8X45)
-
4027403-03GA0 CLIPCLIP
-
4127491-38F00 CASE, BREATHERCASE, BREATHER
-
4209401-08411 CLAMPCLAMP
-
4309364-08003 PIPE, BREATHERPIPE, BREATHER
-
4427407-38FD0 WASHER, LEVEL PLUGWASHER, LEVEL PLUG
-
4527409-38FC0 PLUG, LEVELPLUG, LEVEL
-
4609103-10148 BOLT, FRONT DIFFERENTIALBOLT, FRONT DIFFERENTIAL
-
4708319-31107 NUT, FRONT DIFFERENTIALNUT, FRONT DIFFERENTIAL
-
4809407-19401 CLAMP (L:190)CLAMP (L:190)
