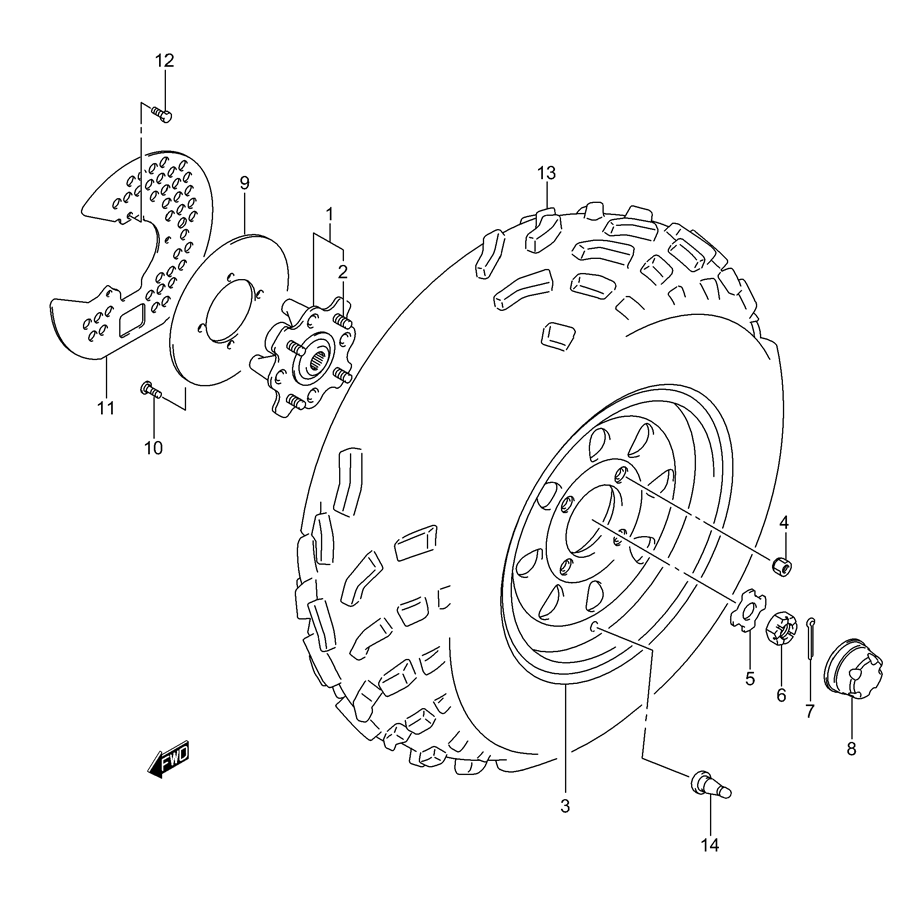

WHEEL - FRONT для Suzuki LT-F500F VISION 4X4 MANUAL - 2004 года выпуска
-
№АртикулНазвание
-
154110-03G10 HUB, FRONT WHEELHUB, FRONT WHEEL
-
209119-10049 BOLT (10X30)BOLT (10X30)
-
355311-03G00-12Z RIM, FRONT WHEEL (12X6.5AT) (SILVER)RIM, FRONT WHEEL (12X6.5AT) (SILVER)
-
409140-10021 NUTNUT
-
564723-09F00 WASHERWASHER
-
609141-18010 NUT, HUBNUT, HUB
-
704111-40408 PIN, COTTERPIN, COTTER
-
854725-09F01 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
959211-38F20 DISC, FRONT BRAKEDISC, FRONT BRAKE
-
1009106-08155 BOLT, BRAKE DISCBOLT, BRAKE DISC
-
1159231-38F01 COVER, FRONT DISCCOVER, FRONT DISC
-
1209103-06083 BOLTBOLT
-
1355110-03G00 TIRE, FRONT (AT25X8-12) (DUNLOP)TIRE, FRONT (AT25X8-12) (DUNLOP)
-
1443130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
