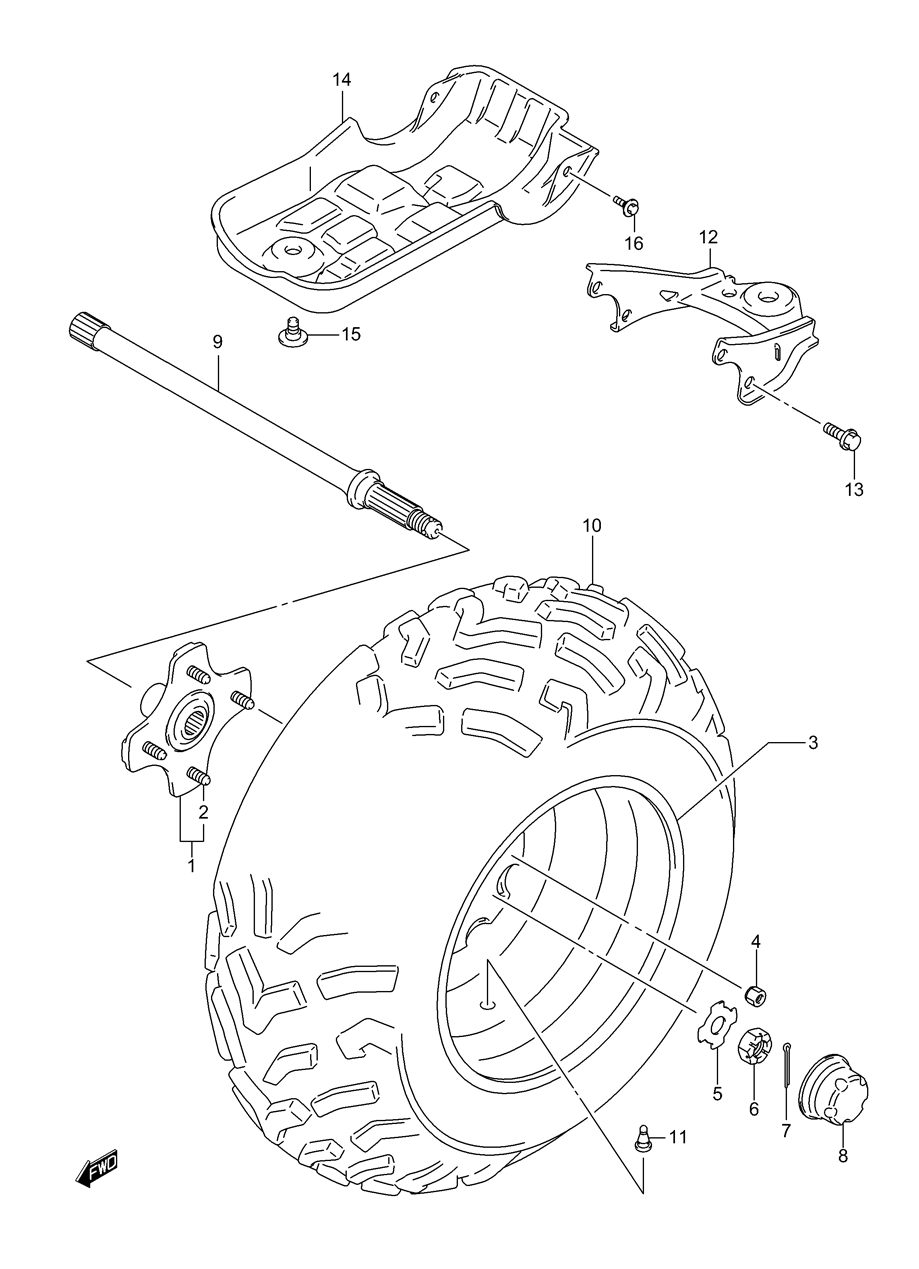

WHEEL - LEFT REAR для Suzuki LT-F500F VISION 4X4 MANUAL - 2004 года выпуска
-
№АртикулНазвание
-
164110-38F22 HUB, REAR WHEEL LEFT HANDHUB, REAR WHEEL LEFT HAND
-
209119-10049 BOLT (10X30)BOLT (10X30)
-
365311-03G00-12Z RIM, REAR WHEEL (12X7.5AT) (SILVER)RIM, REAR WHEEL (12X7.5AT) (SILVER)
-
409140-10021 NUTNUT
-
564723-09F00 WASHERWASHER
-
609141-18010 NUT, HUBNUT, HUB
-
704111-40408 COTTER PINCOTTER PIN
-
854725-09F01 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
964712-38F10 AXLE, REAR LEFT HANDAXLE, REAR LEFT HAND
-
1065110-38F20 TIRE, REAR (AT25X10-12) (DUNLOP)TIRE, REAR (AT25X10-12) (DUNLOP)
-
1143130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
1295210-38F00 PLATE, TRAILER TOWPLATE, TRAILER TOW
-
1309103-10344 BOLTBOLT
-
1461391-38F00 PROTECTOR, FINAL CASEPROTECTOR, FINAL CASE
-
1561393-09F00 BOLT, FRONTBOLT, FRONT
-
1609111-06061 BOLT, REARBOLT, REAR
