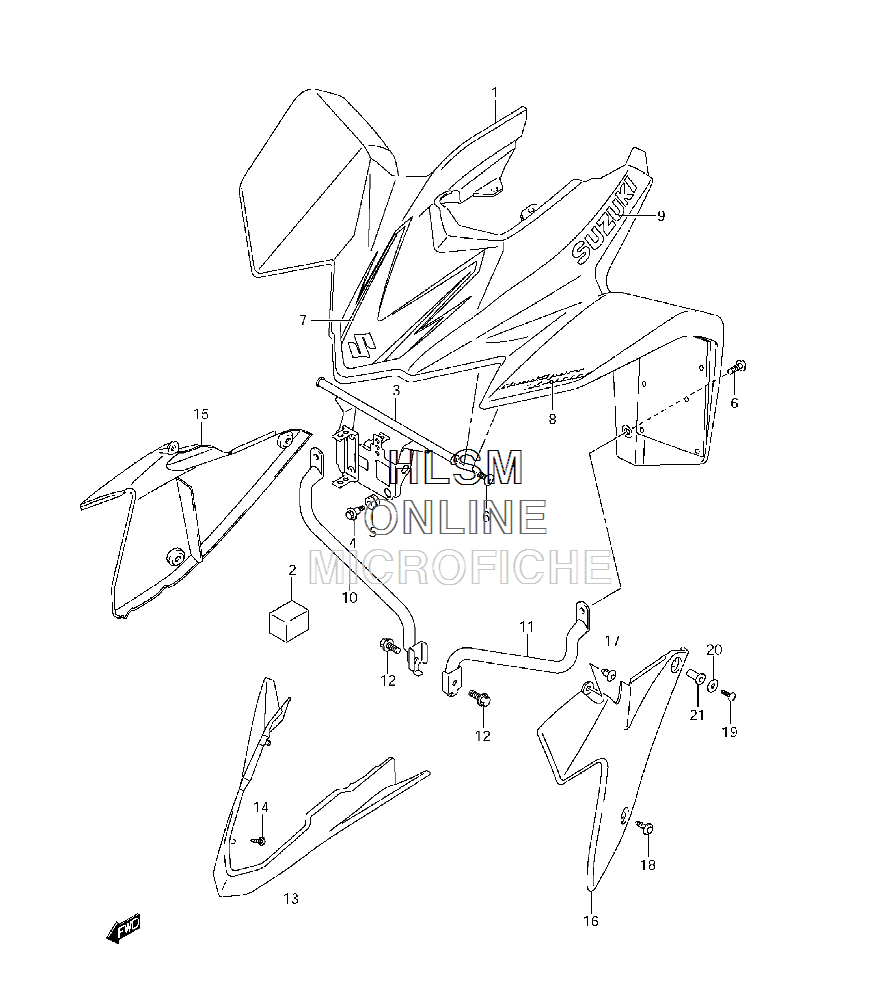

FENDER - FRONT для Suzuki LT-Z400 QuadSport Z400 - 2009 года выпуска
-
№АртикулНазвание
-
153111-33H00-30H FENDER, FRONT (WHITE)FENDER, FRONT (WHITE)
-
153111-33H00-YU1 FENDER, FRONT (YELLOW)FENDER, FRONT (YELLOW)
-
244558-33H00 CUSHION, GUARDCUSHION, GUARD
-
347410-33H00 HOLDER, ELECTRIC PARTSHOLDER, ELECTRIC PARTS
-
409111-06092 BOLTBOLT
-
509320-08068 CUSHIONCUSHION
-
609139-06158 SCREWSCREW
-
768155-33H00-FVG TAPE, FRONT (FOR 30H)TAPE, FRONT (FOR 30H)
-
768155-33H00-FVH TAPE, FRONT (FOR YU1)TAPE, FRONT (FOR YU1)
-
868151-33H00-FVJ EMBLEM, FRONT LEFT HAND (FOR 30H)EMBLEM, FRONT LEFT HAND (FOR 30H)
-
868151-33H00-DCP EMBLEM, FRONT LEFT HAND (FOR YU1)EMBLEM, FRONT LEFT HAND (FOR YU1)
-
968661-29F00-8YM EMBLEM, REAR (FOR 30H)EMBLEM, REAR (FOR 30H)
-
968661-29F00-GY8 EMBLEM, REAR (FOR YU1)EMBLEM, REAR (FOR YU1)
-
1053210-33H00 BRACKET, FENDER RIGHT HANDBRACKET, FENDER RIGHT HAND
-
1153220-33H00 BRACKET, FENDER LEFT HANDBRACKET, FENDER LEFT HAND
-
1209103-08431 BOLTBOLT
-
1353119-45G00-30H COVER, HEADLAMP (WHITE)COVER, HEADLAMP (WHITE)
-
1353119-45G00-YU1 COVER, HEADLAMP (YELLOW)COVER, HEADLAMP (YELLOW)
-
1403541-0516A SCREWSCREW
-
1553112-33H00-30H COVER, SIDE RIGHT HAND (WHITE)COVER, SIDE RIGHT HAND (WHITE)
-
1553112-33H00-YU1 COVER, SIDE RIGHT HAND (YELLOW)COVER, SIDE RIGHT HAND (YELLOW)
-
1653122-33H00-30H COVER, SIDE LEFT HAND (WHITE)COVER, SIDE LEFT HAND (WHITE)
-
1653122-33H00-YU1 COVER, SIDE LEFT HAND (YELLOW)COVER, SIDE LEFT HAND (YELLOW)
-
1709409-07333 CLIP, UPPERCLIP, UPPER
-
1809409-08327 CLIP, LOWERCLIP, LOWER
-
1902142-0520B SCREWSCREW
-
2009160-05046 WASHERWASHER
-
2109159-05045 NUTNUT
