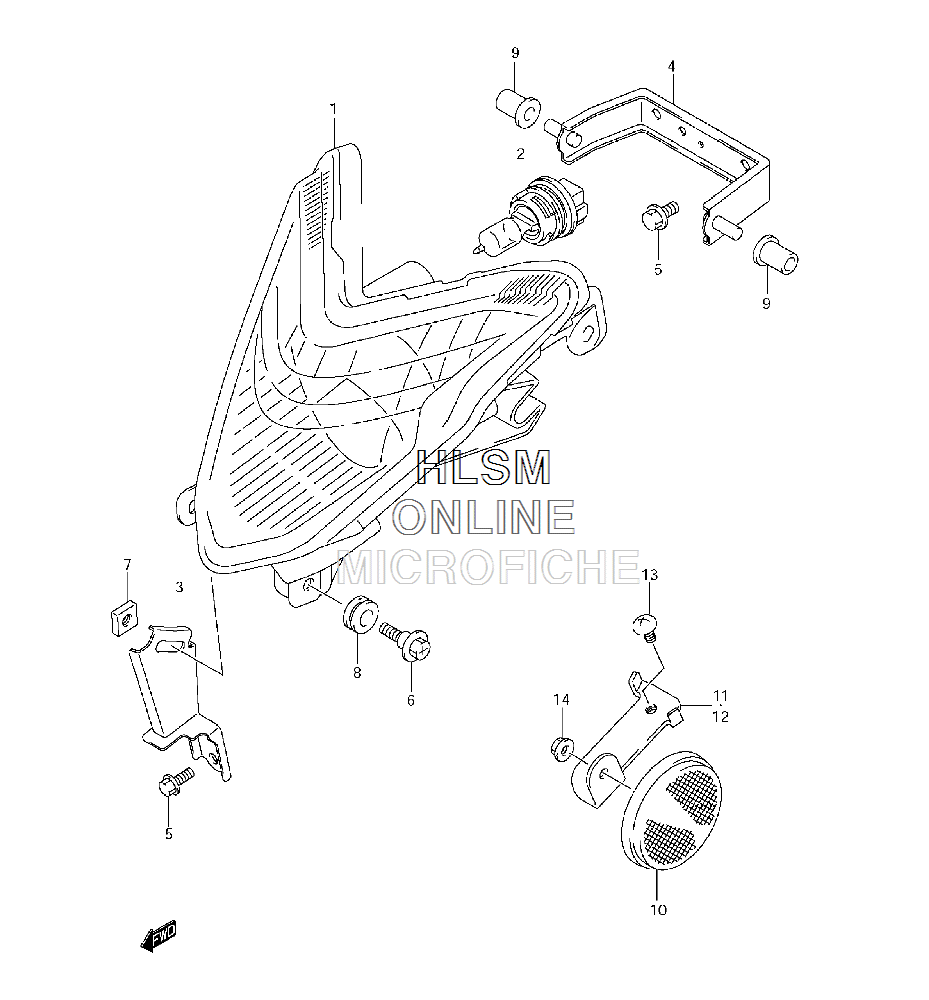

HEADLAMP для Suzuki LT-Z400 QuadSport Z400 - 2009 года выпуска

№

Артикул

Название
1

35100-45G01-999 HEADLAMP ASSY

HEADLAMP ASSY

1 233 700 ₽
2

09471-12217 BULB (14V40/40W)

BULB (14V40/40W)

8 630 ₽
3

35150-33H01 BRACKET, HEADLAMP ADJUST

BRACKET, HEADLAMP ADJUST

3 720 ₽
4

35160-33H00 BRACKET, HEADLAMP MOUNT

BRACKET, HEADLAMP MOUNT

4 940 ₽
5

01550-0612A BOLT, BRACKET

BOLT, BRACKET

340 ₽
6

09139-06118 SCREW, HEADLAMP (6X22.5)

SCREW, HEADLAMP (6X22.5)

590 ₽
7

09152-06023 NUT, HEADLAMP ADJUST

NUT, HEADLAMP ADJUST

520 ₽
8

09320-10501 CUSHION, HEADLAMP

CUSHION, HEADLAMP

920 ₽
9

09320-07016 CUSHION, HEADLAMP

CUSHION, HEADLAMP

660 ₽
10

35950-14A10 REFLEX REFLECTOR ASSY, FR SIDE (CANADA ONLY)

REFLEX REFLECTOR ASSY, FR SIDE (CANADA ONLY)

2 760 ₽
11

35956-33H00 BRACKET, FR SIDE RR, R (CANADA ONLY)

BRACKET, FR SIDE RR, R (CANADA ONLY)

0 ₽
12

35957-33H00 BRACKET, FR SIDE RR, L (CANADA ONLY)

BRACKET, FR SIDE RR, L (CANADA ONLY)

0 ₽
13

09125-05073 SCREW, FR SIDE RR BKT (5X8) (CANADA ONLY)

SCREW, FR SIDE RR BKT (5X8) (CANADA ONLY)

330 ₽
14

08316-1005B NUT, FR SIDE RR (CANADA ONLY)

NUT, FR SIDE RR (CANADA ONLY)

440 ₽
