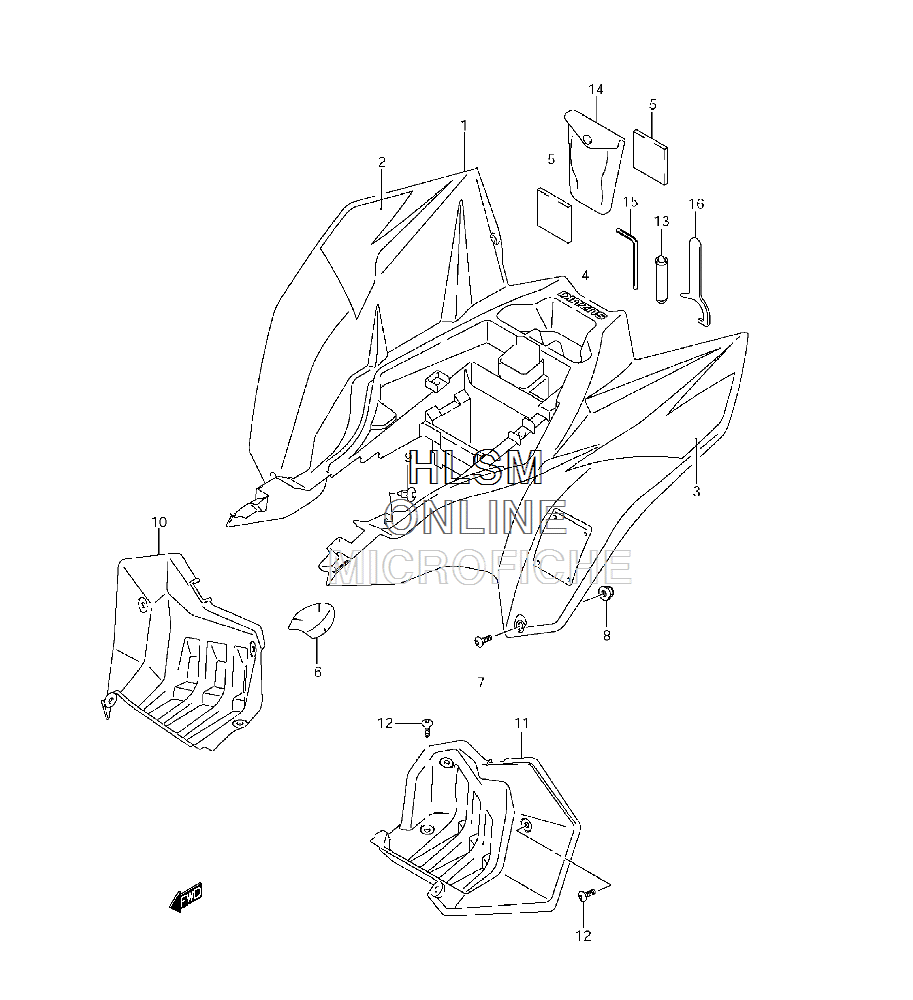

FENDER - REAR для Suzuki LT-Z400 QuadSport Z400 - 2009 года выпуска
-
№АртикулНазвание
-
163111-33H00-30H FENDER, REAR (WHITE)FENDER, REAR (WHITE)
-
163111-33H00-YU1 FENDER, REAR (YELLOW)FENDER, REAR (YELLOW)
-
268175-33H00-FVP TAPE, RIGHT HAND (FOR 30H)TAPE, RIGHT HAND (FOR 30H)
-
268175-33H00-FVR TAPE, RIGHT HAND (FOR YU1)TAPE, RIGHT HAND (FOR YU1)
-
368176-33H00-FVP TAPE, LEFT HAND (FOR 30H)TAPE, LEFT HAND (FOR 30H)
-
368176-33H00-FVR TAPE, LEFT HAND (FOR YU1)TAPE, LEFT HAND (FOR YU1)
-
468721-13A00-8YM EMBLEM (FOR 30H)EMBLEM (FOR 30H)
-
468721-13A00-GY8 EMBLEM (FOR YU1)EMBLEM (FOR YU1)
-
533652-20C00 CUSHIONCUSHION
-
663261-33H00 SHIELDSHIELD
-
709139-06158 BOLTBOLT
-
808319-3106A NUTNUT
-
909409-07333 CLIPCLIP
-
1063331-33H00-291 MUDGUARD, RIGHT HAND (BLACK)MUDGUARD, RIGHT HAND (BLACK)
-
1163341-33H00-291 MUDGUARD, LEFT HAND (BLACK)MUDGUARD, LEFT HAND (BLACK)
-
1209139-06158 BOLTBOLT
-
1396200-18A02 GAUGE ASSY, AIRGAUGE ASSY, AIR
-
1409800-21046 TOOL ASSYTOOL ASSY
-
1509816-00059 HEXAGON, 5HEXAGON, 5
-
1609822-00003 CLAMP, WRENCHCLAMP, WRENCH
