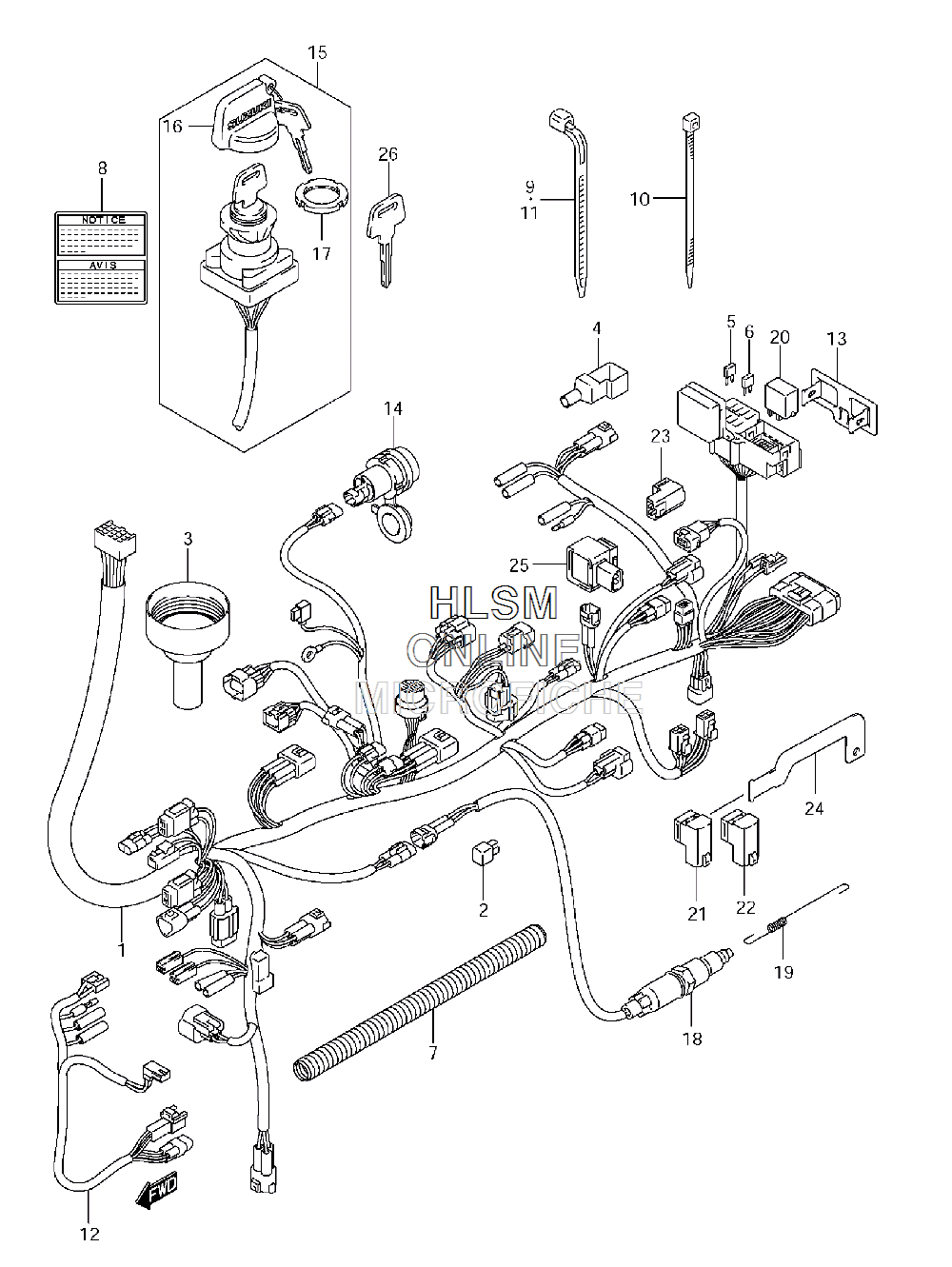

ELECTRICAL - WIRING HARNESS (CANADA) для Suzuki LT-A750X KingQuad 750AXi - 2011 года выпуска
-
№АртикулНазвание
-
136610-31G81 HARNESS, WIRINGHARNESS, WIRING
-
232800-16A00 RECTIFIERRECTIFIER
-
336618-31G00 COVER, SPEEDOCOVER, SPEEDO
-
436618-31G10 COVER, CONNECTORCOVER, CONNECTOR
-
509481-10501 FUSE (10A)FUSE (10A)
-
609481-15501 FUSE (15A)FUSE (15A)
-
736619-31G00 GUIDE, WIRING HARNESSGUIDE, WIRING HARNESS
-
838852-03G20 LABEL, CAUTION MAX AMPLABEL, CAUTION MAX AMP
-
909407-11401 CLAMP (L:95)CLAMP (L:95)
-
909407-14403 CLAMP (L:125)CLAMP (L:125)
-
909407-25401 CLAMP (L:235)CLAMP (L:235)
-
1009407-14407 CLAMP (L:145)CLAMP (L:145)
-
1109407-19401 CLAMP (L:190)CLAMP (L:190)
-
1236857-31G00 WIRE, FRONT BRAKE SW LEADWIRE, FRONT BRAKE SW LEAD
-
1336744-31G00 BRACKET, FUSEBRACKET, FUSE
-
1438850-03G10 TERMINAL, POWER SOURCETERMINAL, POWER SOURCE
-
1537110-31G00 SWITCH ASSY, IGNITION (INC 16-17)SWITCH ASSY, IGNITION (INC 16-17)
-
1637142-19B00 MASCOT, KEYMASCOT, KEY
-
1737112-24500 NUTNUT
-
1837740-38F01 SWITCH ASSY, STOP LAMPSWITCH ASSY, STOP LAMP
-
1909443-06080 SPRINGSPRING
-
2038730-09F00 RELAY, NEUTRAL STARTRELAY, NEUTRAL START
-
2138740-31G01 RELAY ASSY, NEUTRAL STARTRELAY ASSY, NEUTRAL START
-
2238740-31G01 RELAY ASSY, DEF LOCKRELAY ASSY, DEF LOCK
-
2338740-31G01 RELAY ASSY, FUEL PUMPRELAY ASSY, FUEL PUMP
-
2438741-31G20 BRACKET, RELAYBRACKET, RELAY
-
2538750-31G00 RELAY ASSY, DRIVERELAY ASSY, DRIVE
-
2637146-19B00 KEY, BLANK TYPE (C)KEY, BLANK TYPE (C)
-
2637146-19B10 KEY, BLANK TYPE (D)KEY, BLANK TYPE (D)
