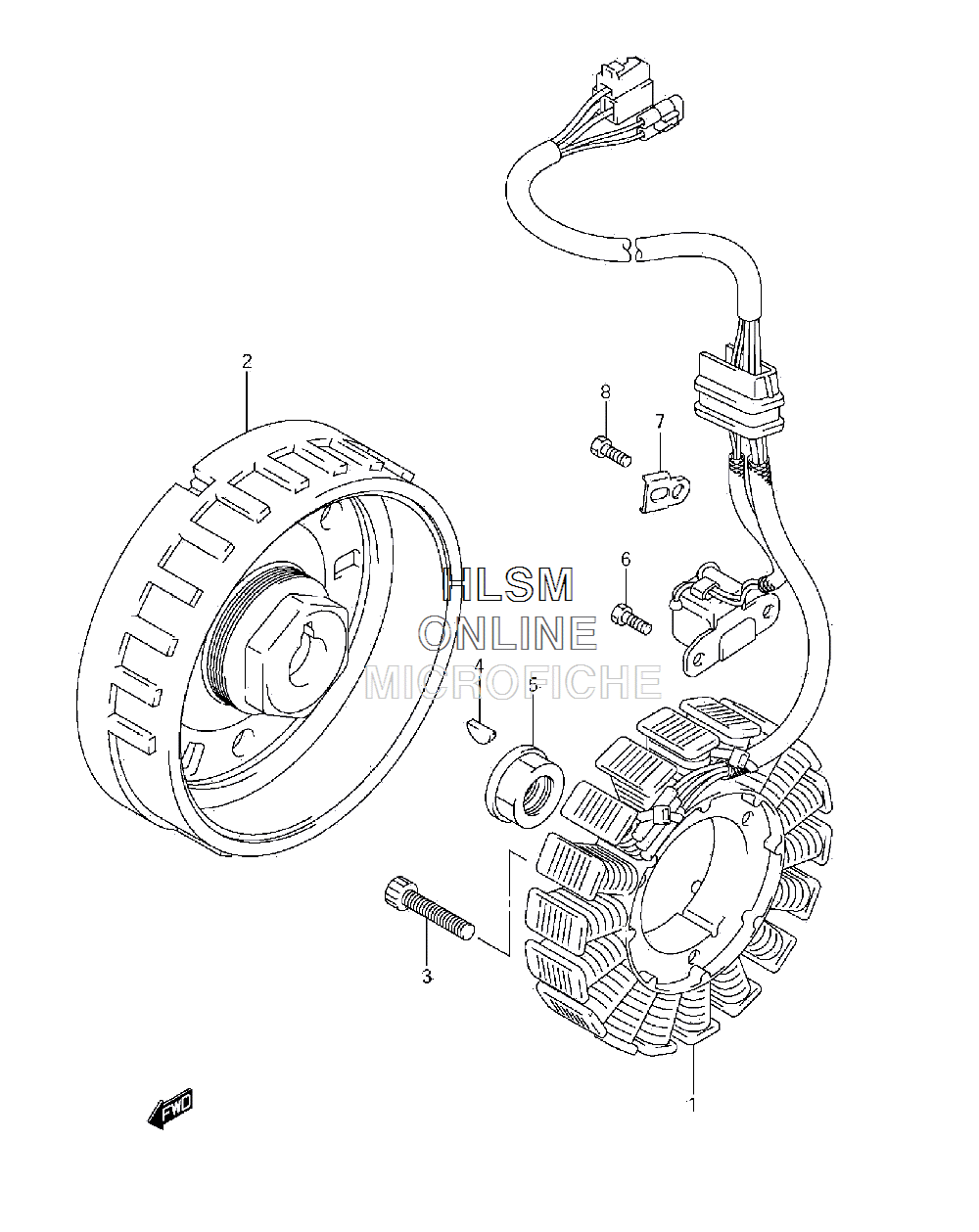

MAGNETO для Suzuki LT-A750X KingQuad 750AXi - 2011 года выпуска
-
№АртикулНазвание
-
132101-31G00 STATOR ASSY, MAGNETOSTATOR ASSY, MAGNETO
-
232102-31G10 ROTOR ASSY, MAGNETOROTOR ASSY, MAGNETO
-
307130-0630B BOLTBOLT
-
408341-31059 KEYKEY
-
531792-11H00 NUT, MAGNETO ROTORNUT, MAGNETO ROTOR
-
609100-05019 BOLT (5X10)BOLT (5X10)
-
731497-45000 CLAMP, MAGNETO LEADCLAMP, MAGNETO LEAD
-
809100-05019 BOLT (5X10)BOLT (5X10)
