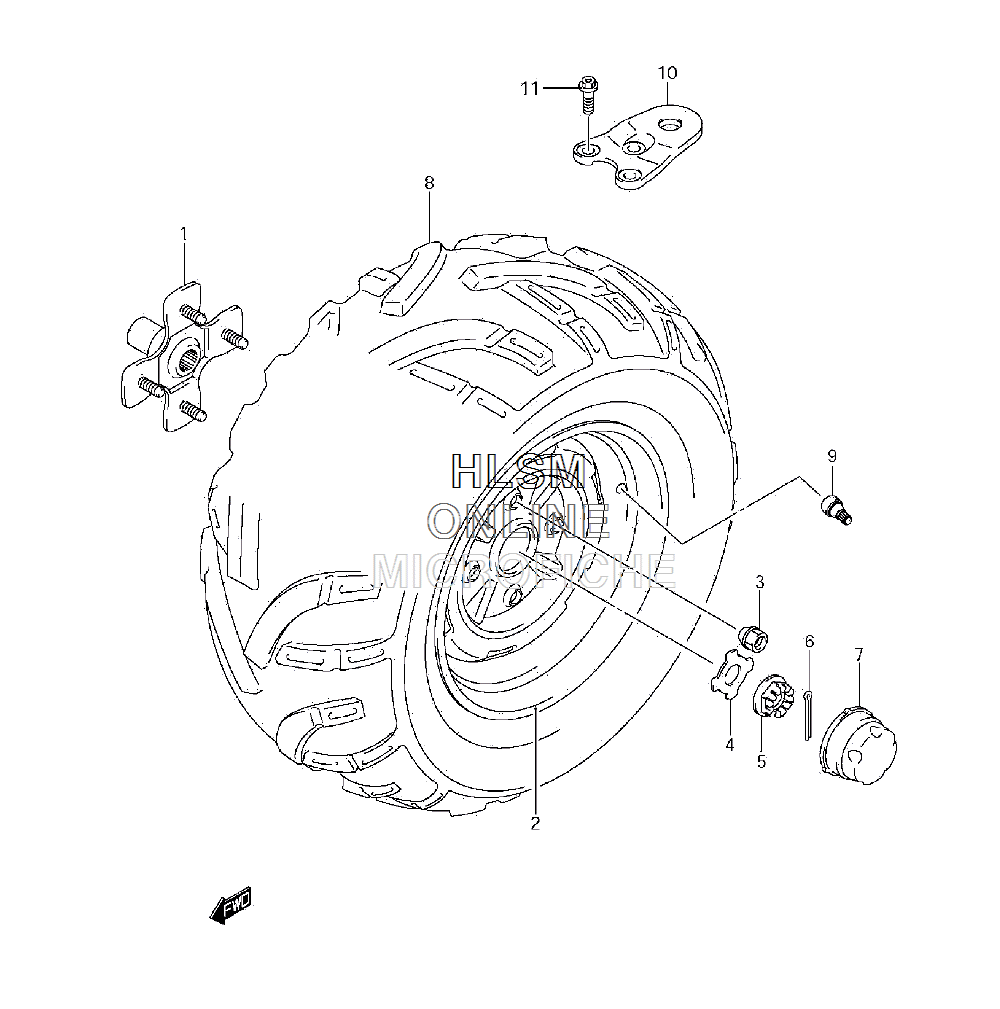

WHEEL - LEFT REAR (CANADA) для Suzuki LT-A750X KingQuad 750AXi - 2011 года выпуска
-
№АртикулНазвание
-
164110-31G01 HUB, REAR WHEEL LEFT HANDHUB, REAR WHEEL LEFT HAND
-
265310-31G50-291 RIM, REAR WHEEL (12X7.5AT) (BLACK GLOSS)RIM, REAR WHEEL (12X7.5AT) (BLACK GLOSS)
-
265310-31G10-YSR RIM, REAR WHEEL (12X7.5AT) (BLACK MAT)RIM, REAR WHEEL (12X7.5AT) (BLACK MAT)
-
309159-10114 NUTNUT
-
464723-03G00 WASHER, HUBWASHER, HUB
-
509141-20008 NUTNUT
-
604111-4035A COTTER PINCOTTER PIN
-
754725-09F01 CAP, WHEEL CENTERCAP, WHEEL CENTER
-
865110-31G10 TIRE, REAR (AT25X10-12)TIRE, REAR (AT25X10-12)
-
943130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
1095211-31G00 PLATE, TRAILER TOWPLATE, TRAILER TOW
-
1109103-10366 BOLT (10X30)BOLT (10X30)
