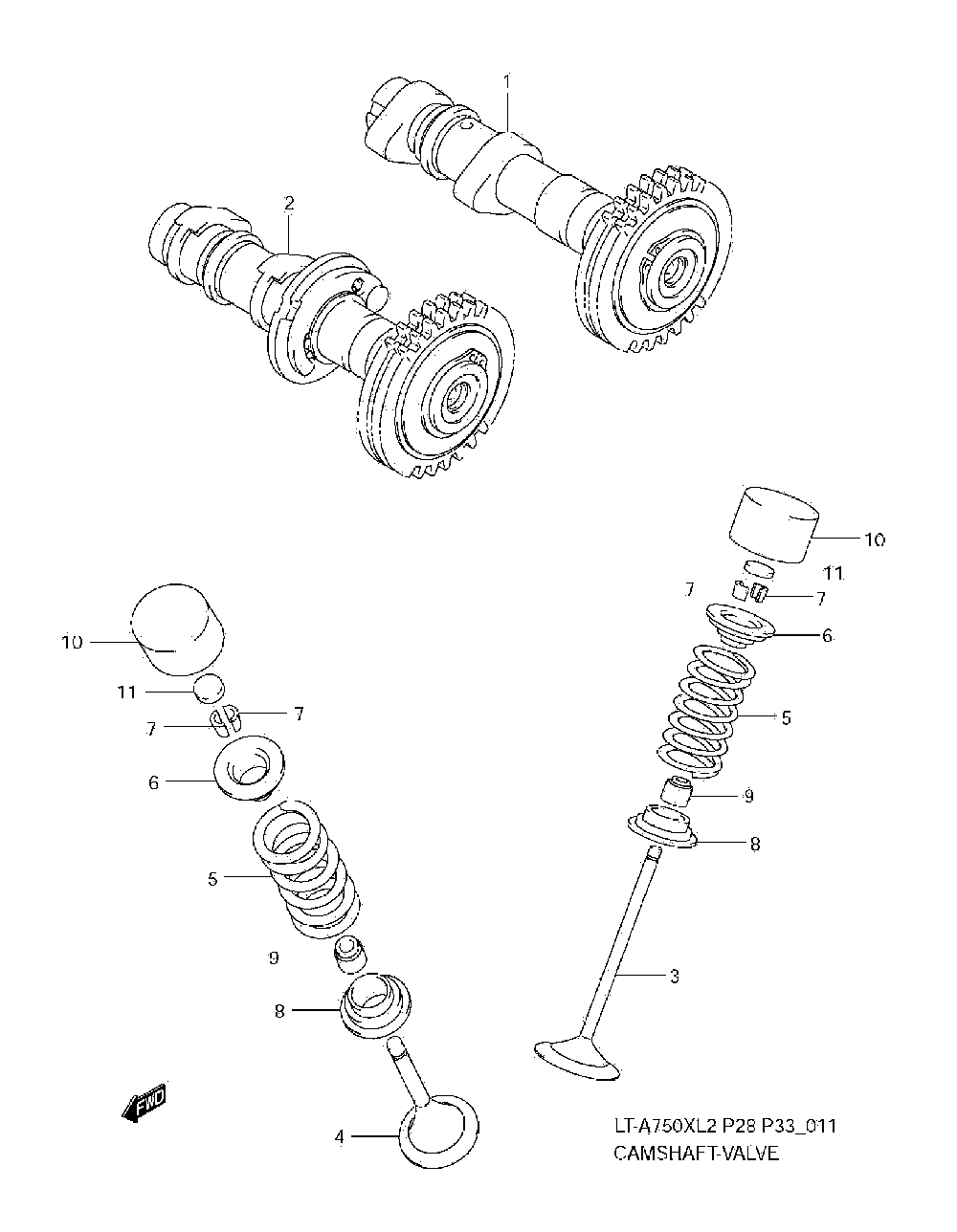

CAMSHAFT W/ VALVES для Suzuki LT-A750XC KingQuad 750 AXi 4x4 Auto - 2012 года выпуска
-
№АртикулНазвание
-
112710-31G00 CAMSHAFT, INTAKECAMSHAFT, INTAKE
-
212720-31G00 CAMSHAFT, EXHAUSTCAMSHAFT, EXHAUST
-
312911-31G00 VALVE, INTAKEVALVE, INTAKE
-
412912-31G00 VALVE, EXHAUSTVALVE, EXHAUST
-
512921-31G00 SPRING, VALVESPRING, VALVE
-
612931-02F10 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
712932-24400 COTTER, VALVECOTTER, VALVE
-
812933-38400 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
909289-05015 OIL SEAL (5.5X11X8.2)OIL SEAL (5.5X11X8.2)
-
1012891-02F00 TAPPETTAPPET
-
1112892-41C00-230 SHIM,TAPPET,T:2.30SHIM,TAPPET,T:2.30
-
1112892-41C00-235 SHIM,TAPPET,T:2.35SHIM,TAPPET,T:2.35
-
1112892-41C00-240 SHIM,TAPPET,T:2.40SHIM,TAPPET,T:2.40
-
1112892-41C00-245 SHIM,TAPPET,T:2.45SHIM,TAPPET,T:2.45
-
1112892-41C00-250 SHIM,TAPPET T:2.50SHIM,TAPPET T:2.50
-
1112892-41C00-255 SHIM,TAPPET T:2.55SHIM,TAPPET T:2.55
-
1112892-41C00-260 SHIM,TAPPET T:2.60SHIM,TAPPET T:2.60
-
1112892-41C00-265 SHIM,TAPPET T:2.65SHIM,TAPPET T:2.65
-
1112892-41C00-270 SHIM,TAPPET T:2.70SHIM,TAPPET T:2.70
-
1112892-41C00-275 SHIM,TAPPET T:2.75SHIM,TAPPET T:2.75
-
1112892-41C00-280 SHIM,TAPPET T:2.80SHIM,TAPPET T:2.80
-
1112892-41C00-285 SHIM,TAPPET T:2.85SHIM,TAPPET T:2.85
-
1112892-41C00-290 SHIM,TAPPET T:2.90SHIM,TAPPET T:2.90
-
1112892-41C00-295 SHIM,TAPPET T:2.95SHIM,TAPPET T:2.95
-
1112892-41C00-300 SHIM,TAPPET T:3,00SHIM,TAPPET T:3,00
-
1112892-41C00-305 SHIM,TAPPET T:3,05SHIM,TAPPET T:3,05
-
1112892-41C00-310 SHIM,TAPPET T:3.10SHIM,TAPPET T:3.10
-
1112892-41C00-315 SHIM,TAPPET T:3.15SHIM,TAPPET T:3.15
-
1112892-41C00-320 SHIM,TAPPET T:3.20SHIM,TAPPET T:3.20
-
1112892-41C00-325 SHIM,TAPPET T:3.25SHIM,TAPPET T:3.25
-
1112892-41C00-330 SHIM,TAPPET T:3.30SHIM,TAPPET T:3.30
-
1112892-41C00-335 SHIM,TAPPET T:3.35SHIM,TAPPET T:3.35
-
1112892-41C00-340 SHIM,TAPPET T:3.40SHIM,TAPPET T:3.40
-
1112892-41C00-345 SHIM,TAPPET T:3.45SHIM,TAPPET T:3.45
-
1112892-41C00-350 SHIM,TAPPET T:3.50SHIM,TAPPET T:3.50
-
1212800-41810 SHIM SET, TAPPET INC.REF.NO.11-5 PCS EACH & NO. 13SHIM SET, TAPPET INC.REF.NO.11-5 PCS EACH & NO. 13
-
1399000-69471 CASE, TAPPET SHIMCASE, TAPPET SHIM
