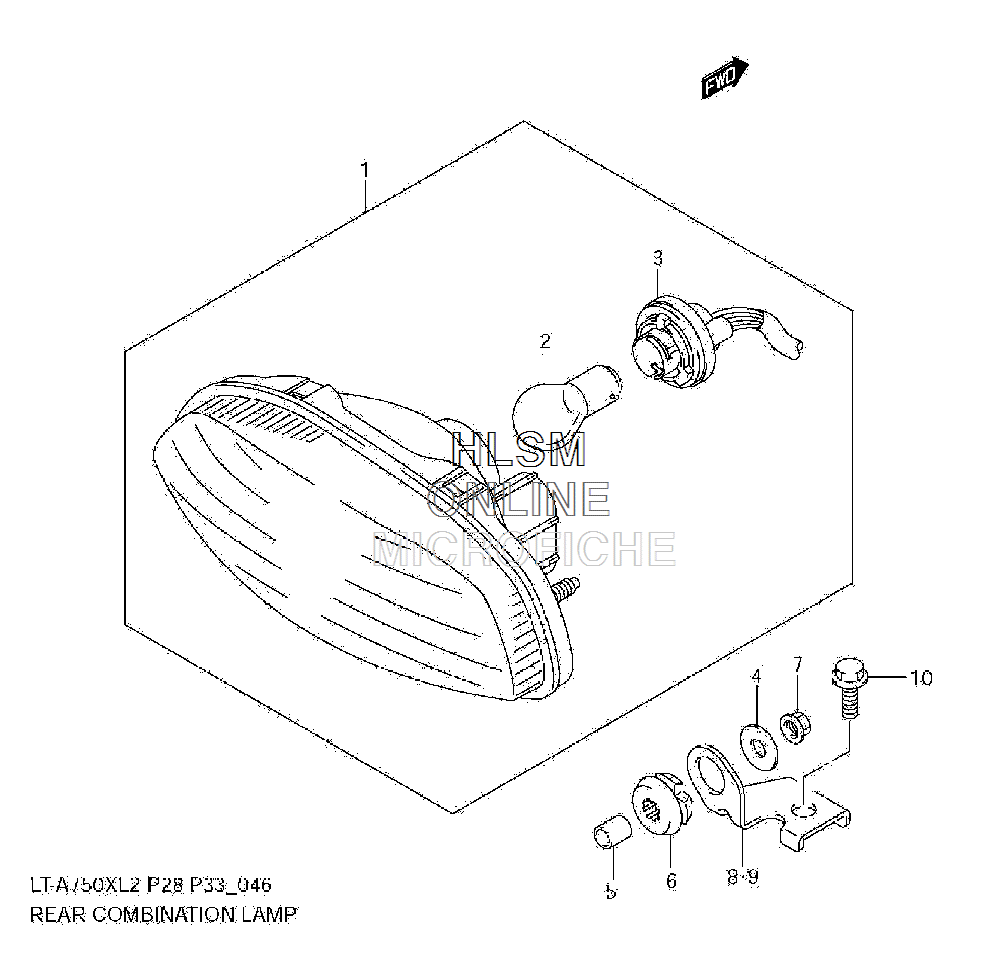

TAILLIGHT ASSY. для Suzuki LT-A750XC KingQuad 750 AXi 4x4 Auto - 2012 года выпуска
-
№АртикулНазвание
-
135710-31G00 LAMP ASSY, REAR COMB (INCL. 2, 3)LAMP ASSY, REAR COMB (INCL. 2, 3)
-
209471-12128 BULB (12V21/5W)BULB (12V21/5W)
-
335718-03G30 SOCKET AND BLUBSOCKET AND BLUB
-
409160-06077 WASHER (6.5X20X1.2)WASHER (6.5X20X1.2)
-
509180-06264 SPACER (6.5X9X10.5)SPACER (6.5X9X10.5)
-
609320-09018 CUSHIONCUSHION
-
708316-1006A NUTNUT
-
835726-31G40 BRACKET, REAR COMB LAMP RIGHT HANDBRACKET, REAR COMB LAMP RIGHT HAND
-
935726-31G50 BRACKET, REAR COMB LAMP LEFT HANDBRACKET, REAR COMB LAMP LEFT HAND
-
1001550-0612A BOLTBOLT
