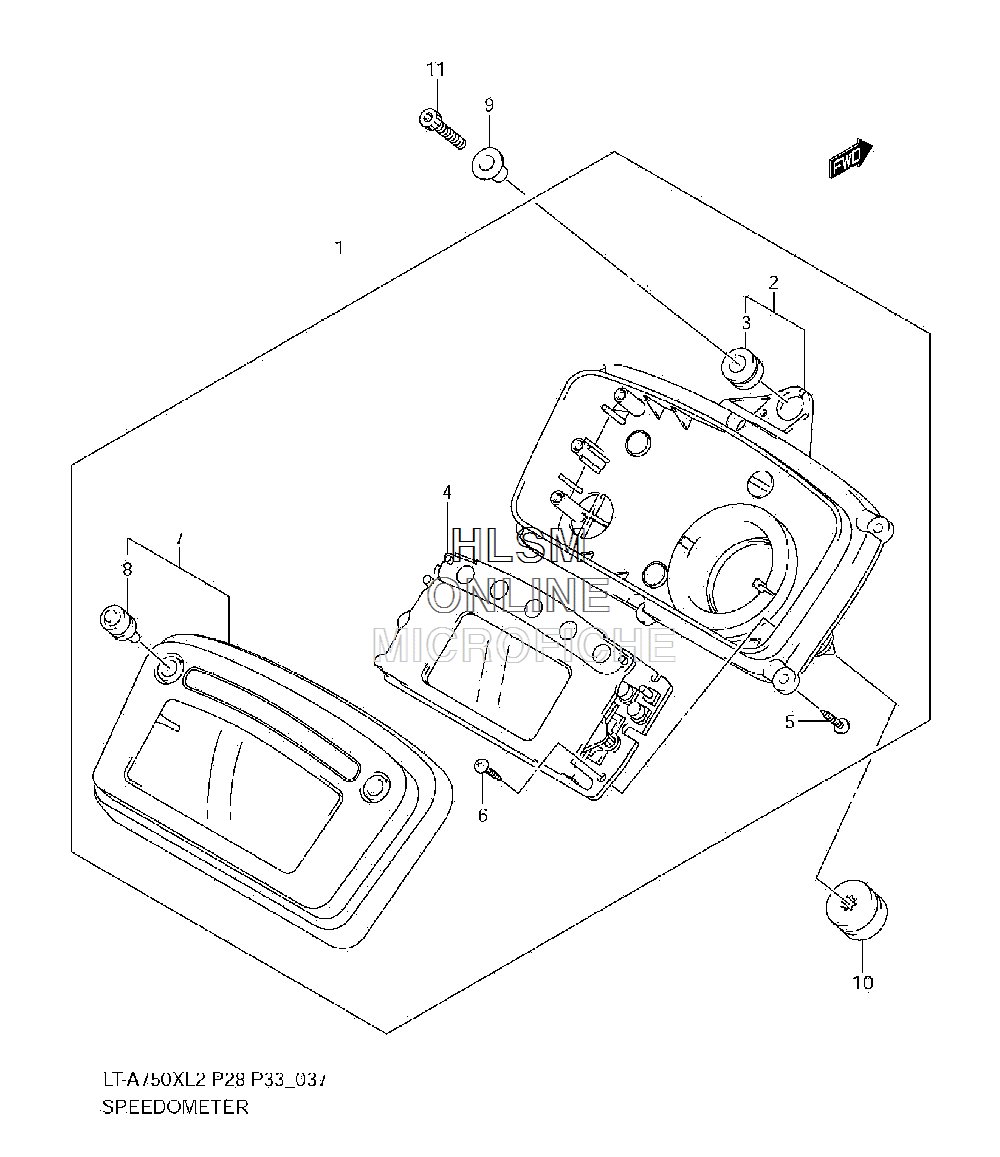

SPEEDOMETER для Suzuki LT-A750XC KingQuad 750 AXi 4x4 Auto - 2012 года выпуска
-
№АртикулНазвание
-
134100-31GA0 SPEEDOMETER ASSY (MILE) (INCL. 2-8)SPEEDOMETER ASSY (MILE) (INCL. 2-8)
-
234111-31GE0 LOWER CASE ASSY (INCL. 3)LOWER CASE ASSY (INCL. 3)
-
334955-03GE0 CUSHION, METERCUSHION, METER
-
434120-31GA0 SPEEDOMETER (MILE)SPEEDOMETER (MILE)
-
534149-03G00 SCREW (3X14)SCREW (3X14)
-
634149-31F10 SCREW (3X14)SCREW (3X14)
-
734150-31GE0 CASE, UPPER (INCL. 8)CASE, UPPER (INCL. 8)
-
834124-03GE0 SWITCH, RUBBERSWITCH, RUBBER
-
934187-47F00 SPACER, SPEEDOMETERSPACER, SPEEDOMETER
-
1034955-13E00 CUSHION, METER NO.1CUSHION, METER NO.1
-
1107130-0520B BOLTBOLT
