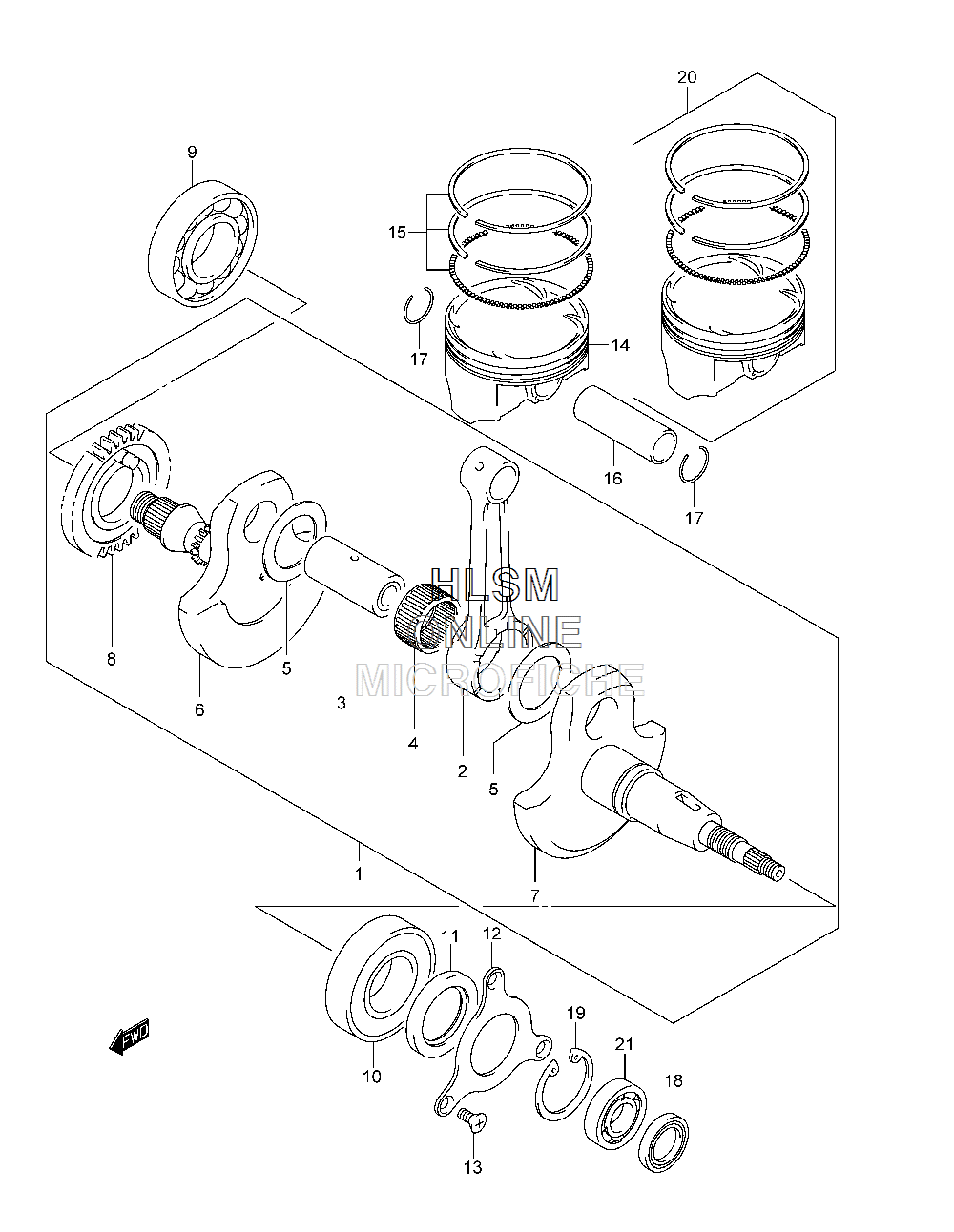

CRANKSHAFT W/ PISTON для Suzuki LT-A400F KingQuad 400ASi (STANDARD COLORS) - 2013 года выпуска
-
№АртикулНазвание
-
112201-38821 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
212161-14D00 ...CONNROD...CONNROD
-
312210-38F00 ...PIN, CRANK...PIN, CRANK
-
409263-34005 ...BEARING (34X43X22)...BEARING (34X43X22)
-
509160-34003 ...WASHER (34X52X1)...WASHER (34X52X1)
-
612220-38F12 ...CRANKSHAFT, RH (NT:24)...CRANKSHAFT, RH (NT:24)
-
712260-38F10 ...CRANKSHAFT, LH...CRANKSHAFT, LH
-
812661-38F01 ...GEAR, CRANK BALANCER DRIVE (NT:37)...GEAR, CRANK BALANCER DRIVE (NT:37)
-
909262-35038 BEARING (35X72X17)BEARING (35X72X17)
-
1009262-35067 BEARING (35X72X17)BEARING (35X72X17)
-
1109282-34001 OIL SEAL (34X52X6)OIL SEAL (34X52X6)
-
1212541-38F00 RETAINER, CRANKSHAFT OIL SEAL (MIDDLE)RETAINER, CRANKSHAFT OIL SEAL (MIDDLE)
-
1309126-06011 SCREW (6X12)SCREW (6X12)
-
1412111-38F21-0F0 PISTONPISTON
-
1512140-38F10 RING SET, PISTON (STD)RING SET, PISTON (STD)
-
1612151-24A00 PIN, PISTONPIN, PISTON
-
1709381-20004 CIRCLIPCIRCLIP
-
1809283-25095 OIL SEAL (25X42X6)OIL SEAL (25X42X6)
-
1908331-41479 CIRCLIPCIRCLIP
-
2012100-38F21-050 PISTON SET (OS:0.5)PISTON SET (OS:0.5)
-
2109262-25006 BEARING (25X47X8)BEARING (25X47X8)
