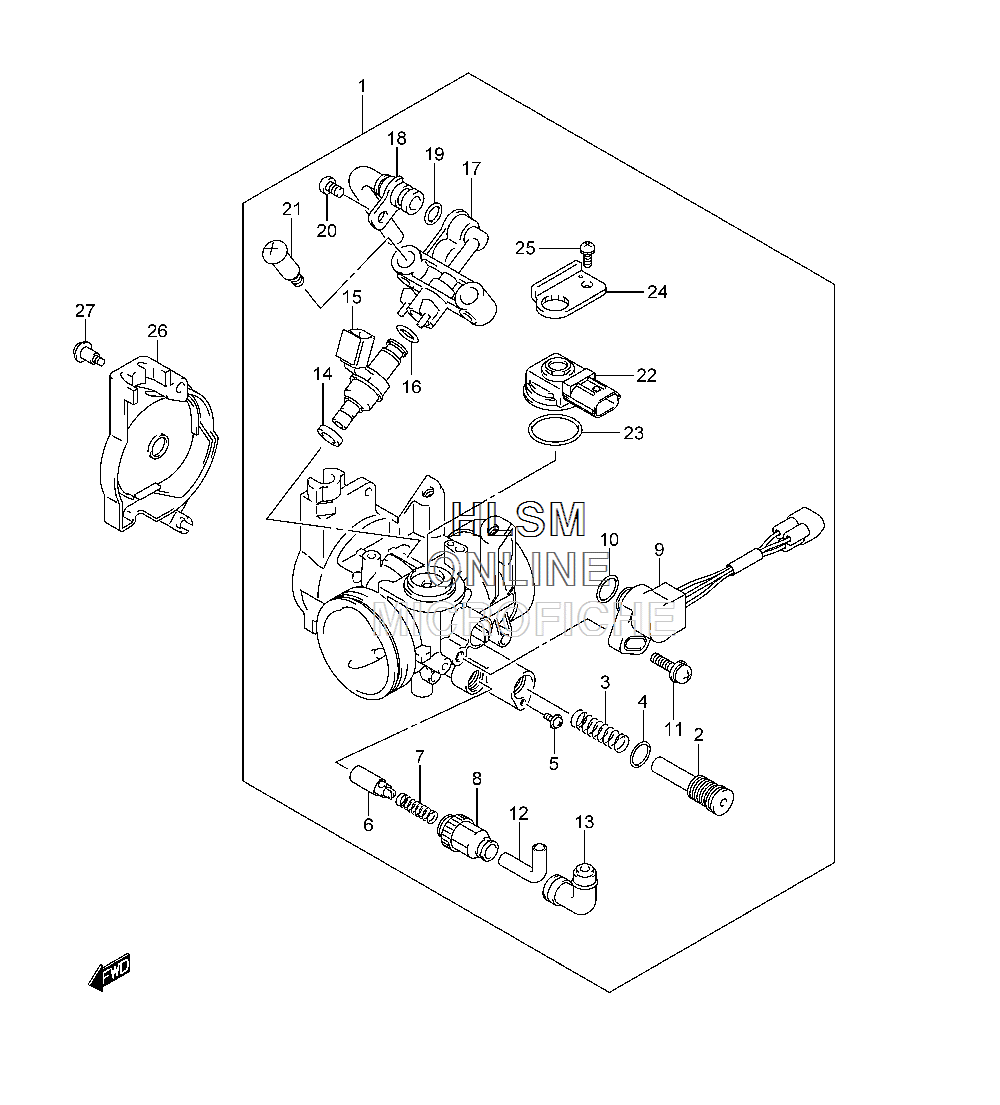

THROTTLE BODY для Suzuki LT-A400F KingQuad 400ASi (STANDARD COLORS) - 2013 года выпуска
-
№АртикулНазвание
-
113400-27H02 BODY ASSY, THROTTLEBODY ASSY, THROTTLE
-
213279-27H00 ...SCREW...SCREW
-
313271-14G00 ...SPRING...SPRING
-
413295-14G00 ...O RING...O RING
-
513601-14G00 ...SCREW...SCREW
-
613411-28H00 ...STARTER VALVE...STARTER VALVE
-
713271-45G00 ...SPRING...SPRING
-
813581-45G00 ...HOLDER, CABLE...HOLDER, CABLE
-
913580-27H11 ...SENSOR ASSY...SENSOR ASSY
-
1013575-40F00 ...O RING...O RING
-
1113605-40F00 ...SCREW...SCREW
-
1213579-45G00 ...GUIDE, CABLE...GUIDE, CABLE
-
1313681-45G00 ...CAP...CAP
-
1415722-21H00 ...RING, SEAL...RING, SEAL
-
1515710-21H00 ...INJECTOR ASSY...INJECTOR ASSY
-
1615721-21H00 ...O RING...O RING
-
1713471-27H00 ...PIPE, FUEL...PIPE, FUEL
-
1813685-27H00 ...JOINT...JOINT
-
1915721-24F00 ...O RING...O RING
-
2013452-45G00 ...SCREW...SCREW
-
2113601-45G00 ...SCREW...SCREW
-
2215620-05H00 ...SENSOR, MAP...SENSOR, MAP
-
2315621-05H00 ...O RING...O RING
-
2415622-33H00 ...PLATE, MAP SENSOR...PLATE, MAP SENSOR
-
2502112-14087 ...SCREW...SCREW
-
2613484-45G00 COVERCOVER
-
2713601-11F00 SCREWSCREW
