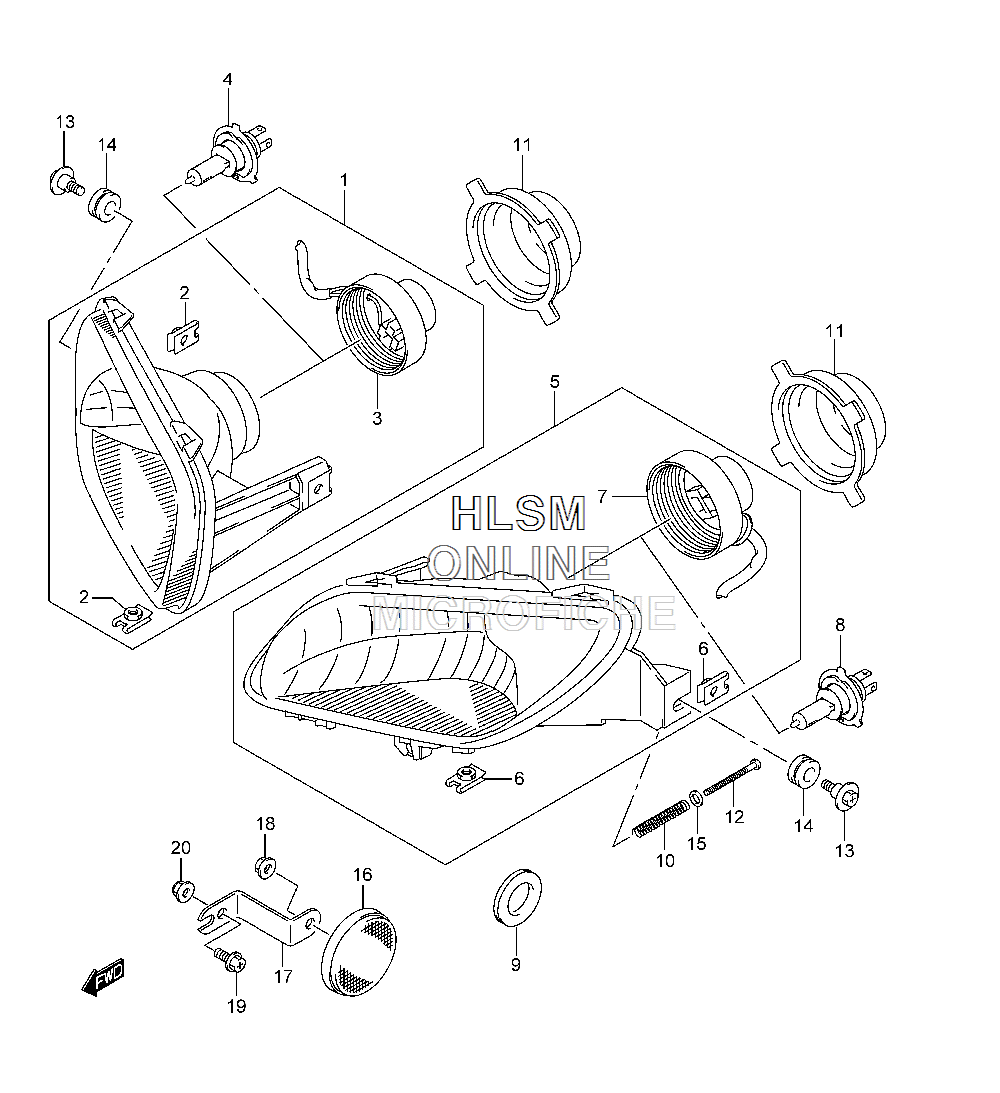

HEADLAMP (CANADA) для Suzuki LT-A400F KingQuad 400ASi (STANDARD COLORS) - 2013 года выпуска
-
№АртикулНазвание
-
135100-31G92-999 HEADLAMP ASSY, RHHEADLAMP ASSY, RH
-
235157-31G90 ...NUT (M6)...NUT (M6)
-
335171-31GM1 ...CORD ASSY, RH...CORD ASSY, RH
-
409471-12101 BULB (12V,35/35W)BULB (12V,35/35W)
-
535300-31G92-999 HEADLAMP ASSY, LHHEADLAMP ASSY, LH
-
635157-31G90 ...NUT (M6)...NUT (M6)
-
735171-31GH1 ...CORD ASSY, LH...CORD ASSY, LH
-
809471-12101 BULB (12V,35/35W)BULB (12V,35/35W)
-
909308-07011 GROMMETGROMMET
-
1035154-31300 SPRING, HEADLAMP ADJUSTSPRING, HEADLAMP ADJUST
-
1135174-31G00 COVER, HEADLAMP HOUSINGCOVER, HEADLAMP HOUSING
-
1209125-04031 SCREW (4X50)SCREW (4X50)
-
1309139-06118 SCREW (6X22.5)SCREW (6X22.5)
-
1409320-10501 CUSHIONCUSHION
-
1508322-0104A WASHERWASHER
-
1635950-14A11 REFLEX-REFLECTOR ASSY, FRONTREFLEX-REFLECTOR ASSY, FRONT
-
1735956-27H00 BRACKET, FRONT SIDE RRBRACKET, FRONT SIDE RR
-
1808316-1005B NUTNUT
-
1902162-0516B SCREWSCREW
-
2008319-3105B NUTNUT
