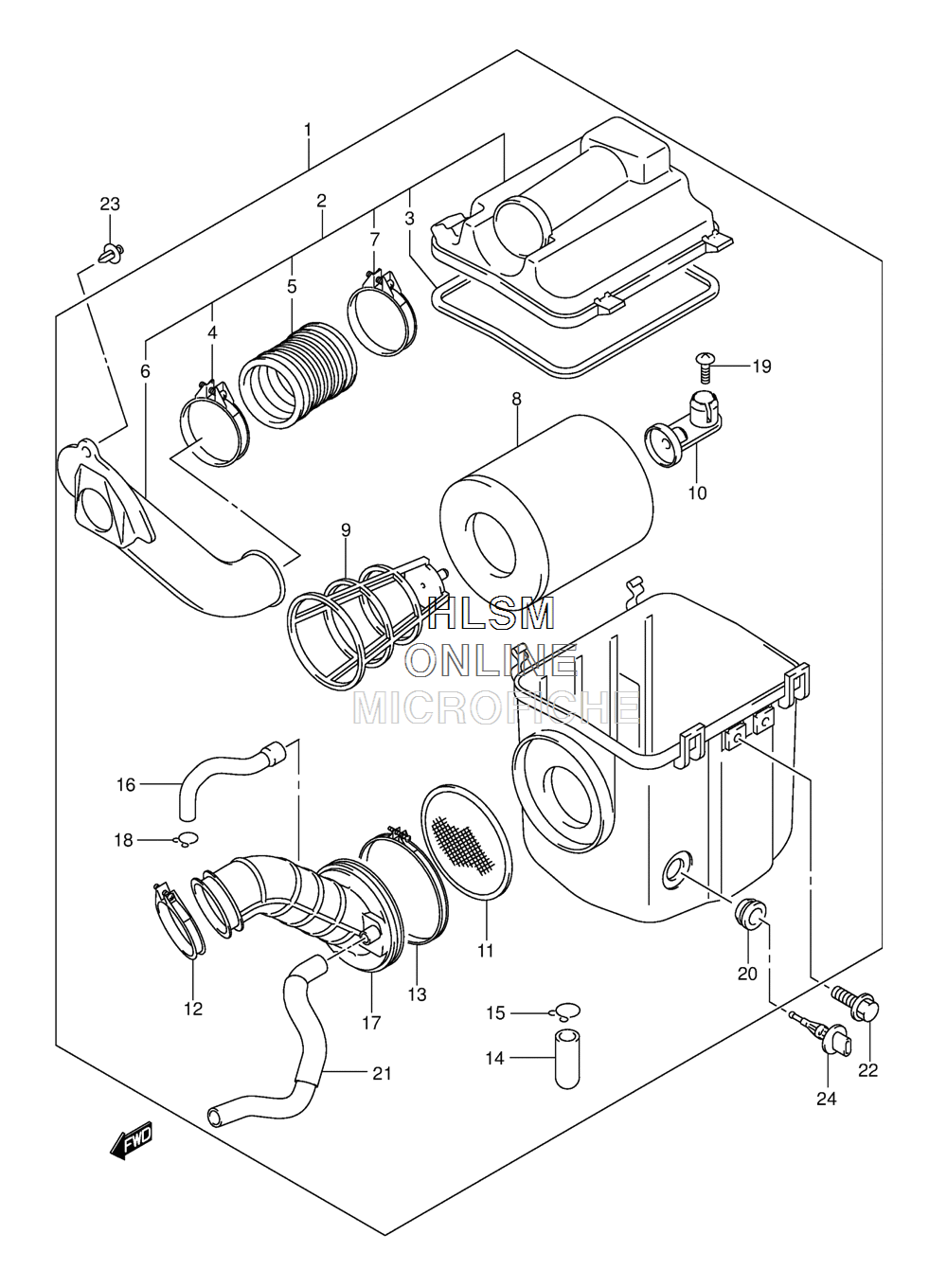

AIR CLEANER для Suzuki LT-F400F KingQuad 400FSi (STANDARD COLORS) - 2014 года выпуска
-
№АртикулНазвание
-
113700-27H40 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213890-27H00 INLET, AIR CLEANERINLET, AIR CLEANER
-
313746-03G00 GASKETGASKET
-
413826-38F20 CLAMPCLAMP
-
513891-03G00 JOINT, INLETJOINT, INLET
-
613896-27H00 DUCT, INLETDUCT, INLET
-
709402-60208 CLAMPCLAMP
-
813780-07G00 FILTERFILTER
-
913791-03G00 HOLDERHOLDER
-
1013792-03G00 STOPPER, HOLDERSTOPPER, HOLDER
-
1113810-03G00 TRAP, FLAMETRAP, FLAME
-
1213826-27H20 CLAMPCLAMP
-
1313826-38F10 CLAMP, OUTLET TUBECLAMP, OUTLET TUBE
-
1413878-09F00 PLUG, DRAINPLUG, DRAIN
-
1509401-14101 CLIPCLIP
-
1613853-27H20 TUBE, BREATHERTUBE, BREATHER
-
1713881-27H40 TUBE, OUTLETTUBE, OUTLET
-
1809401-14101 CLIPCLIP
-
1902142-0616A SCREWSCREW
-
2013655-77E00 GROMMET, AIR TEMP SENSORGROMMET, AIR TEMP SENSOR
-
2113857-27H40 TUBE, 2ND AIRTUBE, 2ND AIR
-
2209103-06285 BOLT (6X12)BOLT (6X12)
-
2309409-07333 CLIPCLIP
-
2413650-52G00 SENSOR, AIR TEMPSENSOR, AIR TEMP
