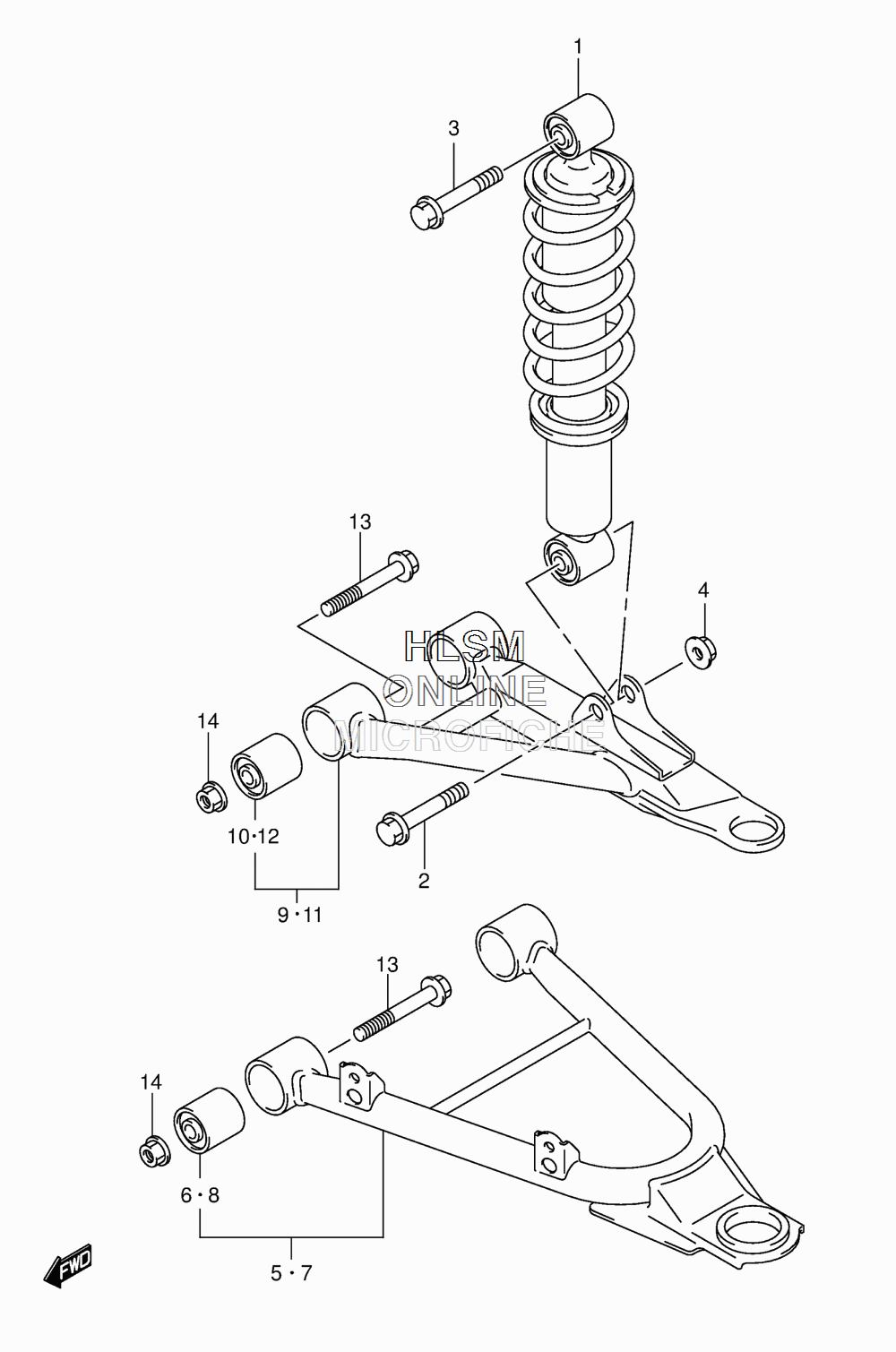

SUSPENSION - FRONT ARM W/ SHOCK для Suzuki LT-F400F KingQuad 400FSi (STANDARD COLORS) - 2014 года выпуска
-
№АртикулНазвание
-
152100-27H10-019 ABSORBER ASSY, FRONT SHOCK (BLACK)ABSORBER ASSY, FRONT SHOCK (BLACK)
-
209103-10126 BOLT (10X48)BOLT (10X48)
-
309103-10352 BOLT (10X48)BOLT (10X48)
-
408319-3110A NUTNUT
-
552410-27820 ARM SET, SUSPENSION LOWER RIGHT HANDARM SET, SUSPENSION LOWER RIGHT HAND
-
609319-10055 BUSHBUSH
-
752420-27820 ARM SET, SUSPENSION LOWER LEFT HANDARM SET, SUSPENSION LOWER LEFT HAND
-
809319-10055 BUSHBUSH
-
952430-27810 ARM SET, SUSPENSION UPPER RIGHT HANDARM SET, SUSPENSION UPPER RIGHT HAND
-
1009319-10055 BUSHBUSH
-
1152440-27810 ARM SET, SUSPENSION UPPER LEFT HANDARM SET, SUSPENSION UPPER LEFT HAND
-
1209319-10055 BUSHBUSH
-
1309103-10301 BOLT (10X60)BOLT (10X60)
-
1409159-10115 NUTNUT
